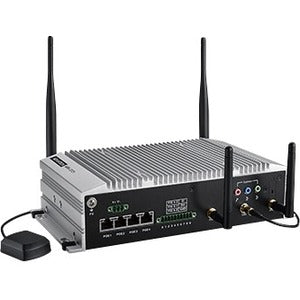

Advantech Outdoor NVR w/4 PoE Ports Intel Atom E3845 SoC Fanless Box PC

The Advantech Outdoor NVR with 4 PoE ports is engineered to deliver reliable, edge-based surveillance in challenging outdoor environments. This fanless box PC combines rugged hardware with a compact form factor, providing a streamlined solution for video recording, camera management, and local monitoring. Built around the Intel® Atom™ E3845 quad-core SoC, it delivers efficient performance for mainstream IP cameras while staying quiet and energy-conscious—perfect for outdoor installations where reliability and low maintenance matter most.

• 4 PoE ports for direct connection to IP cameras, simplifying cabling and reducing the need for additional power outlets.
• Intel® Atom™ E3845 Quad Core 1.91 GHz SoC delivering responsive edge processing for real-time recording, playback, and basic analytics.
• Fanless, outdoor-ready enclosure designed to endure harsh conditions while delivering quiet operation and low thermal load.
• 3KV isolation for DI/DO I/O with 6 digital inputs and 2 digital outputs, enabling robust sensor integration, alarms, and control across diverse surveillance deployments.
• Wide power input from 9 to 36 VDC and HDMI video output, offering flexible power options and convenient on-site monitoring without needing external displays.

Technical Details of Advantech Outdoor NVR w/4 PoE Ports Intel Atom E3845 SoC Fanless Box PC

• CPU: Intel® Atom™ E3845 Quad Core, 1.91 GHz
• SoC: Intel® Atom™ E3845
• PoE ports: 4 x PoE ports to power and manage mainstream IP cameras
• Video output: HDMI interface for local display and immediate monitoring
• DI/DO: 6 DI and 2 DO with 3KV isolation to support diverse I/O sensing and control
• Power input: 9-36 VDC wide input for compatibility with industrial power sources
• Enclosure: Fanless outdoor box PC optimized for rugged environments and continuous operation
• Connectivity: Supports diversity communication abilities including WWAN and WLAN options

How to Install Advantech Outdoor NVR w/4 PoE Ports Intel Atom E3845 SoC Fanless Box PC

• Plan the installation: choose a sheltered location that minimizes direct exposure to elements while allowing adequate ventilation for the unit’s cooling needs, and determine an appropriate mounting method (wall or DIN rail) compatible with the enclosure.
• Mount the NVR: securely attach the fanless box PC using the supplied mounting brackets or hardware, ensuring it is level and free from obstructions that could impede heat dissipation or cable routing.
• Connect power: supply the device with a stable 9-36 VDC power source. Use appropriate connectors and verify polarity to protect the device and sustain reliable operation in varying outdoor conditions.
• Attach cameras: connect up to four IP cameras directly to the four PoE ports. Use cameras that are compatible with standard IP surveillance protocols for seamless streaming and recording.
• Configure display and initial access: connect an HDMI cable from the NVR’s HDMI output to a monitor or display for local configuration and live-view testing. Power on the unit to begin setup.
• Establish networking: connect the NVR to your local network via Ethernet. Access the user interface to configure cameras, channels, recording schedules, motion events, and storage options as needed.
• Enable wireless options (if applicable): if WWAN or WLAN modules are part of your deployment, install necessary SIM cards or enable wireless adapters and configure network profiles to ensure reliable remote access and backups.
• Security and maintenance: set strong admin credentials, enable automatic firmware updates if available, and configure remote access securely. Regularly inspect outdoor cabling and power connections to maintain reliability in fluctuating weather.

Frequently asked questions

• Q: How many cameras can I connect directly to the NVR?

  A: The unit provides 4 PoE ports for direct connection to IP cameras, enabling up to four cameras to be powered and streamed simultaneously. Additional cameras can be managed through the network if supported by the NVR software.

• Q: Is the Advantech Outdoor NVR fanless, and what does that mean for installation?

  A: Yes. The fanless design minimizes moving parts, reduces noise, and enhances reliability in outdoor environments. It also helps prevent dust intrusion in environments where air filtration is challenging, though proper sealing and ventilation around the installation site are still important.

• Q: What power range does this NVR accept?

  A: The device supports a wide input voltage of 9-36 VDC, offering flexibility to connect to industrial power provisions and varying power sources often found in outdoor deployments.

• Q: Does the NVR support HDMI output?

  A: Yes. The HDMI output allows local monitoring and playback on a connected display, making it easy to review video feeds without a network client.

• Q: What kind of I/O protection does it include?

  A: The unit features 3KV isolation on the DI/DO I/O, enhancing protection against surges and grounding issues when integrating external sensors, alarms, or other field devices.

• Q: Can I use WWAN or WLAN with this NVR?

  A: The system offers diversity communication abilities that support optional WWAN and WLAN connectivity, enabling remote monitoring and redundancy in locations with limited wired options.

• Q: What kind of environments is this NVR designed for?

  A: It is designed as an outdoor, rugged box PC with a heat-efficient, fanless design, suitable for surveillance deployments where continuous operation, durability, and low maintenance are essential.
