Advantech RS-232 Data Taps

The Advantech RS-232 Data Taps are essential tools for professionals and enthusiasts alike who are looking to monitor serial data streams with precision and ease. These innovative devices are designed to allow users to seamlessly tap into serial connections without disrupting the flow of data, thereby enabling continuous monitoring of communication between devices. With unique features such as configurable DIP switches and transparent connections, the Advantech RS-232 Data Taps become invaluable tools for debugging and data logging applications.

• Effortless Monitoring: The Advantech RS-232 Data Taps allow users to tap into an RS-232 port and monitor the data being transmitted between two other RS-232 devices. This ensures that you never miss critical information during communication.
• Flexible Configuration: The inclusion of DIP switches means that users can easily set programming to monitor the main Transmit and Receive lines either individually or together, offering versatility in how data is monitored.
• DTE and DCE Compatibility: Users can select between monitoring the DCE or DTE port, catering to different connectivity requirements. This adaptability ensures that the data tap can be seamlessly integrated into various setups without hassle.

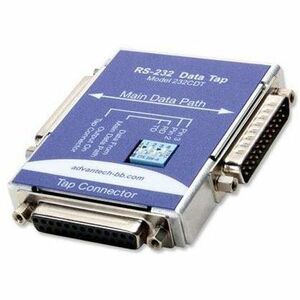

• Straight-Through Connection: The model BB-232CDT features a male RS-232 connector on the top and a female RS-232 connector on the bottom, designed for a straight-through connection, pin for pin, making installation straightforward and user-friendly.
• No External Power Needed: The Advantech RS-232 Data Taps operate without the need for external power, simplifying the setup process and allowing for more portable monitoring solutions in various environments.

Technical Details of the Product

• Model Numbers: BB-9PCDT, BB-232CDT
• Connector Types: DTE (Male), DCE and TAP (Female)
• Configuration: DIP switches for monitoring Transmit and Receive lines
• Power Requirement: None (operates without external power)
• Compliance: CE / RoHS-3 certified

How to Install

Installing the Advantech RS-232 Data Taps is an easy and straightforward process:

1. Identify the RS-232 data stream you wish to monitor.
2. Connect the male RS-232 connector of the tap into the port of the transmitting device (DTE).
3. Connect the female RS-232 connector to the receiving device (DCE).
4. Utilize the DIP switches to configure the monitoring settings according to your requirements.
5. Once connected, you can begin monitoring the data stream without any additional setup.

Frequently Asked Questions

1. Can I monitor both Transmit and Receive lines simultaneously? Yes, utilizing the DIP switches, you can configure the device to monitor both lines together or individually, depending on your needs.
2. Do I need any additional software to use the data tap? No additional software is required. The device operates transparently, allowing you to monitor data directly from connected devices.
3. Is the Advantech RS-232 Data Tap compatible with all RS-232 devices? Yes, as long as the devices comply with RS-232 standards, the data taps are compatible across various devices.
4. Can I leave the data tap in place permanently? Absolutely! The Advantech RS-232 Data Taps are designed for permanent installation, allowing continuous monitoring without disruption.
5. What do I do if the data tap is not working correctly? Ensure that all connections are secure, the DIP switches are correctly set, and that both connected devices are functioning properly. If issues persist, consult the user manual or reach out to customer support for assistance.
