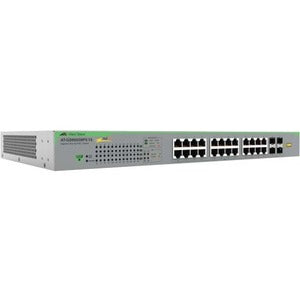

Allied Telesis GS950/28PS V2 Ethernet Switch

The Allied Telesis GS950/28PS V2 Gigabit PoE+ WebSmart switch features 24 10/100/1000T ports and four SFP ports, delivering up to 30 Watts per port (PoE+) to support video surveillance cameras, wireless access points, IP phones and other PoE powered devices. PoE+ eliminates the need for separate power cabling and minimizes the clutter of power supplies and adapters for simplified deployment. The GS950/28PS V2 is the ideal cost-effective solution for small businesses, classrooms, larger retail stores, healthcare clinics and spas.

• VLAN: IEEE 802.1Q tagged - Port-based - Up to 256 groups
• Quality of Service Classification: IEEE 802.1p tagging - Port-based priority - Four priority queues per port
• IP Multicast Support (IPv4) - IGMP snooping (v1/v2) - Static multicast group (up to 256) - Spanning-Tree, IEEE 802.1d/w/s
• IEEE 802.3ad Link Aggregation: Manual - LACP
• IEEE 802.1x Port-based, MAC-based and Network Access Control: Local authentication server (MD5 only) - Remote authentication through RADIUS - Dynamic VLAN assignment - RADIUS Client
• Other: IEEE 802.3x flow control or HOL blocking prevention ( when flow control is off) - Port mirroring - Destination MAC filtering - Ingress/egress rate limiting - Broadcast storming control - 100 FX SFP support - Jumbo Frames - up to 10K
• Management Features: SSH - Telnet - Web-based configuration - CLI configuration - SNMP trap view - LLDP - Firmware upgrade by FTP and HTTP - Configuration backup/restore by FTP and HTTP - Factory reset - Password access control and restricted - IP access list - SNMPv1/v2c/v3 - DHCP client - Syslog support - System time configuration (SNTP, manual) - Statistics Charts in Web
• MIBs : RFC 1213 MIB-II - RFC 1643 Ethernet MIB - RFC 1493 Bridge MIB - RFC 2131 DHCP client - Private Enterprise MIB (Allied Telesis provides the spec)
• RMON Groups (1, 2, 3, 9): Stats - History - Alarms - Events
• ACL: Support (number of entries 188)
