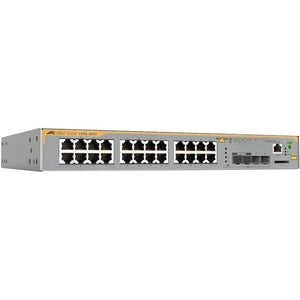

Allied Telesis L3 Switch: 24 x 10/100/1000T Ports + 2 x 100/1000X SFP Ports

The Allied Telesis x230 Series Layer 3 switches deliver a robust and scalable access solution for today’s networks, offering Gigabit connectivity to the desktop while enabling smart edge routing and traffic control. With 24 copper 10/100/1000T ports and 2 x 100/1000X SFP fiber uplinks, this switch accommodates dense workstation deployments and flexible uplink configurations to distribution layers or core campus networks. PoE+ capable models provide a streamlined option for powering wireless access points, IP cameras, and other PoE devices directly from the switch, reducing clutter and simplifying deployment. Built to meet the needs of small to mid-size enterprises, branch offices, and campus edge environments, the x230 Series blends performance, manageability, and value into a compact, reliable solution. Whether you’re modernizing an existing network or designing a new one, this L3 switch supports efficient traffic routing, strong security, and scalable growth as your organization expands.

• Versatile port mix for flexible layouts: 24 x 10/100/1000T interfaces paired with 2 x 100/1000X SFP fiber uplinks give you abundant copper connections for desktops and scalable fiber paths to distribution or core layers.
• Layer 3 routing at the edge: Designed for efficient inter-VLAN routing, the switch handles routing tasks at the access layer, reducing latency and backhaul traffic while enabling policy-based routing and streamlined network segmentation.
• PoE+ ready on compatible models: PoE+ support powers compatible wireless APs, IP cameras, and other devices directly from the switch, simplifying deployment in conference rooms, hallways, and outdoor-safe zones where outlets are scarce.
• Enterprise-grade management and security: Access and monitor the network via a web-based GUI or CLI, with features such as ACLs, QoS, and secure management to protect data and prioritize critical applications.
• Ideal for SMBs and branch networks: The x230 L3 switch is purpose-built for access-layer deployments that demand reliable Gigabit performance, easy provisioning, and scalable uplinks to support growing device density and traffic.

Technical Details of Allied Telesis L3 Switch with 24 x 10/100/1000T Ports and 2 x 100/1000X SFP Ports

• Product family: Allied Telesis x230 Series Layer 3 switch
• Port configuration: 24 x 10/100/1000T RJ-45 ports and 2 x 100/1000X SFP fiber uplink ports
• PoE+ capability: PoE+ supported on PoE+ variants within the x230 family; check the exact SKU for power budget and PoE features
• Layer 3 features: Edge routing capabilities with inter-VLAN routing, basic routing protocols, and access control lists for traffic segmentation and security
• Management interfaces: Web-based graphical user interface (GUI), command-line interface (CLI), and SNMP for centralized management and monitoring
• Deployment scenarios: Suited for access-layer deployments in small to mid-size enterprises, branch offices, and campus edge networks seeking reliable Gigabit access with flexible uplink options

how to install Allied Telesis L3 Switch

To install and configure this switch effectively, begin with a standard, methodical approach that ensures safe operation and reliable connectivity. Start by verifying the box contents against the packing list and inspecting the device for any shipping damage. Install the switch in a suitable location—either a standard 19-inch rack or a stable table/desk with adequate ventilation and clearance for cable management. Connect the device to a power source and power it on. Prepare a management station (laptop or PC) with network access to the switch’s management interfaces. Access the switch via the web GUI or connect a console cable if required for initial setup. Assign a management IP address on a dedicated management VLAN and secure access with strong administrator credentials. Next, configure the basic network parameters: define VLANs as needed, assign ports to appropriate VLANs, enable inter-VLAN routing on the L3 device, and establish any necessary static routes or routing protocols. If you plan to use PoE+, confirm the SKU supports PoE+ and configure PoE settings to allocate power to connected devices within the switch’s power budget. Enable QoS for critical applications like voice, video, or real-time data, and apply security features such as access control lists (ACLs) and secure management access. Finally, save the configuration, install device firmware updates if available, and test connectivity between desktops, wireless APs, IP cameras, and uplink ports. Maintain a scheduled routine for backups and firmware maintenance to ensure long-term reliability.

Frequently asked questions

• What ports does this switch provide? It includes 24 x 10/100/1000T RJ-45 ports for copper Ethernet connectivity and 2 x 100/1000X SFP fiber uplink ports for flexible fiber connections.
• Does it support PoE+? PoE+ is available on PoE+ variants within the Allied Telesis x230 Series; please verify the exact SKU to confirm power budget and PoE capabilities.
• Can this switch perform Layer 3 routing? Yes, the x230 Series includes Layer 3 features that enable inter-VLAN routing and edge routing to optimize traffic flow at the network’s edge.
• How is the switch managed? Management is available through a user-friendly web-based GUI and a CLI, with SNMP support for centralized monitoring and integration with network management systems.
• What deployment scenarios is it best suited for? It is ideal for SMBs, branch offices, and campus edge environments that require reliable Gigabit access, flexible uplinks, and scalable management.
• Are fiber uplinks supported? Yes, the switch provides 2 x 100/1000X SFP fiber uplinks to connect to distribution or core networks, enabling long-distance connections and diverse topology options.
