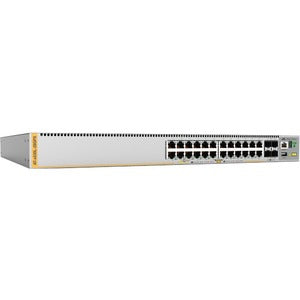

Allied Telesis X530L-28GPX Layer 3 Switch

The Allied Telesis X530L-28GPX Layer 3 Switch is a compact, rack-mountable, enterprise-grade solution designed to power growing networks with dependable performance and sophisticated management. This TAA-compliant switch blends wealth of features in a 1U footprint, delivering a capable blend of Layer 3 routing, QoS, security, and manageability that SMBs and mid-market data centers demand. With 24 PoE+ ports for powering access points, IP cameras, VoIP phones, and other devices, plus four dedicated 10G uplinks for high-speed connections to core switches and data centers, the X530L-28GPX is built to handle bandwidth-hungry applications while maintaining ease of deployment. Eight multi-gigabit ports on the device provide flexible speed options for Wi-Fi 6 deployments and future upgrades, ensuring you can scale without replacing the core infrastructure. Built on AlliedWare Plus Enterprise-class operating system, this switch emphasizes reliability, security, and straightforward administration, so IT teams can focus on delivering dependable network services to users and devices across campus, office floors, and distributed sites. Whether you’re modernizing a surveillance system, expanding a wireless network, or consolidating campus networks, the X530L-28GPX delivers the performance, control, and scalability you need.

• High-performance Layer 3 switching: Enterprise-grade routing capabilities, VLAN segmentation, ACLs, and QoS for precise traffic control and efficient use of available bandwidth.
• Powerful PoE+ support: 24 PoE+ ports provide power to IP phones, cameras, and wireless access points, simplifying deployment and reducing the need for additional power outlets.
• Versatile uplinks: Four 10G uplinks deliver fast, reliable connectivity to core switches, storage, and data centers, enabling scalable network topologies.
• Flexible multi-gigabit ports: Eight Multi-Gig ports at 1/2.5/5G speed support high-bandwidth devices and Wi‑Fi 6 access points, improving wireless backhaul and user experiences.
• Stackable and manageable: Stackable design paired with the AlliedWare Plus OS provides centralized management, simplified upgrades, and resilient failover for growing networks.

Technical Details of Allied Telesis X530L-28GPX Layer 3 Switch

• Model: X530L-28GPX
• Ports: 24 x 10/100/1000 PoE+ ports; 8 x Multi-Gigabit ports (1/2.5/5G); 4 x 10G uplinks
• Operating System: AlliedWare Plus — Enterprise-class management and security
• Form Factor: 1U rack-mountable chassis, stackable with other X530L/X530L-28GPX devices
• Power and PoE: PoE+ capable with integrated power budget to support network devices
• Compliance: TAA compliant for government and enterprise procurement
• Features: Layer 3 routing, VLANs, ACLs, QoS, IGMP Snooping, secure management interfaces, and robust monitoring

how to install Allied Telesis X530L-28GPX

• Choose a secure, well-ventilated rack location and mount the switch in a standard 19-inch rack using the included rails or mounting hardware.
• Connect the power supply to a reliable power source and verify that all connections meet local electrical requirements. Ensure the ventilation area remains unobstructed for cooling.
• Plan your network topology by identifying core, distribution, and access layers. Connect the four 10G uplinks to your core switches or data center infrastructure as appropriate for your deployment.
• Connect PoE+ devices to the 24 PoE+ ports. Plan endpoints such as IP cameras, VoIP phones, and wireless access points to the appropriate VLANs and QoS policies.
• Access the AlliedWare Plus management interface (web GUI or CLI) using the switch’s IP address assigned by DHCP or configured in advance. Configure basic settings, then proceed to create VLANs, enable routing, and apply ACLs and QoS rules per your network design.
• Enable stacking with other compatible Allied Telesis switches if you require increased port counts or redundant connectivity. Verify synchronization, failover behavior, and centralized management across the stack.

Frequently asked questions

• What is the Allied Telesis X530L-28GPX? It is a stackable Layer 3 switch with 24 PoE+ ports, 8 Multi-Gigabit ports, and four 10G uplinks, designed for enterprise and mid-market networks, built on the AlliedWare Plus operating system and compliant with TAA requirements.
• Does the X530L-28GPX support PoE? Yes. All 24 PoE+ ports can power a variety of PoE-enabled devices such as IP phones, cameras, and wireless access points, reducing the need for separate power supplies at device locations.
• What kind of management does it use? The switch runs AlliedWare Plus, offering enterprise-grade features, including a web-based GUI, CLI access, VLANs, ACLs, QoS, traffic management, and SNMP for monitoring and integration with management systems.
• Can this switch be stacked? Yes. The X530L-28GPX is designed to be stackable with other compatible Allied Telesis switches, enabling simplified management and coordinated failover across multiple units.
• Is it suitable for Wi‑Fi 6 deployments? Yes. The switch includes eight Multi-Gig ports (1/2.5/5G) that support high-speed connections to Wi‑Fi 6 access points and other demanding devices, helping to future-proof wireless deployments.
• What environments is it best suited for? It is well-suited for small to mid-size enterprise networks, campus distributions, and edge data centers where reliable Layer 3 routing, PoE capabilities, and scalable uplinks are critical for performance and growth.
