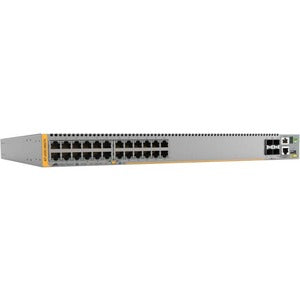

Allied Telesis x930-28GSTX Layer 3 Switch

The Allied Telesis x930-28GSTX Layer 3 Switch is a purpose-built, stackable Gigabit switch designed to empower distribution and network core deployments with speed, reliability, and flexibility. Engineered for resilient networks, it combines robust Layer 3 routing, scalable stacking, and flexible uplink options to deliver efficient traffic management, seamless growth, and simplified administration. Whether you’re building a campus backbone, a data center edge, or a multilayer access network, the x930-28GSTX provides the performance headroom and intelligent features you need to optimize bandwidth, reduce latency, and improve user experience across the enterprise.

• Advanced Layer 3 routing and switching that enables efficient inter-VLAN routing, dynamic and static routes, and policy-based traffic control to minimize broadcast domains while maximizing throughput and reliability.
• High-performance hardware design with non-blocking forwarding and deep packet inspection that supports QoS, traffic shaping, and multicast optimization, ensuring critical applications — voice, video, and business-critical data — get the bandwidth they require.
• Flexible uplinks and uplink resiliency with 10G and 40G capabilities, allowing seamless aggregation to core networks, data center connectivity, or WAN links while preserving low latency and high throughput even at peak loads.
• Stackable architecture that simplifies growth and management. The x930-28GSTX can be deployed as a standalone switch or combined with other Allied Telesis x930 series units to form a single logical switch, providing simplified management, consistent policies, and scalable performance for growing networks.
• Security, reliability, and easy administration through robust access controls, ACLs, QoS policies, VLAN support, IPv6 readiness, and multiple management options (CLI, web GUI, SNMP). This combination helps protect network resources, enforce user and device-level policies, and streamline day-to-day operations.

Technical Details of Allied Telesis x930-28GSTX Layer 3 Switch

• Model: x930-28GSTX
• Series: x930
• Ports: 28 x 10/100/1000BASE-T Copper Ethernet ports
• Uplink options: 10G and 40G uplink capabilities to meet growing bandwidth requirements with flexible transceiver support
• Layer 3 features: static routing, dynamic routing options, VLAN routing, ACLs, QoS, multicast support, and other enterprise-grade routing and switching capabilities
• Stacking: supports stackable deployment with other x930 switches for simplified scale and unified management
• Management: supports CLI and web-based management interfaces, SNMP, RMON, and other common network management tools for monitoring, configuration, and troubleshooting
• Power and redundancy: designed for reliable operation in 24/7 environments with standard AC power input and hardware reliability features suitable for enterprise use
• Energy efficiency and quiet operation: optimized for lower power consumption and reduced noise in office and data center environments

how to install Allied Telesis x930-28GSTX

• Unpack the switch and verify all components are present, including mounting hardware if you plan to rack-mount the unit, along with any required power cables and transceivers for your uplink configuration.
• Mount the switch in a suitable rack or place it on a stable surface with adequate ventilation. Ensure adequate airflow to maintain optimal operating temperatures and prevent thermal throttling.
• Connect power and power-on the switch. If you have a redundant power configuration, install the second power supply as per your data center standards to support hot-swappable or redundant operation.
• Plan your network topology: identify the distribution or core links, VLAN assignments, and any routing policies you want to apply. Prepare the management workstation with the required IP settings to reach the switch in your management network.
• Connect your uplinks (10G/40G) to core or aggregation devices using appropriate transceivers (SFP+/QSFP+) and fiber cables, ensuring correct fiber polarity and link integrity. Connect access ports to end devices or access switches as needed.
• Initial configuration: access the web GUI or connect via the CLI to set up basic management IP, administrator credentials, and secure access settings. Apply initial VLANs and create any required routing policies, ACLs, and QoS rules to reflect your network design.
• Configure stacking if you are integrating multiple x930 switches. Use the stacking cables and management interfaces to join units into a single managed entity, then apply consistent policies and routing configurations across the stack.
• Test connectivity and performance by validating inter-VLAN routing, uplink stability, and traffic handling for critical applications. Monitor switch health, link status, and resource usage to verify the deployment meets your performance goals.
• Document the configuration and save the settings to ensure rapid recovery in case of power loss or device replacement. Regularly back up configurations and review security settings to maintain a secure network posture.

Frequently asked questions

• Q: What is the Allied Telesis x930-28GSTX best used for? A: It is designed for distribution and network core deployments in enterprise environments, providing Layer 3 routing, stackability, and flexible uplinks to support scalable, reliable, and high-performance networks.
• Q: What uplink speeds does the x930-28GSTX support? A: The switch includes 10G and 40G uplink capabilities, enabling fast connections to aggregation or core networks and allowing future-proof expansion as bandwidth demands grow.
• Q: Can the x930-28GSTX be stacked with other Allied Telesis switches? A: Yes. The x930 series is built for stacking, allowing multiple switches to operate as a single logical device with unified management and consistent policy enforcement.
• Q: What management options are available? A: The device offers CLI and a web-based GUI for configuration, along with standard enterprise management features such as SNMP and RMON for monitoring, plus support for QoS, ACLs, and VLAN management.
• Q: Which features help with network security and performance? A: VLAN segmentation, ACLs for traffic filtering, QoS for prioritizing critical applications, multicast optimization, and robust routing capabilities help keep networks secure, efficient, and responsive.
• Q: Is IPv6 supported on the x930-28GSTX? A: Yes, the x930 series typically includes IPv6-ready features to support modern networks and future growth.
• Q: What kind of environments is this switch ideal for? A: It’s well-suited for campus networks, distribution layers, data center edge, and multi-building environments where reliable Layer 3 routing, scalable growth, and flexible uplinks are essential.
