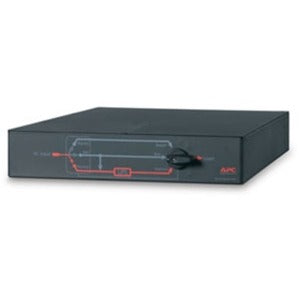

APC 32A Maintenance Bypass Panel — 19-Inch Rack-Mountable Bypass System

The APC 32A Maintenance Bypass Panel provides a robust, turnkey solution for safely isolating a UPS from its critical load during maintenance or service. Designed to fit standard 19-inch racks, this wrap-around bypass system delivers a reliable transfer path that keeps your protected equipment online, minimizes downtime, and simplifies UPS maintenance tasks. With three integrated breakers and a compact, modular form factor, it’s ideal for data centers, server rooms, and network closets where reliability and space utilization matter most.

• 19-inch rack-mountable design: Engineered to fit perfectly into standard 19" enclosures, the panel delivers a clean, professional installation that integrates with other rack components and existing power distribution setups. Its compact footprint helps maximize rack space for servers, switches, and storage devices, while maintaining easy access for maintenance and testing.
• 32A current rating with three maintenance bypass breakers: This panel is built to support up to 32 amps of bypass current and includes three dedicated breakers. The three-breaker configuration provides clear, segmented control for bypass paths, enabling technicians to isolate portions of the load as needed during service without disrupting other connected equipment in the rack.
• Wrap Around System Bypass for safe isolation: The wrap-around bypass design enables a controlled, seamless transfer between normal operation and bypass mode. By isolating the UPS from the critical load during maintenance, it protects personnel and equipment while allowing uninterrupted service to essential systems once testing is complete.
• Quick Transfer Rate for minimal downtime: Featuring a fast transfer action, this panel supports rapid switching to bypass when maintenance windows open. The quick transfer capability minimizes downtime and helps facilities meet strict maintenance SLAs, ensuring that critical loads stay protected with minimal interruption.
• Rugged, modular construction with easy installation: The maintenance bypass panel is built to endure busy data center environments. Its modular design simplifies installation, service, and future upgrades, enabling technicians to swap components or upgrade configurations with minimal disruption to ongoing operations.

Technical Details of APC 32A Maintenance Bypass Panel

• Current rating: 32 A, providing ample capacity for typical 24/7 critical-load scenarios while remaining compatible with a wide range of UPS systems and associated equipment.
• Mounting: 19-inch rack-mountable form factor designed to integrate seamlessly into standard server rooms and data centers, maximizing space efficiency and keeping power distribution organized.
• Bypass system: Wrap Around System Bypass configuration allows safe isolation of the UPS from the critical load during maintenance, reducing risk to personnel and equipment and enabling predictable, controlled handoffs.
• Breaker configuration: Includes three maintenance bypass breakers to provide flexible, sectional control over bypass paths and to support maintenance workflows without compromising overall system protection.
• Purpose and use case: Specifically intended to isolate the UPS from the critical load for servicing, testing, or replacement, ensuring that critical systems remain protected and operational during maintenance windows.
• Transfer characteristics: Designed for a quick transfer rate to support rapid, reliable switching between normal operation and bypass mode during planned maintenance.

How to install APC 32A Maintenance Bypass Panel

• Plan the installation in a dedicated, well-ventilated rack space with clear access to electrical outlets, UPS units, and distribution panels. Verify that the rack size and mounting location meet the panel’s 19-inch mounting requirements and that there is no interference with other equipment or cables.
• Power down the UPS and the connected critical load according to your facility’s safety procedures. Disconnect power sources as appropriate and ensure that all personnel follow established lockout/tagout protocols before mounting or wiring the bypass panel.
• Mount the APC 32A Maintenance Bypass Panel into the rack, securing it firmly to the rack rails. Ensure the panel is level and accessible for wiring, testing, and future maintenance. Route cables cleanly to minimize clutter and reduce airflow disruption.
• Connect the bypass panel’s input and output terminals to the UPS and to the critical load as specified by your UPS model and load requirements. Use the appropriate gauge wiring and ensure all connections are tight and properly labeled for future maintenance. Confirm there are no loose connections or signs of damage.
• Install the three bypass breakers and configure them according to your maintenance procedures. Label each breaker to clearly indicate its function and the circuit it serves. Check for proper clearance around the breakers and ensure that activation/deactivation can be performed safely without obstruction.
• Restore power and perform a controlled transfer test. Switch the system to bypass mode to verify that the UPS is isolated from the critical load and that the bypass path carries the intended current without interruption. Return to normal operation and confirm that all equipment resumes normal power supply smoothly.
• Document the installation, including wiring diagrams, breaker settings, and testing results. Maintain an up-to-date maintenance log so future technicians can quickly understand the bypass configuration and the recommended maintenance workflow.

Frequently asked questions

• What is a maintenance bypass panel? A maintenance bypass panel is a specialized device that allows you to isolate a UPS from the critical load for service or maintenance while keeping power available to connected equipment through a bypass path. It reduces downtime and improves safety during UPS maintenance tasks.
• Why choose a 32A maintenance bypass panel? A 32A rating provides a balance between capacity and flexibility for many data center and network room configurations. It supports typical UPS-output and critical-load arrangements, enabling reliable bypass operation without overloading the panel.
• How many breakers are included? The APC 32A Maintenance Bypass Panel features three maintenance bypass breakers, offering segmented control over the bypass paths and simplifying maintenance workflows.
• Is this panel compatible with all UPS brands? This panel is designed to integrate with UPS systems commonly used in data centers and server rooms. Always verify compatibility with your specific UPS model and consult the product’s installation guide for recommended wiring and configurations.
• Can I install this panel in an existing rack? Yes. The 19-inch rack-mountable design is intended for easy integration into standard server racks, making it suitable for new installations or upgrades in existing infrastructure with proper space and clearances.
• What maintenance scenarios benefit from a bypass panel? Routine UPS maintenance, battery replacement, testing, or any scenario where minimizing downtime and ensuring safety during service are critical benefits. The bypass panel ensures that essential loads can remain powered while the UPS is serviced.
