Description

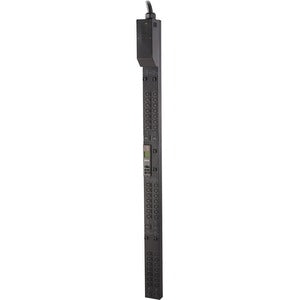

APC by Schneider Electric 50-Outlet PDU
Power reliability and intelligent load management come together in the APC by Schneider Electric 50-Outlet PDU. Designed for data centers, server rooms, and network closets, this switched PDU distributes power to a diverse range of IT equipment while giving you real-time visibility and control. With a total of 50 outlets configured as 2 x NEMA 5-20R, 6 x IEC 60320 C19, and 42 x IEC 60320 C13, it accommodates everything from high-performance servers to network switches and storage devices. A built-in digital current meter provides precise, real-time load data, helping you prevent overloads, optimize energy usage, and plan capacity as your infrastructure grows. The 230 V AC operation keeps you in line with standard enterprise power systems, and the 0U, rack-mountable form factor makes it an unobtrusive fit for dense rack environments. This is more than a power strip—it’s a scalable, protected, and monitored power distribution solution that simplifies management and improves uptime across critical IT installations.
- Comprehensive outlet configuration: The 50-outlet layout combines 2 x NEMA 5-20R, 6 x IEC 60320 C19, and 42 x IEC 60320 C13 receptacles. This versatile mix accommodates a wide array of IT devices, from servers and routers to switchgear and storage enclosures, all in a single, organized unit. The varied receptacle types reduce the need for adapters and free up rack space for airflow and cable management. Whether you’re refreshing a small rack or outfitting a full data hall, this PDU provides the flexibility you need to power a diverse equipment portfolio without clutter.
- Switched power with built-in metering: This is a switched PDU, giving you remote control over power delivery and the ability to turn outlets on or off as needed. The integrated digital current meter delivers accurate load data in real time, enabling proactive capacity planning and preventing overload events. With visibility into how much power each outlet and circuit draws, you can optimize energy use, reduce waste, and keep critical gear running within safe electrical limits. The combination of switchability and metering supports safer maintenance windows and smarter automation strategies for growing IT environments.
- 0U, rack-mountable design: Engineered for space-conscious data centers, the PDU installs in standard 19-inch racks without consuming any additional vertical space (0U). This compact footprint makes it ideal for high-density deployments, where every inch of rack space counts. The rugged enclosure is built to withstand the rigors of a data center or enterprise IT closet, helping protect power distribution against accidental bumps and ensuring consistent performance even in demanding conditions. A tidy, centralized power source also improves airflow and cable management, contributing to cooler operation and easier maintenance.
- 230 V AC operation for enterprise compatibility: The PDU is tailored for regions and installations that rely on 230 V AC power, aligning with the standard power infrastructure used by many servers, storage arrays, and networking devices. This compatibility simplifies integration with existing UPS units, PDUs, and building power distribution schemes, reducing configuration complexity and downtime during deployment. The 230 V design also supports efficient performance for high-demand equipment, helping operators sustain peak performance when workloads spike.
- Reliable management and protection from a trusted brand: Built by Schneider Electric, a recognized leader in data center power protection, this PDU combines durable construction, precise metering, and scalable management capabilities. The rugged hardware is designed to stand up to continuous operation in data centers or telecom rooms, while the intelligent features deliver consistent availability and predictable performance. With the APC lineage, you gain access to proven reliability, software integration options, and a track record of safeguarding mission-critical equipment through resilient power distribution and intelligent monitoring.
Technical Details of APC by Schneider Electric 50-Outlet PDU
- Outlet configuration: 2 x NEMA 5-20R, 6 x IEC 60320 C19, 42 x IEC 60320 C13
- Input voltage: 230 V AC
- Mounting: 0U rack-mountable
- Control: Switched power with remote on/off capability
- Metering: Built-in digital current meter for real-time load monitoring
- Application: Data center, server room, and network closet power distribution
- Construction: Durable enclosure designed for reliability in demanding IT environments
How to install APC by Schneider Electric 50-Outlet PDU
Step 1 – Plan and verify: Before installation, confirm that your rack supports 19-inch equipment and that the 0U PDU will fit within the designated space. Check that your facility provides a stable 230 V AC power source and that the distribution plan accounts for the mixed outlet types (NEMA 5-20R, IEC 60320 C19, C13) to minimize the need for adapters. Review any compatible rack management or monitoring systems you intend to integrate with the PDU to ensure seamless data collection and control.
Step 2 – Prepare the rack: Disconnect power to the rack area during installation to prevent accidental energization. Remove any unused mounting hardware and ensure the rack rails are clean and aligned. If your rack uses rear access or cable management arms, position the PDU so that cables can exit cleanly without crimping or bending excessively.
Step 3 – Mount the PDU: Align the PDU with the rack’s mounting points and secure it using the appropriate screws or hardware recommended by Schneider Electric. Since this is a 0U unit, it should slide into the rack space without taking up vertical rack space. Tighten fasteners to ensure stability, but avoid overtightening, which could damage the chassis.
Step 4 – Connect to power and define allocation: Connect the PDU’s input power to a suitable 230 V AC source or UPS output as per your power architecture. Route cables neatly to the back of the rack, ensuring adequate clearance for airflow and easy access to the outlets. Take note of outlet groups and label cables so that critical devices connect to the most appropriate receptacles for power sequencing and monitoring.
Step 5 – Connect equipment and configure monitoring: Attach servers, switches, storage, and other devices to the appropriate outlets (NEMA 5-20R, IEC 60320 C19, C13). Once connected, enable and test the switched functions if remote control of outlets is part of your operational plan. Access the PDU’s built-in current meter data to confirm loads are within safe limits and adjust distribution as needed for balanced usage across the outlets. If you have compatible rack management software, integrate the PDU for remote monitoring, alerting, and automated power-control routines.
Step 6 – verify operation and safety: Restore power and verify that all connected devices boot correctly. Check the digital current meter for expected load patterns and review any alert thresholds you’ve configured. Confirm that switching functions operate as intended and that management interfaces report accurate, up-to-date information. Ensure label clarity and keep cables organized to maintain efficient airflow and straightforward maintenance in the future.
Frequently asked questions
- What is a switched PDU? A switched PDU provides remote control over outlet power, allowing IT teams to turn outlets on or off as needed for maintenance, power-cycling, or load management. This capability helps reduce downtime and improves response times when equipment requires reset or reconfiguration.
- How many outlets does this PDU have and what types are included? It features 50 outlets in total: 2 x NEMA 5-20R, 6 x IEC 60320 C19, and 42 x IEC 60320 C13. This mix supports servers, switches, storage devices, and other IT gear in a single, consolidated power distribution unit.
- What voltage does it use? The PDU operates at 230 V AC, making it compatible with common enterprise power systems and many data-center-grade UPS configurations.
- Does it include a built-in meter? Yes. The PDU includes a digital current meter for real-time load monitoring, enabling proactive capacity planning and safer operation by avoiding overloads.
- Is it suitable for 0U rack mounting? Absolutely. The 0U design fits into standard 19-inch racks without consuming vertical rack space, which helps maximize enclosure density and improve airflow for cooling efficiency.
