Description

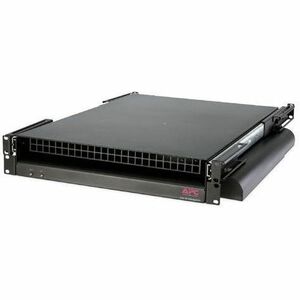

APC by Schneider Electric ACF201BLK Rack Side Air Distribution System
Meet the APC by Schneider Electric ACF201BLK Rack Side Air Distribution System — a purpose-built cooling accessory designed to maximize airflow efficiency in standard 19-inch racks. Built for IT environments where dense servers, storage, and networking gear push cooling to the limit, this 2U, black side distribution module cleanly channels conditioned air where it’s needed most. By directing airflow to critical front-end intakes and reducing hot spots, the ACF201BLK helps stabilize operating temperatures, improve equipment reliability, and support higher performance workloads without a dramatic lift in overall data center power use. Whether you’re outfitting a new rack, upgrading an existing setup, or scaling for growth, this side air distribution system offers a practical, space-saving solution that blends seamlessly with APC and other rack enclosures while delivering noticeable gains in cooling effectiveness.
- 260 CFM of airflow capacity delivers robust cooling for high-density IT content within a standard 19-inch rack, helping to match the cooling supply to the demand of modern servers, switches, and storage devices without overhauling your entire cooling strategy.
- Rack-side air distribution precisely targets cold air to front-facing equipment, reducing hot spots and temperature gradients. By focusing delivery at the intake points, it supports safer operating temperatures, longer hardware life, and greater reliability for critical workloads.
- 2U, rack-mountable design in a durable black housing fits neatly into standard data-center racks. Its compact form-factor allows you to add targeted cooling without compromising rack space or interfering with cable management, patch panels, or door access.
- Energy-conscious operation runs on 120 V and up to 150 W, offering meaningful cooling benefits with minimal impact on your overall power draw. It’s a strategic upgrade that helps improve thermal performance while keeping operating costs under control.
- Simple installation and dependable construction make it an attractive addition for IT teams. The ACF201BLK ships with mounting hardware and is designed for quick integration into APC racks or compatible 19-inch enclosures, enabling rapid deployment with minimal downtime.
Technical Details of APC by Schneider Electric ACF201BLK
- Model: ACF201BLK
- Type: Rack Side Air Distribution System
- Airflow: 260 CFM
- Height: 2U
- Voltage: 120 V
- Power consumption: 150 W
- Color: Black
- Mounting: Rack-mountable; compatible with standard 19-inch racks
- Application: IT cooling accessory for optimized front-to-back airflow in dense rack configurations
How to install APC by Schneider Electric ACF201BLK
- Power down and unplug equipment in the rack, then relocate removable front panels or doors as needed to access the rack interior.
- Position the ACF201BLK so that its alignment matches the rack’s 19-inch mounting rails. Verify there is clear space for airflow and that no cables impede installation.
- Attach the unit to the rack using the included mounting hardware. Ensure the device is securely fastened to both the top and bottom mounting points to minimize vibration and maintain a stable airflow path.
- Connect the ACF201BLK to a 120 V power source if required by your configuration, and route power cables to avoid blocking intake or exhaust paths. Confirm that circuit capacity matches load requirements and that local electrical codes are followed.
- Power up the rack and observe airflow patterns. Confirm that cold air is entering the front of equipment as intended and that there are no obstructions in the side distribution pathway. Fine-tune any minor positioning to optimize cooling effectiveness for your specific appliance mix.
Frequently asked questions
- Q: What is the primary purpose of the ACF201BLK? A: It acts as a rack-side air distribution system to improve front-end airflow within standard 19-inch racks, helping to reduce hotspots and stabilize temperatures in high-density IT environments.
- Q: What rack size does this unit fit? A: It is designed for standard 19-inch racks and is a 2U installation, making it compatible with most data-center racks used for servers, storage, and networking gear.
- Q: How much power does the device require? A: The ACF201BLK operates at 120 V and draws up to 150 W during typical cooling operation, offering a favorable balance between cooling performance and energy use.
- Q: Can I use the ACF201BLK with non-APC racks? A: Yes. While it is designed to integrate well with APC enclosures, it is compatible with standard 19-inch racks used in many IT environments, provided mounting aligns and clearance is sufficient for airflow.
- Q: Will this accessory reduce my data-center energy costs? A: Indirectly. By improving cooling efficiency and reducing hot spots, equipment runs cooler and more reliably, which can contribute to lower fan speeds and improved overall cooling efficiency, potentially lowering energy consumption when paired with a well-balanced cooling strategy.
