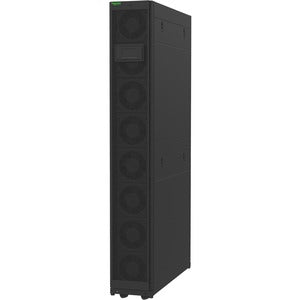

APC by Schneider Electric ACRD301 InRow DX 300mm 30kW


Price:
Sale price$15,146.34

Description

APC by Schneider Electric ACRD301 InRow DX 300mm 30kW

The APC ACRD301 InRow DX is a high-density liquid-cooled cooling solution tailored for data centers and IT rooms where precision, reliability, and efficiency matter most. Designed to fit seamlessly into a standard 42U rack, this 30 kW cooling unit uses in-row DX liquid cooling technology to deliver focused airflow exactly where your IT equipment needs it. With a compact 300mm footprint and a robust 3400 CFM capacity, the ACRD301 combines enterprise-grade performance with rack-level control, helping data centers optimize energy use, reduce hotspots, and maintain optimal server temperatures even during peak load.

  • High-density, liquid-cooled performance: Capable of delivering up to 30 kW of cooling within a compact 300mm footprint, the ACRD301 is engineered to support dense server configurations, high-performance GPUs, and other power-hungry IT equipment without requiring expansive room-wide cooling. This enables lower overall facility cooling loads and improved PUE readiness for modern workloads.
  • Precision, in-row airflow: The 3400 CFM air movement is designed to target hot aisles and IT components directly, minimizing bypass and avoiding unnecessary cool air recirculation. The InRow DX approach ensures that cold air is delivered where it’s needed most, helping to stabilize inlet temperatures and protect critical equipment from thermal throttling.
  • Rack-mountable 42U integration: Built to integrate into standard 42U racks, this unit preserves floor space and simplifies rack topology. Its slim 300mm width makes it ideal for space-constrained data centers, edge deployments, and telecom rooms, allowing you to consolidate cooling without sacrificing rack density.
  • Liquid cooling with efficient power use: Featuring a dedicated liquid cooler, the ACRD301 provides efficient heat removal at the source, reducing ambient room cooling requirements. With a power footprint of 850 W, it remains energy-conscious while delivering dependable cooling performance for continuous IT operation.
  • IT-grade reliability and ease of maintenance: The unit is designed for continuous operation in demanding IT environments, with serviceable components and straightforward maintenance procedures. Its rugged construction and industry-grade controls help minimize downtime, while clear monitoring and alarms keep administrators informed of performance and any potential issues.

Technical Details of APC by Schneider Electric ACRD301 InRow DX 300mm 30kW

  • Cooling capacity: 30 kW
  • Airflow: 3400 CFM
  • Footprint: 300 mm width (compact 300mm InRow DX design)
  • Rack compatibility: 42U rack-mountable
  • Power supply: 230 V DC
  • Electrical consumption: 850 W
  • Cooling method: Liquid cooler
  • Application: IT and data center cooling, ideal for dense blade servers, GPUs, and other高-density IT workloads

How to install APC by Schneider Electric ACRD301 InRow DX 300mm 30kW

Proper installation is critical to maximize cooling efficiency and safeguard IT equipment. Follow these steps to install the ACRD301 in a standard 42U rack environment:

  • Plan the rack layout: Identify the optimal location within the data center’s hot and cold aisle design. Ensure adequate clearance around the unit for service access, airflow, and maintenance. Confirm compatibility with your 42U rack and verify mounting rails and hardware are available.
  • Prepare the rack and rails: Install the mounting rails per the manufacturer’s instructions, ensuring a secure fit that supports the unit’s weight and vibration characteristics. Check that the rack is level and stable to prevent any movement during operation.
  • Mount the unit: Slide the ACRD301 into the rack and secure it with the supplied hardware. Align connectors and fittings to avoid strain on hoses and cables. Ensure the unit is oriented to maximize intake and exhaust efficiency in your specific rack configuration.
  • Connect power and controls: Attach the 230 V DC power supply according to local electrical codes and the product’s wiring diagram. Connect monitoring and control interfaces to your data center infrastructure so you can monitor temperature, airflow, and alarms in real time.
  • Integrate the liquid cooling loop: Connect the liquid cooling lines to the building’s cooling system or dedicated chiller loop, following all safety and leak-detection procedures. Verify seal integrity, purge air from lines, and perform a leak test before energizing the unit.
  • Commission and verify: Power up the unit, load test with representative IT equipment, and verify that the 3400 CFM airflow is achieving the desired inlet temperatures. Configure setpoints, alarms, and fan speeds to balance cooling performance with energy efficiency.
  • Monitor and maintain: Establish a routine for monitoring temperature, humidity, and coolant flow. Schedule periodic inspections for hoses, fittings, and the liquid cooling system to prevent leaks and ensure long-term reliability.

Frequently asked questions

  • What is InRow DX cooling? InRow DX cooling places the cooling unit directly in the row adjacent to IT equipment, enabling precise, high-efficiency cooling of hot spots and reducing the reliance on whole-room air conditioning. This approach improves heat removal at the source and supports higher rack densities with better energy efficiency.
  • What workloads is the ACRD301 suitable for? The 30 kW capacity and 3400 CFM airflow make it well-suited for dense rack deployments, including blade servers, GPU compute nodes, and other power-intensive IT gear that requires targeted cooling in a compact form factor.
  • Is maintenance complex for this unit? The ACRD301 is designed for IT environments with straightforward service access. Routine checks for coolant levels, leak detection, electrical connections, and sensor calibration are typically performed during planned maintenance windows, with alerts helping to minimize unplanned downtime.
  • Can I integrate this unit with existing data center infrastructure? Yes. Its standard 42U rack compatibility and controllable cooling output allow it to integrate with common data center monitoring systems. Consult your facilities team to align with your hot aisle/cold aisle strategy and PDUs for reliable operation.
  • What energy savings can I expect? By delivering cooling directly to IT equipment and reducing room-wide cooling requirements, InRow DX solutions like the ACRD301 can lower overall energy consumption and improve PUE, especially in dense IT environments where traditional CRAC systems struggle to keep up with cooling demands.
