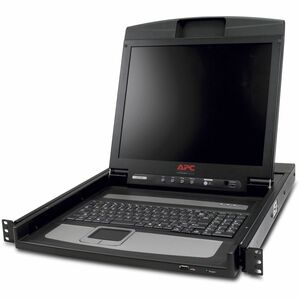

APC by Schneider Electric AP5717 17" Rack LCD Console

Apc by Schneider Electric’s AP5717 17" Rack LCD Console is the ultimate all-in-one solution for efficient, space-saving server management in dense data centers and small to mid-size rack environments. This 1U rack-mountable unit combines a full-size US English keyboard, an integrated mouse, and a bright 17" LCD display into a single, compact chassis. Designed to streamline local maintenance tasks, it reduces cable clutter and frees up valuable rack space while delivering dependable, globe-spanning compatibility with a broad range of servers and network devices. The AP5717 is built for administrators who demand quick access to multiple devices without hopping between separate peripherals, enabling faster troubleshooting, firmware updates, and routine monitoring. The black enclosure blends with standard server racks, presenting a professional, unobtrusive appearance in data centers, colocation facilities, and IT rooms. With its universal 100-240V input, the AP5717 supports global deployments, making it a versatile choice for organizations with international sites or mixed equipment profiles. In short, the AP5717 rack LCD console is engineered to enhance operator efficiency, simplify rack management, and deliver reliable, consistent performance in demanding environments.

• All-in-one 17" KVM console: A compact, integrated solution that includes a full-size keyboard, an integrated USB mouse, and a high-quality LCD display, all housed in a 1U footprint for maximum rack density and minimal footprint expansion.
• US English keyboard layout: The familiar key arrangement reduces typographical errors during server administration, firmware updates, and console-based management tasks, ensuring smooth operation for North American teams and shared support staff.
• Universal power and energy-conscious design: With a 100-240V input, the AP5717 is ready for global use without the need for country-specific transformers, while its efficient power handling supports reliable operation in busy data centers and reduces unnecessary energy consumption.
• Rugged, rack-ready construction: Engineered for 19" standard racks with front-mount rails, the console stays securely in place during equipment swaps and maintenance, maintaining alignment with servers and network devices for repeatable, efficient access.
• Ergonomic display and control experience: The 17" LCD provides clear, readable output for console login and console-based management interfaces; ergonomic considerations, including brightness adjustments and responsive navigation, help reduce operator fatigue during long maintenance sessions.

Technical Details of APC AP5717

• Model: AP5717
• Product Type: 17" Rack LCD Console
• Rack Unit Height: 1U
• Display: 17" LCD with clear viewing angle and legible text for server management tasks
• Keyboard: USB, US English layout
• Mouse: Integrated USB pointing device
• Power Input: 100-240 VAC
• Color: Black
• Mounting: 19" standard rack compatible with front-mount rails
• Brand: APC by Schneider Electric

How to install APC AP5717

• Prepare the rack: Ensure you have an available 1U space and that the rack is equipped with compatible front-mount rails or slides designed for 19" equipment. Confirm that the surrounding environment meets typical data center or IT room conditions for comfort and reliability.
• Unpack and position: Carefully remove the AP5717 from its packaging, then carefully slide the unit into the 1U space, aligning with the rack rails. Use the included mounting hardware to secure the console firmly to the rack frame, ensuring the front face remains accessible for quick connections and maintenance.
• Connect input devices: Attach the console’s USB keyboard and USB mouse connections to your server management network or to the devices you intend to control directly from the rack. If you use a local KVM setup, ensure the console’s USB inputs are linked to the appropriate servers or KVM switch as required.
• Power and verify: Connect the AP5717 to a suitable 100-240V power source and power it on. Verify that the 17" LCD powers up, displays the intended desktop or management interface, and that the keyboard and mouse respond accurately to input. If necessary, adjust LCD brightness to optimize readability in your environment.
• Test and finalize: Check alignment with adjacent equipment and confirm that the console remains stable after any additional devices are connected or reconfigured. If your data center uses management software or server blade enclosures, test login procedures, remote KVM access, and any required hotkey combinations to confirm seamless operation.

Frequently asked questions

• What is the APC AP5717 designed to do? It serves as a compact, all-in-one 17" rack LCD console that fits in a 1U space, providing a built-in keyboard, mouse, and display to manage servers and network devices from a single local console without requiring separate peripherals.
• What keyboard layout is included? The AP5717 uses a US English keyboard layout, which is standard for North American deployments and for teams accustomed to that arrangement.
• What rack size does it fit? The unit is designed for a standard 19" rack and occupies 1U of vertical space, making it ideal for dense rack environments where space efficiency is essential.
• Is the power supply universal? Yes. The AP5717 supports a wide input voltage range of 100-240V AC, enabling use in diverse regions without swapping power adapters.
• Can it manage multiple servers? The AP5717 is a local console, which can support access to servers and devices within a rack. For true multi-server control, it can be paired with compatible KVM switches or integrated management solutions that the APC ecosystem supports. Always confirm compatibility with your existing KVM infrastructure and server models.
