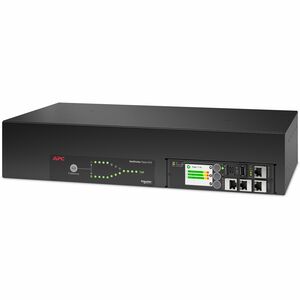

APC Netshelter Rack Automatic Transfer Switch PDU – 2U, 30A, 120V, L5-30P In, 16 x 5-20R Out

Upgrade your data center reliability with the APC Netshelter Rack Automatic Transfer Switch PDU. Engineered for APC Netshelter enclosures, this compact 2U power distribution unit delivers robust, redundant power management for servers, networking gear, and storage devices. With a 120V, 30A design, an L5-30P input and 16 NEMA 5-20R outlets, it simplifies power distribution, enhances uptime, and improves cable management across critical racks. This PDU is purpose-built for environments where uptime matters, delivering seamless power transition between primary and backup sources and enabling intelligent, organized distribution within your rack ecosystem.

• Compact 2U, Rack-Mount Design: Fits neatly inside APC Netshelter enclosures, maximizing rack space while delivering powerful, reliable power distribution for dense cabinet configurations.
• Versatile Input and Outlet Configuration: Features a single NEMA L5-30P input toward a clean power feed and 16 NEMA 5-20R outlets to accommodate a wide range of servers, switches, storage devices, and network gear.
• Automatic Transfer Switch for Uptime: Built-in ATS functionality seamlessly switches power between primary and backup sources, ensuring continuous operation during interruptions without manual intervention.
• Reliable 120V, 30A Electrical Rating: Delivers steady, balanced power to critical equipment, supporting high-demand devices while providing dependable protection and performance.
• Seamless Netshelter Compatibility and Cable Management: Designed to integrate with APC Netshelter racks for clean cabling, organized routing, and scalable power distribution across growing data center environments.

Technical Details of APC Netshelter Rack Automatic Transfer Switch PDU

• Form Factor: 2U rack-mountable PDU designed to fit APC Netshelter enclosures.
• Input Connector: NEMA L5-30P (input power connection).
• Output Connectors: 16 x NEMA 5-20R outlets for versatile device connections.
• Electrical Rating: 120V, 30A to support high-density equipment with reliable power distribution.
• Protection & Power Management: Automatic Transfer Switch provides seamless switchover between primary and backup power sources to minimize downtime.
• Compatibility: Optimized for APC Netshelter racks and modular enclosure ecosystems for streamlined integration.

How to Install APC Netshelter Rack Automatic Transfer Switch PDU

• Plan your rack layout in advance and confirm available space within the APC Netshelter enclosure to ensure easy access to the input connector and outlets.
• Mount the 2U PDU inside the rack using your APC Netshelter mounting hardware, aligning with standard 19-inch rack spacing for secure installation.
• Connect the input power to the L5-30P input on the PDU from your primary power source or from a compatible UPS/utility feed, ensuring proper grounding and a secure connection.
• Route the 16 x 5-20R outlets to your servers, switches, storage devices, and other critical equipment, using cable ties and management accessories to maintain clean, organized cabling.
• Power up the equipment and verify that all outlets become live, then test the Automatic Transfer Switch by simulating a power loss to confirm that the PDU smoothly transitions to a backup source without interrupting connected devices.
• Label circuits, monitor power availability, and establish baseline load measurements to optimize performance and plan for future growth within the Netshelter environment.
