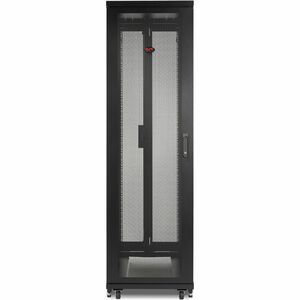

APC by Schneider Electric AR2400FP1 Netshelter SV 42U Enclosure — 600 mm Wide x 1060 mm Deep, With Sides (Black)

Introducing the APC AR2400FP1 Netshelter SV enclosure, a purpose-built solution for organizing, protecting, and expanding your IT infrastructure. Built to serve data centers, server rooms, and high-demand network closets, this 42U cabinet combines trusted Schneider Electric engineering with a compact footprint. Designed to accommodate a wide range of 19-inch equipment—from servers and switches to storage arrays and patch panels—this enclosure optimizes space, airflow, and serviceability. Its Netshelter SV lineage emphasizes modularity, sturdy construction, and professional aesthetics, making it a dependable home for critical equipment and a smart choice for growing networks.

• 42U capacity in a compact 600 mm wide by 1060 mm deep enclosure, delivering ample space for servers, switches, patch panels, and storage units while preserving essential floor space. The 19-inch mounting rails support standard equipment and offer adjustable height to accommodate future upgrades.
• Includes side panels for privacy, airflow control, and cable management, helping to maintain clean cable routing and optimized cooling performance within dense rack deployments.
• Designed for efficient cable management with integrated trays, cable knockouts, and clean routing channels that reduce cable clutter and improve airflow return to cooling systems.
• Rugged construction with a powder-coated black finish that resists wear in busy data centers and IT rooms, ensuring long-term durability and a professional, uniform appearance across the data floor.
• Engineered for easy installation and ongoing maintenance with adjustable rails, modular components, removable panels, and tool-free access to rear cabling, enabling quick upgrades and simplified service checks.

Technical Details of AR2400FP1

• Model: AR2400FP1
• Series: Netshelter SV
• Enclosure height: 42U
• Width: 600 mm
• Depth: 1060 mm
• Side panels: Included
• Material: Steel
• Finish: Powder-coated black
• Mounting rails: 19-inch standard

How to Install AR2400FP1 Netshelter SV Enclosure

• Prepare the installation site by leveling the floor, ensuring adequate egress, and confirming the space can support the enclosure’s weight once loaded with equipment. Clear the area of dust and debris to protect internal components during setup.
• Unpack the enclosure carefully and inspect all panels, rails, doors, and accessories for any shipping damage. Have your installation plan ready, including equipment layout, cable pathways, and access considerations for maintenance.
• Install the 19-inch mounting rails inside the cabinet, aligning them to the intended 19-inch equipment positions. Use the provided fasteners and reference the manufacturer’s rails mounting guidelines to ensure rails are level and securely anchored to the enclosure’s frame.
• Attach the side panels to the enclosure to establish a closed, protected environment for the internal components. Confirm that side panels are properly seated and fastened, providing a stable surface for cable management and airflow routing behind the equipment.
• Mount your IT equipment starting with heavier components close to the bottom for stability, then route cables through the rear knockouts and managed channels. Verify that power, data, and network cables are neatly organized, labeled, and do not obstruct airflow. Finally, close and secure the enclosure doors, checking for proper alignment and smooth operation.

Frequently Asked Questions

• Q: What is the APC AR2400FP1 Netshelter SV enclosure designed for? A: It is designed to house standard 19-inch rack-mounted IT equipment, providing a secure, organized, and scalable cabinet solution for servers, switches, storage, and patch panels in data centers, server rooms, and high-demand network closets.
• Q: What are the key dimensions of AR2400FP1? A: The enclosure offers 42U of usable height, with a width of 600 mm and a depth of 1060 mm, giving you a compact footprint that still accommodates a broad range of equipment.
• Q: Are side panels included with this enclosure? A: Yes, side panels are included to help with privacy, airflow control, and cable management, contributing to a cleaner and more organized interior.
• Q: Is this enclosure suitable for data center use? A: Yes. The Netshelter SV AR2400FP1 is designed for reliability in data centers, server rooms, and professional IT environments, delivering sturdy construction, predictable airflow, and compatible 19-inch equipment mounting.
• Q: How should I approach installation? A: Begin with site preparation and inspection, install the 19-inch rails, attach side panels, mount equipment in a balanced configuration, and carefully route cables through rear knockouts and management channels. Always follow OEM guidelines for safety and warranty compliance.
