APC by Schneider Electric Bypass Panel - 208 V AC

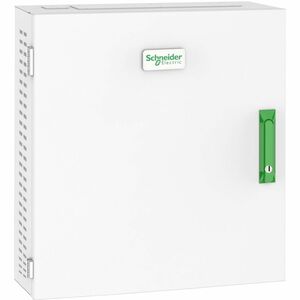

The APC by Schneider Electric Bypass Panel for 208 V AC is purpose-built to safeguard uptime in demanding environments where continuous power to critical loads matters most. Ideal for data centers, server rooms, and industrial facilities, this maintenance bypass solution lets you isolate the uninterruptible power supply (UPS) for service, testing, or replacement without interrupting the power path to essential equipment. With the APC legacy of reliability, this panel delivers a robust, easy-to-operate bypass path that protects sensitive electronics, minimizes planned downtime, and integrates seamlessly with existing power distribution schemes. It is engineered to simplify routine maintenance while preserving power continuity, enabling technicians to perform inspections and upgrades confidently and safely. Whether you are bolstering an existing UPS footprint or implementing a new, scalable power architecture, the APC bypass panel provides predictable performance, clear status communication, and a durable enclosure designed to withstand the rigors of data center life and industrial environments.

• Uninterrupted maintenance capability: The bypass panel establishes a controlled, safe path for power when the UPS is offline, allowing critical loads to remain energized and operational during maintenance, testing, or UPS replacement, thereby protecting business continuity.
• Rugged, reliable construction: Built by APC, the panel features a sturdy metal enclosure, crisp labeling, and durable hardware designed to endure demanding environments, reduce wear, and resist daily handling in rack, cabinet, or floor-mounted configurations.
• Intuitive safety and visibility: Integrated indicators, lockable controls, and protective interlocks provide clear operation status and help prevent accidental switching, enabling technicians to work confidently while maintaining high safety standards.
• Flexible integration and scalability: Designed to accommodate a variety of APC UPS models and distribution layouts, this 208 V AC bypass panel supports modular expansion and evolving power protection architectures without sacrificing ease of use.
• Efficient installation and ongoing maintenance: The compact footprint, straightforward wiring, and user-friendly controls shorten deployment time and simplify routine checks, supporting faster diagnostics and safer, more predictable maintenance outcomes.

Technical Details of APC by Schneider Electric Bypass Panel

• Voltage rating: 208 V AC
• Purpose: Maintenance bypass panel to protect critical loads during UPS downtime
• Enclosure: Rugged metal chassis suitable for rack, cabinet, or floor-mount installations
• Controls and indicators: Lockable bypass and load-switch controls with status indicators for quick, safe verification
• Interlocks: Built-in interlocks to prevent accidental misoperation during service
• Compatibility: Compatible with a range of APC by Schneider Electric UPS systems and common distribution configurations
• Protection: Provides a dedicated bypass path that maintains essential load power while the UPS is serviced
• Safety and compliance: Designed to support safe maintenance practices and align with standard electrical safety expectations for data centers and industrial facilities

How to Install APC by Schneider Electric Bypass Panel

Installing a maintenance bypass panel requires careful planning, adherence to electrical codes, and a clear understanding of your UPS and distribution topology. The steps below describe a typical installation workflow for a 208 V AC APC bypass panel. Always refer to the exact model’s installation manual for model-specific instructions and local requirements, and consider engaging a licensed electrician for any high‑voltage work.

1) Prepare the installation site and verify compatibility. Confirm that the bypass panel is suited for your UPS model and the intended distribution layout. Validate available space, ventilation, and clearance around the panel to permit safe operation and service access. Review the wiring diagram to understand how the bypass input, bypass output, UPS interface, and load connections will be routed.

2) Power down and isolate the circuit. Before handling any wiring, perform appropriate lockout/tagout procedures and ensure the UPS and associated circuits are de-energized. This step is critical to protect personnel and equipment during installation. Use proper PPE and verify there is no residual voltage on the circuits you will touch.

3) Mount the panel. Install the bypass panel in a compatible rack, cabinet, or floor-mmount location with sufficient support and ventilation. Ensure that the mounting hardware is secure and that there is easy access to the main bypass switch and any interlocks for maintenance work.

4) Route and connect wiring. Following the manufacturer’s wiring diagram, connect the bypass input to the UPS output feed, the bypass output to the critical load distribution, and the load/UPS interface as specified. Use appropriately rated conductors and connectors. Keep wiring neatly organized, labeled, and routed to minimize interference and allow for straightforward future service.

5) Install safety devices and verify interlocks. Position and secure any interlocks, guards, or protective covers to prevent accidental contact with live components. Confirm that the bypass switch is lockable and that the indicators reflect correct status during operation.

6) Initial checkout and testing. With power restored to all non‑UPS portions of the system, perform a controlled verification of the bypass path. Check that the critical load remains energized when the UPS is placed into bypass mode and that normal UPS operation resumes when the bypass is released. Perform a simulated maintenance cycle to validate the panel’s function under expected operating conditions.

7) Documentation and labeling. Record the wiring routes, switch positions, and testing results for future maintenance. Label all cables and components clearly to facilitate quick identification during routine checks or future upgrades. Ensure the installation is documented in your facility’s power diagram for reference by facilities and IT teams.

8) Final safety check and commissioning. Conduct a final inspection to confirm that all safety devices are correctly installed, indicators are functioning, and there are no loose connections or stressed wires. Commission the panel in coordination with your data center or facility’s change management process to minimize disruption.

By following these steps and adhering to best practices for electrical safety, technicians can install the APC bypass panel efficiently while ensuring a reliable bypass path for ongoing maintenance. The result is a robust, maintainable solution that enhances uptime, protects critical equipment, and simplifies future upgrades as your power protection needs evolve.
