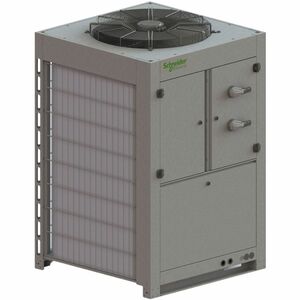

APC by Schneider Electric InRow 30kW Condensing Unit, 480V, Single Feed

Designed for data centers and edge deployments, the APC by Schneider Electric InRow 30kW Condensing Unit delivers efficient, targeted cooling where racks demand the most. This 480V, single-feed air-cooled condenser is built to slot directly into InRow configurations, aligning with the most demanding density and uptime requirements. With a compact footprint and advanced controls, it helps data centers push higher performance with lower energy costs and simpler maintenance.

Engineered to minimize hot spots, reduce PUE, and simplify installation, the unit works as part of Schneider Electric's broader cooling ecosystem. It is a reliable option for facilities looking to optimize rack density without sacrificing reliability or serviceability. Its in-row design reduces ductwork, shortens air paths, and improves airflow management across rows, delivering precise cooling where it is needed most while keeping rear-room temperatures stable.

• Precision in-row cooling: The 30 kW unit sits directly in the data-center row, delivering targeted cooling to the hottest racks while minimizing cross-flow and reducing hot-aisle recirculation for consistent temperatures across you high-density deployments.
• High-capacity performance with scalable design: 30 kW of cooling capacity at 480V supports mid-to-high density rack layouts. The modular, row-based approach makes it easy to scale by adding additional InRow units as density grows, without relocating existing equipment.
• Energy-efficient, air-cooled condenser: By using an air-cooled heat rejection path, this unit eliminates complex water systems and reduces ongoing maintenance. It enables rapid heat removal in hot environments while helping facilities meet sustainability goals and lower operating costs.
• Simple electrical integration: The single feed configuration streamlines electrical design and improves reliability. Its compact footprint fits tight data-center spaces and simplifies wiring harness routing, making installation faster and less disruptive to operations.
• Seamless APC ecosystem integration: Designed to work within Schneider Electric’s InRow cooling family and broader IT infrastructure management tools, enabling unified monitoring, alarm management, and proactive capacity planning for optimized data-center performance.

Technical Details of APC by Schneider Electric InRow 30kW Condensing Unit, 480V, Single feed

• Cooling capacity: 30 kW
• Cooling method: Air-cooled condenser
• Input voltage: 480 VAC
• Electrical feed: Single feed
• Form factor: InRow condensing unit designed for row-based deployment in data centers

How to install APC by Schneider Electric InRow 30kW Condensing Unit

• Plan the installation location within the data center row, ensuring adequate airflow, service access, and alignment with existing racks and containment strategies to maximize cooling efficiency.
• Verify the electrical supply and site wiring: confirm a 480V electrical system and single-feed configuration, and arrange for a licensed electrician to install the main disconnect, circuit protection, and power connections in accordance with local codes.
• Mount the InRow unit in the designated row position: follow manufacturer mounting guidelines to secure the unit, maintain level placement, and ensure proper clearance for service access and airflow paths.
• Connect mechanical and electrical harnesses: attach cooling, alarm, and control harnesses per the installation instructions; perform refrigerant service checks as required, including leak checks and any charge adjustments specified by the manual.
• Commission and test: power up the unit, verify control sequences, balance airflow across the row, and validate cooling performance against rack density targets. Document settings for DCIM integration and ongoing monitoring.

Frequently asked questions

• What is the APC InRow 30kW Condensing Unit used for? It provides targeted cooling for data center rows, delivering up to 30 kW of cooling capacity with an air-cooled condenser designed to sit in-row alongside racks for precise temperature control and improved energy efficiency.
• What voltage does it require? The unit is designed for 480V electrical systems and is configured as a single-feed unit to simplify electrical installation in compatible data-center environments.
• Is this system suitable for high-density racks? Yes. With a 30 kW capacity, it supports mid-to-high density deployments when combined with proper airflow management, ducting, and row-based cooling strategies.
• How does it integrate with data-center management tools? The InRow unit is designed to work within Schneider Electric’s cooling ecosystem and can be integrated with common DCIM platforms to monitor temperature, airflow, and unit status in real time for proactive operations.
• What maintenance is required? Regular maintenance includes checking filters and coils, performing visual inspections, monitoring for refrigerant leaks, and inspecting fans and controls according to the manufacturer’s schedule to sustain efficiency and reliability.
