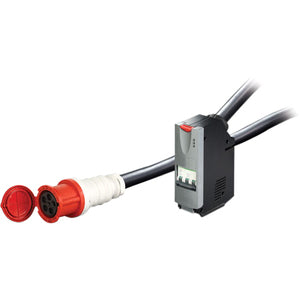

APC by Schneider Electric IT Power Distribution Module 3 Pole 5 Wire 40A IEC 309 380cm
The APC by Schneider Electric IT Power Distribution Module is engineered for demanding, business‑critical environments where uptime, efficiency, and scalable power distribution are non‑negotiable. This 3‑pole, 5‑wire module supports a robust 40A service with IEC 309 connectors and an extended 380 cm cable length, making it an ideal choice for data centers, edge computing rooms, and enterprise IT installations. Designed to integrate seamlessly with APC Modular Power Distribution systems, this module simplifies global deployments while providing a reliable path for growth as your IT footprint expands. Built to meet the needs of modern IT environments, it delivers consistent performance, efficient power delivery, and easier cable management across multiple racks and sites.
- Global, scalable deployment: The APC Power Distribution Module is crafted to streamline the rollout of a standardized power distribution framework across multiple sites. Its modular design supports straightforward expansion of existing APC Modular Power Distribution configurations, enabling standardized procurement, installation, and management. This consistency reduces complexity for multinational deployments and IT environments that require rapid scaling as workloads grow, while ensuring uniform protection and performance across the data center or server room.
- 3‑Pole, 5‑Wire configuration with 40A capacity: This configuration delivers balanced distribution for demanding IT loads. The 3‑pole, 5‑wire arrangement minimizes voltage imbalances and supports efficient power delivery to critical equipment. With a 40A rating, it provides ample headroom for high‑density racks and power‑hungry devices, making it suitable for modern data center rows, consolidation cabinets, and high‑availability environments that rely on consistent power to avoid downtime.
- Ultra‑high efficiency for lower operating costs: APC Power Distribution Modules are designed to optimize energy use in power distribution paths, reducing heat generation and improving overall data center efficiency. The optimized electrical design helps lower cooling loads and energy waste, contributing to lower total cost of ownership while maintaining reliable performance for continuous workloads and business‑critical applications.
- Extended 380 cm cable length for flexible routing: The generous 380 cm length affords flexible routing within racks and enclosures, reducing the need for intermediate adapters or extensions. This longer lead gives installers the freedom to position the distribution module precisely where it is most convenient for cable management, orderly wiring, and accessibility for maintenance, while preserving clean, scalable infrastructure layouts.
- Reliability within the APC Schneider Electric ecosystem: Built to support APC Modular Power Distribution ecosystems, this module aligns with Schneider Electric’s emphasis on reliability, serviceability, and unified monitoring. Its compatibility with APC UPS systems and other distribution components helps you maintain consistent performance, easier troubleshooting, and streamlined maintenance across your IT footprint.
Technical Details of APC by Schneider Electric IT Power Distribution Module 3 Pole 5 Wire 40A IEC 309 380cm
- Configuration: 3 Pole, 5 Wire
- Current rating: 40 A
- Connector standard: IEC 309
- Cable length: 380 cm
- Brand: APC by Schneider Electric
how to install APC by Schneider Electric IT Power Distribution Module 3 Pole 5 Wire 40A IEC 309 380cm
Install this IT Power Distribution Module by following general safety and best‑practice guidelines for data center power distribution. Begin with confirming compatibility with your APC Modular Power Distribution system and ensuring all power sources are de‑energized before handling equipment. Mount the module within a compatible rack or distribution cabinet, ensuring there is adequate clearance for airflow and cable management. Route the 380 cm lead to the appropriate power source, keeping cables organized and away from hot components or moving parts. Connect the 3‑pole, 5‑wire conductors per local electrical codes and the manufacturer’s instructions, making sure all connections are secure and compliant. After mounting and wiring, perform a continuity check, verify load distribution with a monitoring device, and restore power in a controlled sequence to validate proper operation. For model‑specific installation steps, refer to the official APC installation guide and the Schneider Electric technical resources that accompany your unit.
Frequently asked questions
-
Q: What is the primary use case for this APC Power Distribution Module?
A: It is designed for scalable, high‑density IT power distribution in data centers, enterprise IT rooms, and edge deployments, enabling standardized, efficient power delivery for critical equipment. -
Q: What does a 3 pole, 5 wire configuration imply?
A: It indicates three hot conductors plus a neutral and ground, enabling balanced distribution and better support for modern IT loads while meeting safety and code requirements. -
Q: Is the 380 cm cable length suitable for all rack configurations?
A: The extended length provides flexible routing in larger racks and enclosures, reducing cable clutter and accommodating varied installation layouts. Always plan cable paths to maintain airflow and accessibility. -
Q: Can this module be used with other APC components?
A: Yes, it is designed to integrate within the APC Modular Power Distribution ecosystem, ensuring compatibility with APC UPS units and other distribution modules for cohesive power management.
