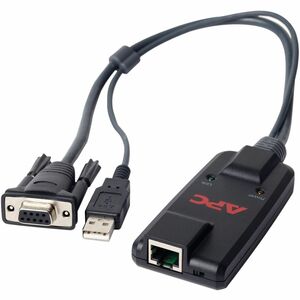

APC by Schneider Electric KVM 2G Server Module Serial Cable

Elevate your data center or IT lab with the APC by Schneider Electric KVM 2G Server Module Serial cable—an essential accessory that streamlines keyboard, video, and mouse connectivity for KVM switches and server consoles. This high-quality cable is designed to simplify complex rack installations by delivering a single, reliable pathway for peripheral signals, reducing cable clutter, and accelerating administrative tasks. Built to meet the demanding needs of enterprise environments, it supports 2G KVM technology and serial integration, ensuring responsive control, precise BIOS access, and robust performance across devices. Whether you’re provisioning a new rack, updating an existing KVM setup, or performing routine maintenance, this cable helps you maintain a clean, efficient, and dependable console backbone for your IT infrastructure.

• All-in-one KVM cabling solution: This cable consolidates keyboard, video, and mouse signals into a single, streamlined connection to your KVM switch and server hardware, minimizing cable tangles and improving rack efficiency for faster deployments.
• Connector details and signal routing: The first end is 1 x RJ-45 Network Female, while the second end includes 1 x 15-pin HD-15 Female for video along with 1 x Type A Keyboard/Mouse interface (USB) for peripheral input, enabling a seamless console experience from a single cable pair.
• Compatibility and practical deployment: Designed for APC KVM 2G server modules and compatible KVM switches that support VGA video (HD-15) and USB keyboard/mouse connections, this cable helps you extend console access to rack-mounted systems with ease.
• TAA compliant for government and enterprise use: Built to meet procurement requirements, this cable is suitable for a wide range of deployments where compliance and traceability matter.
• Durable, enterprise-grade cabling: Crafted to withstand frequent connection cycles and the rigors of data-center environments, delivering consistent signal integrity for keyboard input, video display, and mouse control during critical administration tasks.

Technical Details of APC by Schneider Electric KVM 2G Server Module Serial

• Product type: KVM cable for KVM switch, keyboard, mouse, and monitor
• First end: 1 x RJ-45 Network Female
• Second end: 1 x 15-pin HD-15 Female (video) and 1 x Type A Keyboard/Mouse interface (USB)
• Compliance: TAA compliant
• Signal guidance: Enables keyboard, video, and mouse signals to travel through a single cable to support streamlined console access
• Compatibility notes: Intended for APC KVM 2G server modules and similarly spec’d KVM switches that integrate VGA video and USB HID peripherals
• Cable length: Not specified in available details
• Color and construction: Not specified in available details

how to install APC by Schneider Electric KVM 2G Server Module Serial

Follow these general steps to install the KVM 2G server module serial cable in a typical KVM-enabled rack environment. Before you begin, power down all involved devices and ensure you have the appropriate access to the KVM switch, server, and console hardware.

1) Power down and unplug the devices you will connect to the cable to protect against electrical surges and ensure a clean signal path. 2) Connect the RJ-45 end of the cable to the designated network/management port on your KVM switch or the APC KVM 2G module, ensuring the connector is fully seated. A snug, click-like engagement indicates a proper connection. 3) Attach the HD-15 end to the server’s VGA video output or to the designated HD-15 video port on the KVM device’s channel, aligning pins carefully to avoid bent connectors. 4) Plug the Type A USB connector into the USB keyboard and/ or USB mouse port on your console or KVM module, confirming a secure USB handshake. 5) Route the cable neatly along the rack rails, avoid sharp bends, and secure it with ties or clips to prevent interference with airflow or other cabling. 6) Power on the devices and verify that the console recognizes keyboard input, that the video display renders correctly, and that mouse movement is accurately reflected within the host system. If any signal issues arise, re-seat connectors and confirm that the KVM switch and server are configured to use VGA video and USB HID peripherals. 7) If available, adjust KVM switch settings or BIOS/UEFI options to optimize serial and video behavior for your specific hardware configuration.

Frequently asked questions

Q: What devices is this cable compatible with?

A: This KVM cable is designed to work with APC KVM 2G server modules and other KVM switches that support VGA HD-15 video connections and USB keyboard/mouse signaling. It enables a single-cable solution for keyboard, video, and mouse connectivity between a console and a server or KVM switch.

Q: Does the cable support serial management or only basic KVM signals?

A: The product title includes “Serial,” indicating support for serial signal pathways commonly used in KVM and console management. Always verify your specific KVM switch documentation to confirm serial feature compatibility and configuration steps.

Q: Is the cable hot-swappable or reversible if I need to reconfigure my rack?

A: Cable assemblies used in KVM setups are typically designed for repeated connections and disconnections without damaging ports. However, power should be off when making major changes to avoid risk of damage to devices or data.

Q: What about warranty and support?

A: Warranty terms and support are governed by APC by Schneider Electric policies and the specific product listing. For enterprise deployments, verify warranty duration and coverage with your vendor at the time of purchase to ensure alignment with service level expectations.

Q: How long is this cable, and can I replace it with a longer or shorter version?

A: The available product details do not specify length. If you require a particular length, consult the product listing or contact the supplier to confirm length options and compatibility with your rack layout and cable management plan.
