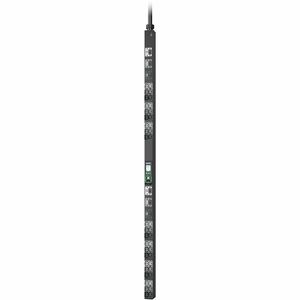

APC by Schneider Electric NetShelter 42-Outlets PDU

The APC by Schneider Electric NetShelter 42-Outlets PDU is engineered for reliability and efficiency, making it the go-to solution for power management in server and networking environments. This robust power distribution unit is designed to ensure that your critical IT systems operate seamlessly, providing exceptional connectivity and metering capabilities. Experience optimal load balancing and management with this cutting-edge PDU, tailored for modern data centers.

• Unparalleled Flexibility: The PDU is equipped with a versatile 4-in-1 combination outlet design, enabling configurations as C13, C19, C15, or C21. This unique feature simplifies installations and increases adaptability for a variety of devices.
• Maximum Outlet Density: With a compact form factor of just 2.2", this PDU houses an impressive 42 outlets, maximizing available rack space while providing sufficient power distribution to multiple devices.
• Enhanced Power Management: Real-time power monitoring is made easy with PDU-level power metering, which can be accessed both remotely and via a local display. This capability offers critical visibility into power usage and helps detect potential overload situations proactively.
• Advanced Load Balancing: The innovative alternating phase design organizes the three phases into smaller outlet groups that alternate from top to bottom. This structure promotes better load balancing and facilitates easier power cord management.
• Reliable Connectivity: The PDU features Gigabit Ethernet and an additional 10/100 Ethernet port, ensuring robust network connectivity and redundancy. This allows for cascading to additional PDUs, expanding your power management capabilities effectively.

Technical Details of APC by Schneider Electric NetShelter 42-Outlets PDU

• Power Input Voltage: 208 V
• Power Output Voltage: 208 V AC
• Total Outlets: 42
• Outlet Types: IEC 60320 C13/C15/C19/C21
• Plug/Connector Type: IEC 60309 60A 3P+PE
• Operating Temperature: Rated up to 60°C (140°F)
• Metering Accuracy: 1%
• Environmental Sensor Ports: 2 (optional sensors sold separately)

How to Install APC by Schneider Electric NetShelter 42-Outlets PDU

Installing the NetShelter PDU is a straightforward process:

1. Identify the desired location within your server or networking rack.
2. Secure the PDU using the mounting brackets provided, ensuring proper alignment within the rack.
3. Connect the inlet plug to your power source, ensuring a stable and safe connection.
4. Connect your devices to the PDU outlets as required, utilizing the flexible outlet design for various plug types.
5. Power on the PDU and verify that all outlets are operational through the local display or remote monitoring tools.
6. For advanced setup, connect Ethernet cables to the appropriate ports for enhanced network management and redundancy.

Frequently Asked Questions

• What is the maximum load capacity of the APC NetShelter PDU? The PDU can handle a maximum load based on its 60A 3P+PE input, ensuring support for multiple devices simultaneously without risk of overloading.
• Can I use this PDU in high-temperature environments? Yes, the APC NetShelter PDU is designed for operation in environments up to 60°C (140°F), making it suitable for high-density deployments.
• What types of outlets are available on this PDU? The PDU features 4-in-1 combination outlets that can be configured as C13, C19, C15, or C21, offering exceptional flexibility for connecting a range of devices.
• How can I monitor power usage? The PDU provides real-time power metering accessible through both local displays and remote access capabilities, giving you vital insights into power consumption and enabling proactive load management.
• Is it easy to replace the Network Management Card? Yes, the Live Swap Network Management Card can be replaced without powering down the PDU or the connected devices, minimizing downtime in the event of a power incident.
