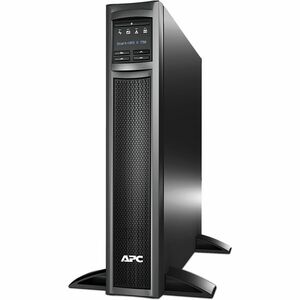

APC by Schneider Electric Smart-UPS SMX 750VA Tower/Rack Convertible UPS

The APC by Schneider Electric Smart-UPS SMX 750VA Tower/Rack Convertible UPS provides a dependable power backup solution essential for maintaining the operational continuity of your critical electronic equipment during power outages. Designed specifically for IT managers and network administrators, this UPS is tailored to protect data transfer and ensure the necessary uptime required in today’s fast-paced environments.

• Pure Sine Wave Output: The 750VA line interactive design delivers pure sine wave power, ensuring sensitive electronics receive clean and stable power during outages.
• Cloud-Based Monitoring: With built-in SmartConnect functionality, you can monitor the UPS performance remotely via cloud-based services, allowing for proactive management of power conditions.
• Multiple Outlets: Equipped with a NEMA 5-15P input and 8x NEMA 5-15R outlets, this UPS enables the connection of multiple devices while ensuring optimal power distribution.
• Enhanced Management Capabilities: The UPS features a SmartSlot for optional Network Management Cards, which enables graceful shutdowns of servers and virtual machines through PowerChute Network Shutdown.
• Emergency Power Off & Warranty: An Emergency Power Off feature allows for safe shutdown during critical situations. The UPS is backed by a 3-year warranty, while the built-in lead-acid battery has a 2-year warranty.

Technical Details of the APC Smart-UPS SMX 750VA

• Model: SMX750VA
• Output Power Capacity: 750 VA / 675 W
• Input Connection: NEMA 5-15P
• Output Connections: 8 NEMA 5-15R
• Dimensions: 10.2 x 17.1 x 3.5 inches (2U Rackmount)
• Weight: 46 lbs (20.87 kg)
• Battery Type: Lead-Acid
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Battery Replacement: User-replaceable

How to Install the APC Smart-UPS SMX 750VA

1. Unbox the UPS and check all included accessories (mounting brackets, stabilizing feet, etc.).
2. If rack-mounting, install the rack-mounting brackets on the UPS using the provided screws.
3. Position the UPS in the desired location (tower or rack) ensuring it is placed in a well-ventilated area.
4. Connect the UPS to a wall outlet using the NEMA 5-15P input plug.
5. Connect your devices to the available NEMA 5-15R outlets, ensuring that the total power does not exceed the specified output capacity.
6. For advanced features, install the optional Network Management Card in the SmartSlot, and connect to your network.
7. Power on the UPS and check the LED indicators for operational status.
8. Configure monitoring and settings through the APC SmartConnect portal for optimal performance.

Frequently Asked Questions

• What is the runtime of the APC Smart-UPS SMX 750VA? The runtime will vary based on the load. At full load (675W), you can expect approximately 8 minutes of backup time. However, with lighter loads, the runtime can extend significantly.
• Can I connect external battery packs to the UPS? Yes, you can add up to 5 external battery packs (SMX48RMBP2U) to extend the runtime significantly during power outages.
• Is installation complicated? No, the installation process is straightforward and can be done by following the provided steps. The UPS also comes with mounting brackets and stabilizing feet for easy setup.
• How do I replace the battery in the UPS? The battery is user-replaceable. Simply follow the instructions in the user manual to safely remove the old battery and install the new one.
• What should I do if I experience a power outage? In the event of a power outage, connect your critical devices to the UPS. The UPS will automatically provide power, allowing you to save your work and safely shut down equipment if the outage lasts longer than expected.
