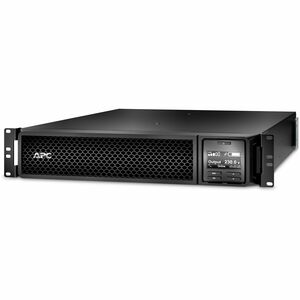

APC by Schneider Electric Smart-UPS SRT 3000VA RM 208/230V IEC

The APC Smart-UPS SRT 3000VA RM 208/230V IEC is engineered for IT professionals and data-center administrators who demand dependable uptime, scalable runtime, and pristine power for sensitive equipment. This online, double-conversion UPS delivers a pure sine wave output to protect servers, storage, switches, routers, and other critical electronics during outages, brownouts, and voltage fluctuations. With a compact 2U rackmount form factor and modular runtime expansion options, it fits seamlessly into space-constrained racks while providing enterprise-grade resilience for both on-premises and remote deployments.

• Pure sine wave, online double-conversion protection ensures clean, continuous power for sensitive equipment, even during voltage sags or outages.
• 2U rackmount form factor with a 3000 VA / 2700 W capacity, designed for dense IT racks, network closets, and server rooms where space matters.
• Global voltage compatibility with 208/230 V input and output, plus automatic voltage regulation (AVR) to stabilize fluctuations without draining battery.
• Expandable runtime with external battery modules and hot-swappable internal batteries, enabling longer backup without service interruptions.
• Comprehensive management options: USB and Serial interfaces included, optional Network Management Card, and compatibility with APC PowerChute and EcoStruxure IT monitoring for centralized control.

Technical Details of APC by Schneider Electric Smart-UPS SRT 3000VA RM 208/230V IEC

• Topology: Online (double-conversion) UPS delivering continuous, clean power to connected equipment.
• VA rating / Output power: 3000 VA / approximately 2700 W, providing robust headroom for peak IT loads.
• Input / Output voltage: 208/230 VAC input; 208/230 VAC output to protect connected devices.
• Frequency: 50/60 Hz auto-sensing with stable output frequency under load changes.
• Form factor: 2U rackmount chassis for 19-inch racks; standard rails included for quick installation.
• Waveform: Pure sine wave at the output, ensuring compatibility with high-precision power requirements.
• Battery system: Sealed lead-acid batteries with hot-swappable capability; replacement batteries and serviceable design for easy maintenance.
• Runtime options: Standard internal batteries provide baseline protection; external battery modules extend runtime for longer outages.
• Protection & monitoring: Surge and short-circuit protection, EMI/RFI filtering, and a front-panel display (where equipped) for real-time status; USB/Serial communications for local management; optional Network Management Card for remote monitoring.
• Environmental specifications: Designed for data-center environments with specified operating temperature and humidity ranges; consultation of the user manual is recommended for exact tolerances.
• Warranty and service: Region-dependent terms; APC typically provides a standard warranty on UPS units with separate coverage for batteries; verify regional terms at the time of purchase.

How to install APC Smart-UPS SRT 3000VA RM 208/230V IEC

Step 1: Prepare the rack and space. Confirm a stable, ventilated 19-inch rack location with adequate airflow around the unit. Gather accessories included with the UPS (rack rails, power cords, and the user guide) and ensure the electrical circuit you plan to use can safely supply 208/230 VAC.

Step 2: Mount the UPS. Attach the included rails and slide the 2U rackmount unit into the rack. Secure all mounting hardware firmly to prevent movement during operation. Verify that the UPS is level and that cables will have a clear path to connect without stressing connectors.

Step 3: Connect the input and load. Connect the UPS input to a suitable 208/230 VAC power circuit using the appropriate utility power cable. Then connect your IT equipment (servers, storage, switches, and network gear) to the UPS output. If you plan to use network devices that require synchronized power for graceful shutdown, attach them to the UPS outlets designed for load distribution.

Step 4: Configure management interfaces. Attach the USB and/or Serial cable to a management workstation for local control. If you require remote monitoring, install the optional Network Management Card and configure it in your network management system. Use PowerChute or compatible APC software to set shutdown policies, notification thresholds, and event logging.

Step 5: Energize and test. Power on the UPS and run a self-test from the front panel LCD (if equipped) or via the management software. Verify that connected equipment remains powered during simulated outages and that the AVR feature stabilizes minor voltage fluctuations without pulling from the battery unnecessarily. Schedule periodic self-tests and battery health checks as part of routine maintenance.

Tip: For extended outages or large IT deployments, consider adding external battery cabinets to the SRT 3000VA RM to achieve the required runtime. Ensure proper ventilation for the rack and adherence to local electrical codes when adding external battery modules or additional cabling.

Frequently asked questions

• Q: What equipment is best protected by the APC Smart-UPS SRT 3000VA RM 208/230V IEC?
  A: This UPS is ideal for servers, storage devices, edge servers, switches, routers, and network appliances that require clean, uninterrupted power and reliable shutdown capabilities during outages or brownouts.
• Q: Can the runtime be extended beyond the internal battery capacity?
  A: Yes. The SRT 3000VA RM supports external battery modules, allowing you to extend backup time to meet your business continuity needs without increasing risk of data loss during longer outages.
• Q: How do I manage and monitor this UPS?
  A: It includes USB and Serial connections for local management. An optional Network Management Card enables remote monitoring over the network and integration with compatible software such as PowerChute or EcoStruxure IT for centralized visibility.
• Q: What voltage and frequency settings should I expect?
  A: The unit accepts 208/230 VAC input with auto-sensing for 50/60 Hz operation. It provides 208/230 VAC output to protected devices, maintaining a stable voltage supply even during fluctuating mains conditions.
• Q: Is this UPS easy to service or replace batteries?
  A: Batteries are designed for hot-swappable replacement in compatible models, simplifying maintenance. For external battery modules and battery-specific service, refer to APC warranted procedures and local service partners.
