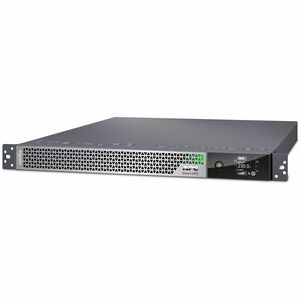

APC by Schneider Electric Smart-UPS Ultra 2200VA Rack-mountable UPS

Protect your most valuable IT assets with the APC Smart-UPS Ultra 2200VA Rack-mountable UPS, a high-capacity uninterruptible power supply designed to fit where traditional units can’t. This compact powerhouse delivers up to 2200 VA (approximately 1980 W) of clean, resilient power, ensuring servers, storage, switches, and networking gear stay online through outages, surges, and brownouts. Built to maximize space efficiency, it weighs less and occupies a smaller footprint than comparable UPS solutions, enabling easy deployment in dense racks, customized workstations, or constrained environments. The Smart-UPS Ultra is engineered for reliability, everyday performance, and simple, flexible installation thanks to its five mounting options and an intuitive auto-rotating LCD that makes monitoring effortless from any configuration. Whether you’re outfitting a data center, a small business IT closet, or a home lab, this UPS is crafted to keep critical workloads moving with minimal disruption.

• Power capacity and efficiency: 2200 VA / ~1980 W with high-efficiency operation to support servers, storage, and network devices while reducing energy costs.
• Flexible mounting: Five mounting styles—rack (2-post and 4-post), tower, wall, ceiling, and desk under mount—so you can install it exactly where you need protection.
• Clean power for sensitive equipment: Pure sine-wave output plus Automatic Voltage Regulation (AVR) delivers consistent voltage to protect components and extend hardware life.
• Smart display and visibility: Auto-rotating LCD provides real-time status, load, and runtime metrics for quick assessment from any orientation.
• Comprehensive management and control: USB and Serial interfaces with optional Network Management Card and PowerChute software compatibility for remote monitoring, shut-down, and alerting.

Technical Details of APC by Schneider Electric Smart-UPS Ultra 2200VA Rack-mountable UPS

• Power capacity: 2200 VA / 1980 W
• Output waveform: Pure sine wave for reliable operation of sensitive IT equipment
• Input voltage: 120 V nominal (auto-sensing) with a broad input voltage window to accommodate fluctuations
• Form factor and mounting: 2U rack-mountable chassis with brackets supporting rack, tower, wall, ceiling, and desk under-mount configurations
• Display: Auto-rotating LCD for easy viewing and quick access to status, load, battery capacity, and estimated runtime
• Battery: Replaceable, hot-swappable sealed lead-acid battery packs designed for long life and simple maintenance
• Protection and regulation: AVR, surge protection, short-circuit protection, overload protection, and automatic self-test
• Management interfaces: USB and Serial ports; optional Network Management Card; PowerChute-compatible software for safe shutdown and remote monitoring
• Operating environment: Designed for reliable operation across typical IT room conditions with recommended temperature and humidity ranges specified by APC

how to install APC by Schneider Electric Smart-UPS Ultra 2200VA Rack-mountable UPS

Installing the Smart-UPS Ultra is designed to be straightforward, whether you’re configuring a rack, mounting on a wall, or placing it under a desk. Follow these steps to ensure a secure and effective setup that delivers maximum uptime:

• Plan your placement: Choose a location that provides adequate airflow, access for cabling, and visibility of the LCD display. Ensure the surrounding environment meets the unit’s operating specifications (temperature, humidity, and ventilation).
• Assemble mounting hardware: Use the provided brackets for your preferred mounting style. If you’re rack-mounting, install the 2-post or 4-post rails as instructed in the user manual, ensuring the UPS is level and securely fastened to prevent vibration.
• Mount the UPS: Attach the UPS to the rack, wall, ceiling, or desk under mount brackets as appropriate. Confirm that the orientation allows for proper airflow and convenient cable routing.
• Connect critical loads: Plug essential devices (servers, networking gear, storage devices) into the UPS outlets. Do not exceed the total rated capacity (VA/W) of the unit to maintain proper protection.
• Connect the input power: Plug the UPS into a properly grounded outlet with the correct voltage. Check that the outlet can support the combined load of connected equipment.
• Establish connectivity: Connect the USB (and Serial, if used) to a management host or server. If you plan centralized management, install the optional Network Management Card according to the instructions.
• Configuration and initial test: Power on the UPS, follow on-screen prompts to calibrate and set input voltage, alarm preferences, and language. Run a self-test to verify operation and confirm communication with connected devices.
• Battery management: If this is a new installation, allow the UPS to initialize battery conditioning by following the LCD prompts. Plan periodic capacity checks and schedule battery replacement as recommended by APC to maintain runtime and reliability.
• Monitoring and automation: Install PowerChute or your preferred power management software to enable automatic safe shutdown, event logging, and alerting. Configure notifications for outages, low battery, and overload conditions.
• Label and document: Clearly label power sources, outlets, and connected equipment. Maintain a brief occupancy log and a post-installation checklist to simplify future maintenance and audits.

Frequently asked questions

• Q: What makes the Smart-UPS Ultra 2200VA suitable for modern IT environments? A: It combines high capacity with flexible mounting options, clean sine-wave output, smart management interfaces, and a compact footprint, making it ideal for servers, storage, switches, and virtualization workloads in tight spaces.
• Q: Can I expand runtime with external batteries or modules? A: The UPS provides internal battery chemistry and hot-swappable packs for extended life and easier replacements; check APC documentation for options compatible with your model and region.
• Q: Is a Network Management Card required for remote monitoring? A: No, USB and Serial interfaces provide local management, but an optional Network Management Card enables centralized, multi-device monitoring across your network.
• Q: How do I know when it’s time to replace the battery? A: The LCD display and monitoring software report battery health and estimated runtime. Most UPS batteries are designed for several years of service, but environmental factors and load impact life.
• Q: What safety features does the Smart-UPS Ultra include? A: It offers surge protection, short-circuit and overload protection, Automatic Voltage Regulation (AVR), thermal protection, and automatic self-test routines to safeguard connected equipment.
