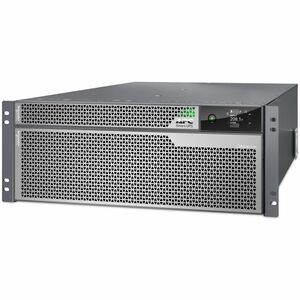

APC by Schneider Electric Smart-UPS Ultra On-Line 10000VA Rack/Tower UPS

Protecting critical equipment and ensuring maximum uptime, the APC Smart-UPS Ultra On-Line 10000VA is a pinnacle of reliability, efficiency, and versatility. This 10kW online UPS is engineered to deliver clean, uninterrupted power to servers, networking gear, storage systems, and sensitive electronics, even in challenging environments. With a compact design that’s 30% smaller and lighter than competing 10 kW models, it fits more places while expanding your protection envelope. The auto-rotating touch screen display makes monitoring and configuration effortless, whether you mount it in a 19-inch rack or position it as a tower. For IT teams and facilities managers, this UPS blends enterprise-grade protection with practical, real-world installation and maintenance benefits.

• High-capacity online power protection: Up to 10,000 VA / 10,000 W of continuous power with online, double-conversion topology. This arrangement isolates sensitive equipment from power disturbances, delivering a stable, clean output that guards against voltage sags, surges, spikes, and outages. The result is reduced risk of data corruption, hardware wear, and unexpected downtime, which is essential for servers, virtualization hosts, NAS devices, and network infrastructure.
• Rack-tower versatility for flexible deployments: A true 2-in-1 solution that easily transitions between 19-inch rack mounting and standalone tower configuration. Whether you’re outfitting a data center rack row, a telecom cabinet, or a quiet office suite, you can adapt the Smart-UPS Ultra to your space without sacrificing performance or accessibility. This mounting flexibility simplifies upgrades and relocations, protecting your investment as your infrastructure evolves.
• Smaller, lighter footprint with no compromise on protection: The 10 kW UPS is engineered to be 30% smaller and lighter than comparable units, enabling faster installation, easier truck-rolls, and reduced space requirements in constrained environments. The compact footprint also translates to easier service access and improved airflow around critical equipment, contributing to overall reliability and environmental tolerance.
• Auto-rotating touchscreen display for effortless management: The built-in, auto-rotating LCD touchscreen presents system status, load levels, battery health, and configuration options in your preferred orientation. This intuitive interface reduces setup time, speeds diagnostics, and enables quick on-site adjustments without needing a laptop or external monitor. Real-time insights help IT staff optimize performance and plan capacity with confidence.
• Smart connectivity and proactive management: Standard and optional communications features empower remote monitoring, alerting, and integration with IT management tools. USB and RS-232 interfaces are available out of the box, with optional Network Management Card support for secure, centralized oversight. Pair with Schneider Electric EcoStruxure IT or other monitoring ecosystems to receive notifications, track runtimes, and forecast capacity needs before issues arise.

Tecnical Details of APC by Schneider Electric Smart-UPS Ultra On-Line 10000VA Rack/tower UPS

• Power rating: 10,000 VA / 10,000 W
• Topology: Online, double-conversion UPS that delivers regulated, low-noise output even during outages
• Input voltage: Configurable 230 VAC nominal (±5%), supports 50/60 Hz operation
• Output voltage: 230 VAC nominal (±5%), with tight voltage regulation to protect connected equipment
• Form factor: Rack/Tower convertible for flexible deployment in data centers, server rooms, and network closets
• Display: Auto-rotating LCD touchscreen for quick status checks and on-device configuration
• Communication options: USB and RS-232 ports; optional Network Management Card for remote monitoring
• Battery system: Hot-swappable, scalable battery modules for extended runtime and easy maintenance
• Efficiency and protection: High-efficiency online operation with comprehensive protection features, including surge, short-circuit, and overload safeguards
• Environment and safety: Designed for reliable operation in typical data center environments with appropriate cooling and ventilation

how to install APC by Schneider Electric Smart-UPS Ultra On-Line 10000VA Rack/tower UPS

Planning the installation begins with choosing a suitable location. For rack mounting, ensure a clean, well-ventilated area in a standard 19-inch rack with adequate clearance around the unit for cooling and cable management. If you prefer a tower configuration, place the UPS on a sturdy, level surface away from direct heat sources, excessive dust, and moisture. The unit should be installed in an accessible area so technicians can reach the service door, batteries, and connection ports without disruption.

Before installation, review the load to be protected. Identify all critical devices—servers, switches, storage appliances, and telecommunications hardware—that will connect to the UPS outlets. Plan outlet distribution to avoid overloading any single branch and leave space for expansion as your environment grows. Uninterruptible protection relies on proper load balance, so distribute equipment accordingly and label cables for easy maintenance.

Unpack and inspect the UPS, batteries, and any optional accessories. If you are using external battery modules, verify they are compatible with the 10 kW model and match the intended runtime. Install or install-out the rack rails if mounting in a rack, following the manufacturer’s guidance for rail placement and securing hardware. For tower setups, ensure the unit sits flat, with stable footing and vibration resistance to prevent movement during operation.

Connect the input power cord to a suitable, properly grounded branch circuit. Do not exceed the recommended input fuse and make sure the circuit can handle the continuous load plus overhead. After wiring the UPS, connect your critical devices to the UPS outlets, leaving nonessential equipment on non-UPS power where possible to optimize battery runtimes. If you are using a Network Management Card or USB connection, install the card per the user manual and install any required management software on your monitoring server or workstation.

Power up the system and verify that the auto-rotation touchscreen displays indicate normal operation. Check for stable voltage output under load, perform a brief simulated outage to confirm automatic transfer to battery, and test the hot-swap battery feature if you have battery modules installed. Finally, create a baseline configuration for alarm thresholds, notification contacts, and automatic shutdown procedures to align the UPS behavior with your IT policy and service-level objectives.

Regular maintenance is essential for peak uptime. Periodically inspect airflow around the unit, confirm all cables remain tidily organized, and review firmware and software updates for the UPS and any monitoring tools. Schedule battery health checks and runtime tests according to your organization’s maintenance calendar. By combining proper installation with ongoing management, the APC Smart-UPS Ultra ensures long-term resilience, reducing the risk of unexpected downtime and enabling faster disaster recovery.

Frequently asked questions

• Q: What is the power capacity of the Smart-UPS Ultra 10000VA?
• A: It provides up to 10,000 VA / 10,000 W of online, continuous power to protect critical equipment from outages and disturbances.
• Q: Can I mount this UPS in a rack and also use it as a tower?
• A: Yes. The Smart-UPS Ultra is designed for rack and tower configurations, offering flexible installation to fit your space and IT layout.
• Q: What kind of display does it have?
• A: It features an auto-rotating touchscreen LCD that provides real-time status, load levels, and configuration options at a glance.
• Q: What monitoring options are available?
• A: Standard USB and RS-232 interfaces are included, with an optional Network Management Card for remote monitoring and integration with IT management platforms.
• Q: Is it possible to expand runtime with additional batteries?
• A: Yes. The system supports hot-swappable, expandable battery modules to extend runtime as your workload grows and downtime tolerance changes.
