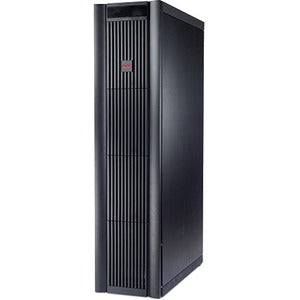

APC by Schneider Electric Smart-UPS VT: Input Transformer MCCB 480/208, 10-30 kVA Floormount

Engineered for mission-critical environments, the APC by Schneider Electric Smart-UPS VT Input Transformer MCCB 480/208 10-30kVA Floormount is a high-performance bypass cabinet solution that delivers resilient power conditioning for data centers, server rooms, and networked environments. This floormount-ready module combines a robust input transformer with a molded case circuit breaker (MCCB) and an integrated bypass cabinet to ensure continuous uptime, streamlined maintenance, and flexible installation. Designed to handle demanding loads with scalable capacity—from 10 kVA up to 30 kVA—the Smart-UPS VT platform provides worry-free protection for your most essential IT and network equipment while optimizing energy efficiency and operational reliability.

• Uninterrupted protection for critical loads with scalable 10–30 kVA capacity, ideal for evolving data centers and edge deployments.
• Integrated 480/208 V input transformer paired with MCCB protection delivers safer, more reliable fault isolation and simplified electrical distribution planning.
• Bypass cabinet design enables maintenance and servicing without interrupting the protected load, minimizing downtime and operational risk.
• Floormount configuration supports convenient deployment in data centers, server rooms, and telecom closets with space-saving, accessible installation.
• Part of the APC Smart-UPS VT family, offering modular growth, advanced power conditioning, and predictable energy efficiency for long-term operational savings.

Technical Details of APC by Schneider Electric Smart-UPS VT Input Transformer MCCB 480/208 10-30kVA Floormount

• Power rating: 10–30 kVA range, designed for mounted installation in data center or enterprise environments to protect critical loads.
• Input transformer: integrated 480/208 V input transformer, enabling flexible connection options and improved fault isolation at the source.
• Protection: MCCB (Molded Case Circuit Breaker) protection for reliable overcurrent protection and safe isolation of electrical circuits.
• Configuration: floormount compatibility for convenient, ground-supported installation in spaces with limited rack depth or raised-floor layouts.
• Bypass cabinet: built-in bypass capability to sustain power to critical equipment during maintenance, reducing downtime and service impact.
• UPS family alignment: compatible with the APC Smart-UPS VT line, offering centralized management, scalable capacity, and consistent performance across deployments.
• Efficiency and performance: designed to deliver dependable power conditioning, surge protection, and voltage stabilization for sensitive IT equipment.

how to install APC by Schneider Electric Smart-UPS VT Input Transformer MCCB 480/208 10-30kVA Floormount

• Plan the installation by confirming Floor load capacity and ensuring there is a stable, level surface capable of supporting the floormount unit with associated weight and ventilation clearances.
• Verify electrical requirements: ensure the site provides a compliant 480/208 V input and appropriate neutral connections, with space for MCCB access and cable entry points.
• Mount the bypass cabinet and transformer assembly to the floor according to local electrical codes and the manufacturer’s installation guide, maintaining clearances for service and cooling.
• Connect input and load cables to the designated MCCB terminals and bus bars, following color-coded wiring practices and ensuring all terminations are secure and compliant.
• Integrate with the UPS system’s control and monitoring interface, enabling seamless coordination between protected loads, bypass capabilities, and system alarms.
• Perform a controlled commissioning test: verify proper bypass operation, confirm voltage and current readings are within specification, and confirm alarm and status indicators function as expected.

Frequently asked questions

• Q: What is the main purpose of the Smart-UPS VT Input Transformer MCCB with a bypass cabinet?
  A: It provides reliable protection for critical loads while allowing maintenance without interrupting power to protected equipment, thanks to an integrated bypass cabinet and robust input transformer with MCCB protection.
• Q: Is this unit suitable for floor-mounted installations in data centers?
  A: Yes. The floormount configuration is specifically designed for easy deployment in data centers, server rooms, and other spaces where wall-mounted or rack-based solutions aren’t ideal.
• Q: What loads can this system protect?
  A: It is intended for critical IT and network equipment, servers, storage devices, and other essential infrastructure that require stable, conditioned power and high availability.
• Q: Does the transformer support 480/208 V input?
A: Yes. The integrated input transformer is designed to work with 480/208 V configurations, enabling flexible integration with common electrical distributions.
• Q: How does the MCCB protection benefit maintenance and safety?
  A: The MCCB provides reliable overcurrent protection and safe isolation for servicing, helping to minimize risk during maintenance and improving overall electrical safety.
