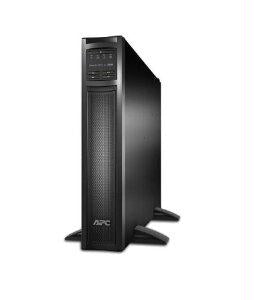

APC Smart-UPS X SMX3000RMLV2U 3000 VA Rack-mount UPS

The APC by Schneider Electric Smart-UPS X SMX3000RMLV2U is the pinnacle of power protection for IT environments that demand uncompromising reliability. Engineered for servers, storage, network gear, and other critical electronics, this 3000 VA rack-mount UPS delivers clean, uninterrupted power with intelligent monitoring and scalable runtime options. Designed for data centers, server closets, and demanding office environments, the SMX3000RMLV2U helps safeguard data integrity, minimize downtime, and extend the life of valuable equipment.

• Online double-conversion topology provides continuous, clean power with a pure sine wave, protecting sensitive equipment from outages, brownouts, and power surges.
• 2U rack-mountable design with hot-swappable batteries and scalable runtime via external battery packs, offering flexible protection for growing workloads.
• Automatic Voltage Regulation (AVR) corrects minor voltage fluctuations without switching to battery, improving efficiency and extending battery life.
• Comprehensive management options including USB, serial, and optional network management interface for remote monitoring, graceful shutdowns, and proactive alerting.
• Energy-efficient operation with built-in diagnostics, load management, and scalable capacity to maximize uptime while reducing maintenance costs.

Technical Details of APC Smart-UPS X SMX3000RMLV2U

• Model: SMX3000RMLV2U
• Power Rating: 3000 VA / 2700 W
• Form Factor: 2U rack-mountable chassis
• Topology: Online double-conversion (double conversion) with pure sine-wave output
• Input Voltage: 100-240 VAC, auto-sensing for 50/60 Hz operation
• Output Voltage: 120/208/230 VAC selectable (model dependent)
• Output Waveform: Pure sine wave for compatibility with all IT loads
• Efficiency: High efficiency in online operation, designed to minimize energy waste
• Battery Type: Hot-swappable, sealed lead-acid batteries for easy field replacement
• Battery Runtime: Runtime is scalable with external battery packs to match workload requirements
• Communication Interfaces: USB, Serial; optional Network Management Card for remote monitoring and control
• Management Software: PowerChute compatibility for graceful shutdowns and energy management
• Protection: Surge protection, short-circuit and overload protection on all outlets
• Diagnostics: Built-in diagnostics and status indicators for proactive maintenance

How to Install APC Smart-UPS X SMX3000RMLV2U

Step 1 — Prepare and inspect: Unbox the unit and verify that all mounting rails and necessary hardware are present. Inspect the UPS and batteries for any shipping damage. Ensure you have appropriate clearance in the rack for ventilation and cable management.

Step 2 — Mount in rack: Install the SMX3000RMLV2U in a suitable 19-inch rack, using the included rack-mount brackets. Position the UPS so that its front-facing status indicators are easily visible. Ensure there is enough space above and below for airflow and maintenance access.

Step 3 — Connect loads and power: Route critical loads (servers, storage, switches) to the UPS output outlets. Connect the UPS to the facility power using the appropriate input configuration (as specified for your region and model). Do not exceed the rated input current.

Step 4 — battery and initial startup: If the unit ships with batteries pre-installed, ensure connections are secure. For field-swappable batteries, install or replace packs as required according to the user manual. Power on the UPS and allow it to perform its self-test. Record any status messages displayed on the LCD or indicators.

Step 5 — connect management and test: Attach USB and/ or serial cables to a management workstation. If using an optional Network Management Card, install it in the dedicated slot and configure network settings. Install PowerChute or your preferred management software, then perform a graceful shutdown test to verify console communication and automatic save-and-shutdown for connected systems.

Step 6 — ongoing maintenance: Schedule periodic battery health checks, firmware updates if available, and runtime validations. Keep a log of events and alarms to anticipate and prevent downtime.

Frequently asked questions

• What workloads is the SMX3000RMLV2U suited for? It is designed for high-availability environments, including servers, data storage systems, network devices, and virtualization hosts that require clean, uninterrupted power and predictable runtimes. Its scalable runtime makes it suitable for mid-to-large data centers and resilient IT closets.
• Can I monitor and control it remotely? Yes. The UPS offers USB and serial connections for direct management, and an optional Network Management Card for remote monitoring over IP. PowerChute software is supported for graceful shutdowns, event logging, and energy management.
• What about battery life and replacement? The SMX3000RMLV2U uses hot-swappable sealed lead-acid batteries, allowing quick replacement without removing the UPS from service. Battery life depends on usage and environment, but regular health checks help maximize lifespan.
• Is this UPS energy efficient? Online double-conversion UPS systems typically deliver high-quality power with strong protection, while advanced designs optimize efficiency during normal operation. AVR reduces energy waste by correcting minor voltage fluctuations without moving to battery.
• Will it protect against data loss during an outage? Yes. When properly configured with shutdown software and properly sized for the connected loads, it provides guaranteed graceful shutdowns, protecting running applications and preventing data corruption.
