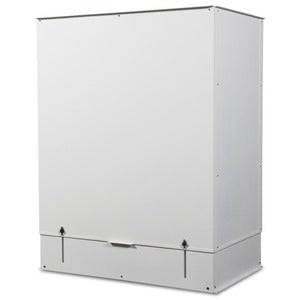

APC by Schneider Electric VED for 600mm Wide Short Range / Vertical Exhaust Duct Kit for SX Enclosure White

Designed to optimize cooling efficiency in data centers and server rooms, the APC VED for 600mm wide SX enclosures is a lightweight, cost-effective solution that helps reclaim hot exhaust air and feed it back into room cooling systems. This Vertical Exhaust Duct (VED) kit is purpose-built to mount to the top rear of NetShelter SX enclosures, delivering a streamlined path for hot air to exit the enclosure and be redirected to the room’s HVAC system. By capturing exhaust close to the source, this kit reduces hotspots, improves fan efficiency, and supports a more stable ambient temperature—key to maintaining equipment reliability and uptime. The white finish blends seamlessly with standard rack aesthetics, minimizing visual impact in data floors and IT closets.

• The VED kit provides an economical, plug-and-play approach to rack cooling management by capturing hot exhaust air at its source and returning it to the room cooling loop, helping to lower operating costs while maintaining optimal equipment temperatures.
• Effortless installation: Designed for NetShelter SX enclosures, the kit mounts to the top rear of the enclosure with minimal tools and no complex wiring, enabling quick deployment in dense data center environments.
• Space-saving, 600mm wide compatibility: Specifically engineered for 600mm-wide SX enclosures, this short-range vertical exhaust duct ensures a tight fit that preserves cabinet space and does not interfere with front-door access or cable management.
• Durable, clean-white finish: The durable white coating resists everyday wear in data center environments and provides a professional, consistent appearance with standard APC NetShelter products.
• Improved reliability and cooling efficiency: By returning heated air to the room, the VED reduces the burden on enclosure fans and the data center HVAC system, promoting longer equipment life, reduced energy usage, and more predictable performance for critical loads.

Technical Details of APC by Schneider Electric VED for 600mm Wide Short Range / Vertical Exhaust Duct Kit for SX Enclosure White

Technical specifications are drawn from APC’s vertical exhaust duct system designed for NetShelter SX, tailored to 600mm-wide enclosures. This section provides high-level details focused on compatibility and usage in standard IT environments. For complete, model-specific data such as exact dimensions, material tolerances, and mounting hardware, consult official product documentation or APC’s specification sheets through your authorized supplier.

how to install APC by Schneider Electric VED for 600mm Wide Short Range / Vertical Exhaust Duct Kit for SX Enclosure

• Prepare the enclosure: Verify the NetShelter SX enclosure is powered down and that the top rear mounting area is clean and free of obstructions. Confirm the 600mm-wide configuration and ensure there is access to the rear exhaust area for duct routing.
• Attach the vertical exhaust duct: Align the VED kit with the top rear of the SX enclosure. Secure the duct assembly using the provided mounting hardware, ensuring a solid, vibration-free installation. Check that the duct is properly oriented to direct exhaust air toward the room’s cooling return path.
• Seal and route: Use compatible fasteners to seal joints and prevent air leaks. Route ducting so that exhaust air travels unobstructed to the room or HVAC intake areas, avoiding sharp bends or kinks that could impede airflow.
• Connect to the room cooling system: If required, tie the duct’s outlet path into an appropriate return air route or room intake to ensure exhausted air re-enters the cooling cycle efficiently. Ensure that there are no blockages or obstacles along the duct path.
• Test and verify: Re-energize the enclosure and monitor intake and exhaust temperatures to confirm improved airflow. Check for any unusual vibrations, noises, or air leaks, and adjust mounting or routing as needed to optimize performance.

Frequently asked questions

What is the APC VED for 600mm Wide SX Enclosures?
It is a vertical exhaust duct kit designed to capture hot air from NetShelter SX enclosures and return it to the room cooling system. This helps manage rack exhaust more efficiently and can improve overall data center cooling performance.

Which enclosure does this kit fit?
This kit is specifically intended for 600mm-wide NetShelter SX enclosures. It is a low-cost, easy-to-install solution for vertical exhaust management in standard IT racks.

How does it affect energy efficiency?
By capturing hot exhaust near its source and routing it back to the room’s cooling system, the VED can reduce the workload on enclosure fans and help HVAC systems operate more efficiently, potentially lowering energy costs and improving temperature stability.

Is professional installation recommended?
The VED is designed for straightforward installation by IT staff or facilities personnel familiar with NetShelter SX products. Ensure safety procedures are followed and power is disconnected during installation to prevent electrical hazards.

Can the kit be used with other APC enclosure lines?
This specific 600mm-wide short-range vertical exhaust duct is intended for NetShelter SX enclosures. Verify compatibility with your enclosure model before installation to ensure proper fit and performance.
