Description

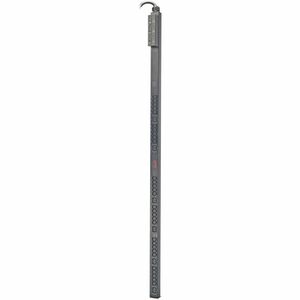

The APC NetShelter Basic Rack Power Distribution Unit (PDU) is engineered for data centers, server rooms, and network closets that demand reliable, scalable power distribution with minimal rack footprint. With its Zero U vertical mounting design, this PDU slides neatly into the back of a NetShelter rack, reclaiming valuable horizontal space for equipment rather than power cabling. Built to support demanding IT loads at 208V, it delivers controlled, organized power distribution across a robust mix of outlets while maintaining straightforward installation and durable construction. Whether you’re provisioning a new rack or upgrading a growing infrastructure, this APC PDU provides the essential power backbone for modern IT deployments.
- Zero U vertical mounting design for maximum rack space efficiency. By occupying no rack unit height, the PDU leaves internal space free for servers, switches, and storage devices while still offering a full complement of outlets and reliable power distribution.
- High-capacity, 208V power with 35A maximum input. Designed to handle dense IT environments, the PDU supports substantial load while remaining compatible with standard data center power distribution practices. Its 208V operation aligns with many enterprise racks and helps optimize power delivery to modern equipment.
- Extensive outlet provision: 30 C13 outlets and 6 C19 outlets. This combination offers versatile connectivity for mixed IT gear, enabling clean, centralized power distribution across a variety of devices—from servers and storage to network switches and appliances—without splicing or daisy-chaining outlets.
- Robust 12.5 kW power rating for scalable growth. The PDU is designed to support current and future rack deployments that may incorporate power-hungry components, giving you headroom for expansion within a single cabinet without replacing the power distribution solution.
- Includes a 3-foot input cord with CS8365 plug for reliable, easy installation. The pre-attached cord simplifies initial setup and ensures a secure, code-compliant connection to the rack’s power source, reducing installation time and cable clutter.
Technical Details of APC NetShelter Basic Rack PDU
- Model / Type: APC NetShelter Basic Rack PDU (Zero U vertical rack-mount design)
- Power rating: 12.5 kW total capacity
- Input voltage / current: 208V operation with a maximum input current of 35A
- Outlets: 30 IEC 60320 C13 outlets and 6 IEC 60320 C19 outlets
- Cord length and plug: 3-foot input cord with CS8365 plug
- Mounting: Zero U vertical mounting to maximize rear rack space and cable management options
- Application: Ideal for data centers, server rooms, and network closets requiring reliable, centralized power distribution for mixed IT equipment
- Brand: APC by Schneider Electric
- UPC / SKU: UPC: not publicly listed; SKU: APC-NS-PDU-208V-12.5kW-30C13-6C19 (not guaranteed from the public specification page)
- Certifications: Not specified in the provided product data
How to install APC NetShelter Basic Rack PDU
Installing the APC NetShelter Basic Rack PDU is a straightforward process designed to minimize rack disruption while delivering dependable power distribution. Follow these general steps to ensure a safe, efficient setup that aligns with typical data center best practices. Note that you should always consult site-specific electrical codes and your facility’s guidelines before performing any electrical work.
- Plan the placement: Determine the ideal position within the NetShelter rack where the Zero U PDU will attach to the vertical rails. Ensure clear access to outlets and adequate clearance behind the equipment for cable routing and airflow.
- Power down and inspect: Before installing, power down related devices if possible and inspect the PDU, cord, and connectors for any shipping damage or manufacturing defects. Do not connect the unit if there are signs of damage.
- Mount the PDU: Slide the Zero U PDU into the rear of the rack along the vertical rails. Align mounting points with the rack’s posts and secure with the appropriate hardware supplied by the manufacturer. The Zero U design means the unit sits flat against the rear interior wall, preserving space for equipment behind it.
- Connect the power input: Plug the 3-foot input cord with CS8365 plug into a suitable utility receptacle or power distribution path that matches 208V and the PDU’s 35A rating. Ensure the power source is switched off during connection and that the connection is tight and secure to prevent arcing or loose contacts.
- Route cables and outlets: Organize the power cords from the PDU outlets to your IT gear. Use cable management features inside the rack to keep cords neatly aligned, reduce cable strain, and promote airflow. Avoid looping cords in a manner that could cause tangling or pull on the outlets.
- Test and label: Power on the PDU and connected devices, then verify each outlet's function with a basic power-on test. Label each outlet group to simplify future maintenance and to facilitate load balancing across the C13 and C19 ports for quick diagnostics.
- Documentation and ongoing management: Keep the PDU documentation accessible and record outlet mappings, load distribution, and any anomalies observed during operation. If your facility uses monitoring software or APC’s management tools, configure those features to track outlet-level status and power usage data over time.
Frequently asked questions
-
Q: How many outlets does this PDU provide and what outlet types are included?
A: It includes 30 IEC 60320 C13 outlets and 6 IEC 60320 C19 outlets for versatile power distribution across mixed IT equipment. -
Q: What voltage and current does the PDU operate at?
A: The unit operates at 208V with a maximum input current of 35A, aligning with common enterprise rack power configurations. -
Q: What is the total power capacity of the PDU?
A: The PDU is rated for 12.5 kW, providing ample headroom for dense IT deployments while maintaining reliable distribution across outlets. -
Q: How long is the input cord and what plug does it use?
A: The input cord is 3 feet long and features a CS8365 plug, designed for quick, secure connection to compatible power sources. -
Q: Does this PDU support Zero U installation?
A: Yes. The Zero U vertical mounting design minimizes rack footprint, making it ideal for installations where rack space is at a premium. -
Q: Is this a smart or managed PDU with remote monitoring?
A: This description covers a basic rack PDU configuration. For monitoring capabilities, you may need to consider APC’s managed or switched PDU options, as the basic model described here emphasizes straightforward power distribution without built-in monitoring features. -
Q: Where can I find the official specifications and SKU details?
A: The most authoritative reference is the product’s specifications page on APC’s ecosystem (and third-party distributors such as ec.synnex). Look for the SKU APC-NS-PDU-208V-12.5kW-30C13-6C19 and verify UPC details from the supplier’s catalog to ensure accuracy for your purchasing records.
