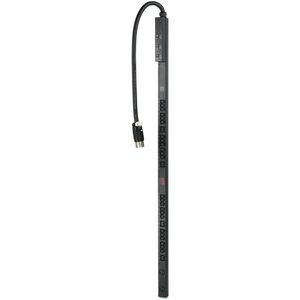

APC NetShelter Basic Rack PDU – Zero U, 14.4kW, 208V

The APC NetShelter Basic Rack PDU is a compact, high-density power distribution solution designed to keep modern data centers orderly while delivering dependable power to essential IT gear. Its Zero U vertical mounting design lets you maximize rack real estate, freeing valuable front-panel space for servers, switches, storage devices, and other critical equipment. With a 14.4 kW capacity at 208V and a diverse outlet mix—including 24 IEC 60320 C13, 4 IEC 60320 C19, and 2 NEMA L6-30R outlets—the PDU provides flexible, scalable power distribution for dense, multi-vendor environments. Engineered for reliability, ease of installation, and streamlined cable management, this unit is an efficient backbone for cohesive data center power architecture that reduces clutter and simplifies maintenance.

• Space-saving Zero U design: Mounts vertically along the back of a standard 19" rack, freeing front-panel space for hot-swappable drives and cable management. This design minimizes footprint while maintaining easy access to outlets and power feeds. By removing the need for additional horizontal space, it supports higher device density and cleaner cable runs, making it ideal for compact rack deployments and tight data center corridors.
• Flexible outlet configuration for diverse equipment: The PDU provides 24 IEC 60320 C13 outlets, 4 IEC 60320 C19 outlets, and 2 NEMA L6-30R outlets, enabling you to connect a wide range of IT devices—from blade servers and storage arrays to network gear and power-hungry switches. The mix supports varied current requirements, simplifies outlet planning, and helps balance loads across critical devices in a single, organized unit.
• Robust power capacity for high-density deployments: With a total capability of 14.4 kW at 208V and a maximum input current of 50 A, this PDU handles multiple devices without frequent circuit trips. The high-density configuration reduces the number of PDUs needed in a single rack, streamlining power management, saving energy, and improving overall data-center efficiency and reliability.
• Durable, easy-to-install corded solution: A 3-foot input cord provides flexible reach to a compatible 208V power source within typical data-center cabinets. The rugged design and plug-and-play compatibility simplify installation and reduce downtime during deployment or upgrades, while withstanding routine handling in busy server rooms.
• Reliability, improved airflow, and cable discipline: Consolidating power distribution into a single Zero U unit reduces cable clutter and supports cleaner airflow behind equipment. This neat, organized layout enhances maintenance efficiency, simplifies troubleshooting, and contributes to consistent thermal performance across the rack, helping to extend equipment life and uptime.

Technical Details of APC NetShelter Basic Rack PDU

• Power rating: 14.4 kW
• Voltage: 208 V
• Maximum input current: 50 A
• Outlets: 24 x IEC 60320 C13; 4 x IEC 60320 C19
• Outlets: 2 x NEMA L6-30R
• Cord length: 3 ft
• Mounting: Zero U vertical mounting
• Mounting compatibility: Fits standard 19" racks and APC NetShelter cabinets where zero-U form factor is supported

How to install APC NetShelter Basic Rack PDU

Installing this PDU is straightforward when you follow proper electrical safety practices and comply with local codes. Use the steps below to guide a smooth deployment in a compatible APC NetShelter or other standard 19" rack system.

• Plan the power distribution layout: Assess your IT load, identify critical devices, and map each outlet bank to a device or group of devices to ensure balanced loads across C13, C19, and L6-30R outlets.
• Prepare the rack and workspace: Confirm the rack is clean, stable, and rated for the weight and mounting method. Ensure the rear space is accessible for the Zero U PDU and that there is adequate clearance for cable routing and future maintenance.
• Power down and safety checks: Before wiring, power down affected equipment and verify the availability of a suitable 208V power source rated for up to 50 A, as specified for the PDU input. Use proper PPE and grounding practices as applicable to your facility.
• Install the Zero U PDU: Insert the PDU into the rack and secure it using the Zero U vertical mounting mechanism per APC NetShelter installation guidelines. Align with the rack’s rails to ensure stable support and easy service access.
• Connect the input power cord: Attach the 3 ft input cord to a suitable 208V power source that can deliver the required current. Ensure the connection is secure and that the cord is routed to minimize tension and avoid interference with airflow or other cables.
• Distribute IT equipment to outlets: Connect servers, switches, storage devices, and other equipment to the appropriate C13, C19, and L6-30R outlets. Distribute loads evenly to prevent overloading any single bank and maintain efficient cooling.
• Verify operation and labeling: Power on the rack and verify that each outlet is delivering power. Check for abnormal heat, unusual smells, or loose connections. Label outlets for easy future reference and maintain a simple power map for the team.
• Document maintenance procedures: Keep a record of outlet assignments, load distribution, and any changes to the rack topology. This documentation supports future upgrades, audits, and fault isolation, reducing downtime and confusion during maintenance.

Tip: Always follow your organization’s electrical safety guidelines and refer to APC’s official installation guides for NetShelter products to ensure compatibility and optimal performance in your environment.

Frequently asked questions

• What outlets does this PDU include? It provides 24 IEC 60320 C13 outlets, 4 IEC 60320 C19 outlets, and 2 NEMA L6-30R outlets for flexible connections to servers, storage, and network gear.
• What is Zero U mounting? Zero U vertical mounting is designed to install along the back of a standard 19" rack, freeing front-panel space and reducing overall rack footprint while maintaining easy access to power connections.
• What is the power rating and input? The unit supports up to 14.4 kW at 208V with a maximum input current of 50 A, making it suitable for high-density deployments in modern data centers.
• What is the length of the power cord? It ships with a 3-foot input cord, offering flexible routing within typical data center cabinets and racks.
• Is this PDU compatible with APC NetShelter? Yes, it is designed to integrate with APC NetShelter cabinets and other standard 19" racks, delivering reliable, scalable power distribution for IT equipment.
