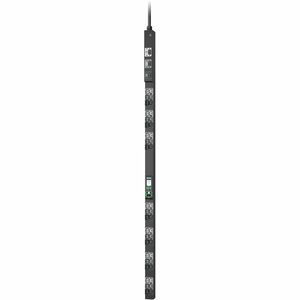

APC NetShelter Rack PDU Advanced, Metered, 3Phase, 8.6kW, 208V 30A, 42 Outlets, L21-30P
Introducing the APC NetShelter Rack PDU Advanced, a high-density, three‑phase power distribution unit designed to power modern data centers and IT rooms with precision and reliability. This metered PDU delivers up to 8.6 kW of continuous power at 208V, draws on a robust 30A supply, and feeds a generous 42 outlets—enabling a clean, scalable power solution for dense server racks. Built to integrate seamlessly with APC NetShelter enclosures, it provides real‑time energy data, dependable protection, and flexible installation that helps IT teams optimize uptime, capacity planning, and energy efficiency across demanding workloads. Whether you’re deploying blade servers, virtualization hosts, network appliances, storage arrays, or edge compute devices, this advanced PDU keeps power organized, monitored, and ready to support peak performance.
- High power capacity for dense IT environments: The PDU delivers 8.6 kW of continuous power at 208V with a 30A, 3‑phase input, enabling you to run multiple servers and network devices from a single, compact unit. Its design is optimized for high-density racks, helping you consolidate power infrastructure without sacrificing reliability or headroom for growth.
- Accurate energy metering for smarter IT operations: As a Metered PDU, it provides real‑time energy usage data that helps data centers and IT teams monitor consumption, balance loads across phases, and identify opportunities for efficiency improvements. With visibility into voltage, current, and power metrics, you can track utilization trends and optimize capacity planning over time.
- Extensive outlet count for flexible deployments: Featuring 42 outlets, this NetShelter PDU Advanced is ideal for powering a mix of servers, storage, switches, and other equipment in a single rack. The generous outlet count supports future expansion and simplifies cabling by consolidating power distribution within the rack space.
- Rugged rack‑mount design built for NetShelter ecosystems: Engineered to partner with APC NetShelter racks, the PDU’s sturdy enclosure, integrated cable management, and mounting hardware deliver dependable performance in data centers and server rooms. Its compact footprint helps optimize floor space while maintaining clean cable organization for airflow and serviceability.
- Remote monitoring and control options for modern IT operations: The Advanced, Metered PDU supports APC’s management ecosystem, enabling remote access to power data and control options through compatible Network Management Cards or management interfaces. This enables proactive alerts, power cycling, and centralized monitoring across multiple PDUs in a single facility.
Technical Details of APC NetShelter Rack PDU Advanced, Metered, 3Phase, 8.6kW, 208V 30A, 42 Outlets, L21-30P
- Input / Input type: L21-30P, 208V, 30A, 3-phase
- Total power capacity: 8.6 kW
- Outlets: 42 outlets configured for IT equipment
- Metering: Metered distribution with real-time energy data
- Mounting: 19-inch rack‑mountable enclosure designed for NetShelter racks
How to install APC NetShelter Rack PDU Advanced
- Plan the installation: Identify a suitable 19-inch rack position within your NetShelter enclosure that allows for balanced airflow and accessible outlet access. Confirm that the rack has adequate space for the PDU, including clearance for cables and serviceability.
- Prepare the rack and permissions: Power down nonessential equipment if you need to reconfigure cabling, and ensure you have the correct mounting hardware and safety procedures in place. Follow your facility’s electrical and rack-mount standards for a safe installation.
- Mount the PDU: Use the included mounting brackets and hardware to secure the PDU firmly into the rack’s 19-inch rails. Verify the orientation supports convenient access to outlets and the metering display, if present, and ensure there is no strain on cables during operation.
- Connect the power input: Connect the L21-30P power cord to a dedicated 208V, 30A three‑phase supply. Ensure the supply aligns with your data center’s electrical distribution and that power is rated for the PDU’s 8.6 kW load.
- Route and label outlets: Neatly route device cords to the 42 outlets, using cable management features to minimize tangling and maximize airflow. Label critical devices to simplify future maintenance and ensure balanced loading across the rack.
- Power up and verify: Restore power and verify that the PDU powers on correctly. Access the metering data through the appropriate management interface or network card to confirm real-time readings align with expectations.
- Configure monitoring (if applicable): If you plan to monitor remotely, install and configure the APC Network Management Card or compatible management solution. Set up alerts, access controls, and data collection to enable proactive power management.
- Test and document: Perform a light-load test by powering on representative equipment and observing the metered data for accuracy. Document your cabling layout, outlet assignments, and monitoring configuration for future reference and audits.
Frequently asked questions
- What is the input plug type of this PDU? This model uses an L21-30P input connection, designed for 208V, 30A three‑phase power. It is intended to feed a high‑density data center rack without requiring an adapter or secondary power distribution.
- How many outlets does the PDU provide? It features 42 outlets, offering ample capacity to power a variety of IT devices within a single rack, simplifying cabling, and reducing the need for multiple power distribution units.
- What does “Metered” mean in this PDU? A metered PDU provides real‑time energy measurements, including current, voltage, and power usage. This enables you to monitor load distribution across phases, optimize energy use, and support capacity planning.
- Can I monitor or control this PDU remotely? Yes. The Advanced PDU supports remote monitoring and control through APC management options, such as a Network Management Card, which provides a web interface, alerting, and power-cycling capabilities for improved uptime and streamlined operations.
- Is this PDU compatible with APC NetShelter racks? Yes. It is designed to integrate seamlessly with APC NetShelter enclosures, ensuring a secure fit, consistent cable management, and reliable performance within APC’s ecosystem.
- What maintenance considerations should I plan for? Regularly review metering data to detect aging equipment or imbalanced loads. Inspect cables for wear, ensure outlets remain accessible, and verify that management interfaces are up to date with firmware releases and security updates.
