Description

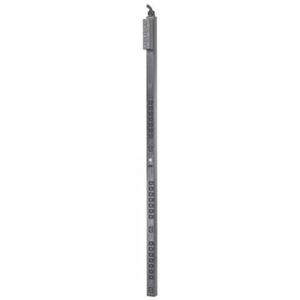

Designed for high-density data centers and enterprise IT deployments, the APC NetShelter Switched Rack PDU delivers intelligent, scalable power distribution with front-and-back access, remote visibility, and granular control. Its Zero U footprint ensures you maximize rack real estate while maintaining robust protection and precise power management for critical equipment. With a 208V input, a maximum 35A current rating, and a total power capacity of 12.5kW, this PDU is built to support a wide range of servers, storage devices, and network gear. The inclusion of 21 IEC 60320 C13 outlets and 3 IEC 60320 C19 outlets offers flexible connectivity for mixed devices, while outlet-level on/off switching and user-defined alarms empower you to optimize load distribution, minimize downtime, and streamline maintenance tasks from a central management point.
- High-capacity, efficient power distribution: Delivers up to 12.5 kW of power at 208V with a maximum current rating of 35A, enabling reliable distribution for multiple servers, storage arrays, and networking equipment within a single rack.
- Zero U footprint for maximum rack space: The Zero U form factor preserves valuable vertical space in your 19-inch rack, allowing you to place more IT gear in the same footprint without sacrificing access to power controls.
- Extensive outlet portfolio for mixed IT loads: 21 IEC 60320 C13 outlets paired with 3 IEC 60320 C19 outlets provide flexible connections to accommodate a wide range of devices, from blade servers to high-performance switches and storage nodes.
- Remote monitoring and alarms for proactive management: Stay informed with remote monitoring capabilities and user-defined alarms that alert you to power events, enabling proactive capacity planning and faster fault isolation.
- Outlet-level on/off switching for granular control: Individually controllable outlets let you isolate, reboot, or cycle specific devices without affecting the entire rack, simplifying maintenance and troubleshooting processes.
Technical Details of APC NetShelter Switched Rack PDU
- Power rating: 12.5 kW
- Maximum current: 35 A
- Input voltage: 208 V
- Outlets: 21 IEC 60320 C13 outlets and 3 IEC 60320 C19 outlets
- Cord length: 3 ft
- Form factor: Zero U
- Remote monitoring: Supported (remote visibility and alerts)
- Alarms: User-defined alarms for power events and thresholds
- Outlet-level switching: Yes, each outlet can be controlled individually
- Mounting: 19-inch rack-compatible design for standard racks
How to install APC NetShelter Switched Rack PDU
- Step 1 — Plan and verify power requirements: Before installation, map the anticipated load across all connected devices. Ensure the total connected load does not exceed 35A at 208V and that the circuit feeding the PDU is correctly protected. Group high-draw equipment (such as blade servers and redundant storage controllers) with appropriately allocated C13 and C19 outlets to minimize risk of overload and to facilitate effective load balancing. Document the distribution plan for future reference and compliance.
- Step 2 — Prepare the rack and hardware: Confirm the rack is a standard 19-inch unit with empty space where the PDU will be mounted. Gather mounting hardware compatible with Zero U PDUs and prepare the area to avoid obstructing airflow or cabling paths. The Zero U footprint means the device does not add height to the rack profile, so plan cable routing accordingly to preserve front-to-back accessibility for maintenance and monitoring.
- Step 3 — Mount the PDU in the rack: Use the supplied mounting hardware to secure the PDU into the rack’s rails. Ensure it is firmly fastened and level to prevent movement during operation or maintenance. The rack should support a robust grounding path and free airflow to maintain optimal operating temperatures for both the PDU and the connected equipment.
- Step 4 — Connect the power input and organize cabling: Connect the 3 ft input cord to a compliant 208V power source, ensuring the connector and outlet are secure. Route the input cable to minimize strain and keep it separate from data cables to avoid interference. Attach IT equipment to the C13 and C19 outlets according to your load plan, distributing high-energy devices away from single-outlet clusters to prevent localized overloading.
- Step 5 — Configure monitoring, alarms, and outlet controls: Access the PDU’s remote management interface or installed management software. Enable remote monitoring features, set up user-defined alarms (for example, overload on a specific outlet or unexpected power drop), and configure outlet-level on/off controls to support scheduled reboots or isolation during maintenance. Save the configuration, test each outlet’s switching function, and verify that alarms are delivered through your preferred management channel.
Frequently asked questions
-
Q: What is the maximum power the APC NetShelter Switched Rack PDU can deliver?
A: It supports up to 12.5 kilowatts of load power on a 208V supply, with a maximum current rating of 35A.
-
Q: How many outlets and what types does this PDU provide?
A: The unit provides 21 IEC 60320 C13 outlets and 3 IEC 60320 C19 outlets, allowing flexible connections for mixed IT equipment.
-
Q: What does Zero U mean for my rack?
A: Zero U indicates a minimal footprint within the rack, designed to maximize available space for IT gear while keeping power connections accessible and organized.
-
Q: Can I monitor the PDU remotely?
A: Yes, the PDU supports remote monitoring and user-defined alarms, enabling proactive capacity planning, faster fault detection, and easier management without on-site visits.
-
Q: Does each outlet support on/off control?
A: Yes, this switched PDU includes outlet-level on/off switching, allowing individual outlets to be controlled for load management, device isolation, and rapid rebooting as needed.
