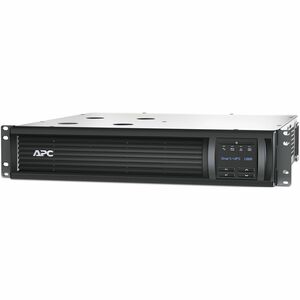

APC Smart-UPS 1000VA Line-Interactive 2U Rackmount, 230V

The APC Smart-UPS is designed for IT professionals who demand dependable power protection for critical workloads. This 1000VA line-interactive UPS in a compact 2U rackmount chassis delivers clean, reliable power to servers, switches, storage, and networking gear, helping you maintain uptime even when the grid falters. With a 230V input, four IEC C13 outlets, a dedicated LCD display, and the versatile SmartSlot for optional management cards, this UPS blends essential protection with scalable network management. It’s an ideal choice for small data centers, server rooms, or any rack environment where space efficiency and uptime are paramount.

• Pure sine wave output to safeguard sensitive electronics during brownouts, surges, and outages, ensuring clean power for servers and networking devices.
• Automatic Voltage Regulation (AVR) to correct input voltage fluctuations without draining the battery, preserving runtime for longer outages.
• LCD status display provides at-a-glance information on load, battery status, input/output voltage, and estimated runtime for quick assessments.
• 2U rackmount form factor with four IEC 320 C13 outlets keeps essential equipment powered in a compact footprint, ideal for crowded racks.
• SmartSlot for expandable management capabilities (with optional APC network management cards) and standard USB/serial connectivity for monitoring and graceful shutdowns.

Technical Details of APC Smart-UPS

• Model: APC Smart-UPS, Line-Interactive, 1000VA, Rackmount 2U, 230V
• Output power capacity: 1000 VA / approximately 700 W
• Input voltage: 230V nominal; C14 input connector for standard rack power
• Output outlets: 4 x IEC 320 C13 outlets for critical devices
• Top-line protection: AVR (Automatic Voltage Regulation) to maintain stable output during voltage swings
• Display: LCD interface shows load, battery level, input/output voltage, and runtime estimates
• Management: SmartSlot for optional APC management cards; USB and Serial connectivity for local management
• Physical design: 2U rackmount chassis designed to fit standard equipment racks with space-efficient deployment
• Battery type: Maintenance-free sealed lead-acid battery bank with replaceable modules when necessary
• Protection and safety: Built-in surge protection and power conditioning to shield connected IT gear

How to Install APC Smart-UPS

Installing the APC Smart-UPS is straightforward and designed to minimize downtime during deployment. Follow these general steps to set up a reliable power protection solution in a rack environment:

1) Prepare the rack and location: Choose a well-ventilated rack space with adequate clearance for cooling and easy access to rear cables. Ensure the area is clean, dry, and free from moisture or heat sources. If you are mounting in a rack, use the included rails and hardware to secure the UPS firmly in place.

2) Connect the input power: Attach the IEC input cord to the C14 input on the UPS and connect the other end to a protected 230V outlet. Verify that the outlet supplies stable voltage within the UPS’s supported range to maximize efficiency and runtime.

3) Connect critical devices: Use the four IEC C13 outlets to power your essential servers, switches, storage arrays, and networking gear. Distribute load evenly to prevent any single outlet from being overloaded and to optimize battery runtime under load.

4) Configure management and monitoring: Connect the USB or Serial port to a management workstation or server. If you plan to use advanced monitoring, install an optional APC management card in the SmartSlot and configure it according to your network management policy. Use the LCD panel to quickly check status or run self-tests.

5) Power-on and test: Turn on the UPS and verify that the LCD displays are active. Run a brief self-test to confirm battery health and output stability. If you are implementing graceful shutdowns, ensure agents or management software are configured to communicate with the UPS for automatic safe shutdown during outages.

6) Routine maintenance and battery care: Periodically test the battery, keep the unit clean from dust, and replace the battery module when indicated by the LCD or management software. Regular maintenance helps ensure consistent performance and prolongs the life of your investment.

Frequently asked questions

• Q: What devices should I connect to the APC Smart-UPS 1000VA? A: Connect critical IT equipment such as servers, switches, storage devices, and network gear that require clean, continuous power to minimize downtime.
• Q: What does the LCD display show? A: The LCD presents load in percent, input and output voltages, battery status, estimated runtime, and other essential UPS health indicators for quick, at-a-glance assessment.
• Q: Can I manage this UPS over the network? A: Yes. The SmartSlot allows optional network management cards, and USB/Serial connections enable local monitoring and shutdown procedures with compatible software.
• Q: What is the runtime like at typical load? A: Run-time varies with load and battery health. At moderate loads, you can expect minutes of runtime to facilitate safe shutdowns and orderly maintenance; higher loads shorten runtime accordingly.
• Q: Is this unit compatible with 230V environments? A: Yes. The 230V nominal input and four IEC C13 outlets are designed for standard 230V data-center racks and equipment.
