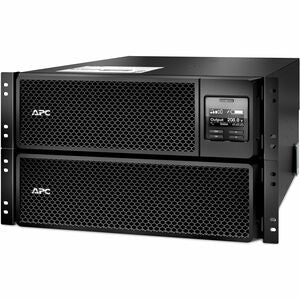

APC Smart-UPS On-Line 10kVA/10kW Rackmount 6U (208V) with Extended Runtime, Rail Kit, Network Card + SmartSlot

This APC Smart-UPS On-Line 10kVA/10kW is engineered for IT professionals and network administrators who cannot compromise on uptime. Built to protect critical equipment in data centers, server rooms, and network closets, this 6U rackmount UPS delivers clean, reliable power with an extended runtime that keeps servers, storage arrays, virtualization hosts, and essential networking gear running through outages and brownouts. Its compact 19-inch, 6U form factor makes it a versatile centerpiece for modern IT deployments, while its modular management options ensure you can tailor monitoring and control to your organization’s technical needs. With L6-20R and L6-30R outlets, a Network Card, a SmartSlot, and a rail kit included, this UPS is ready to secure uptime from installation to recovery.

• Reliability for uptime: On-Line topology delivers continuous, clean power with fast transfer response, protecting sensitive IT gear from voltage sags, spikes, and momentary outages so service levels stay intact.
• High-capacity protection: 10 kVA / 10 kW capacity supports multiple servers, storage devices, network switches, and virtualization hardware within a single enclosure, providing headroom for startup surges and future growth.
• Flexible outlets for mixed loads: 4x L6-20R and 2x L6-30R NEMA outlets accommodate diverse devices and circuit distributions, enabling clean separation of critical and non-critical loads.
• Remote management and smart expansion: Includes a Network Card and a SmartSlot for scalable monitoring, alerting, and integration with your data center infrastructure management (DCIM) tools for proactive control and graceful shutdowns.
• Rack-ready with extended runtime: The 6U rackmount chassis ships with a rail kit for fast installation in a standard 19" rack and supports extended runtime configurations to maintain power during longer outages.

Technical Details of APC Smart-UPS On-Line 10kVA/10kW Rackmount 6U (208V) with Extended Runtime

• Power rating: 10 kVA / 10 kW
• Topology: On-Line UPS delivering pure sine wave power to protect sensitive equipment
• Input voltage: 208 V
• Output voltage: 208 V (regulated for stable, clean power)
• Outlets: 4x L6-20R and 2x L6-30R NEMA outlets to accommodate varied equipment
• Management: Network Card included; SmartSlot for optional expansion cards
• Rack compatibility: 6U rackmount enclosure designed for standard 19" racks
• Rail kit: Includes rail kit for quick, secure mounting in a compatible rack
• Runtime: Supports extended runtime configurations to extend outage protection when needed

how to install APC Smart-UPS On-Line 10kVA/10kW

Install this unit in a well-ventilated, climate-controlled space with adequate clearance for airflow and heat dissipation. Follow these steps to ensure a safe and effective deployment:

• Prepare the rack: Verify the 19" rack has 6U of available space and compatible mounting rails. Confirm venue clearance for installation and maintenance access.
• Mount the UPS: Use the included rail kit to secure the 6U APC Smart-UPS in the rack, ensuring the unit is level and firmly fastened to prevent shifting during operation or earthquakes.
• Connect input power: Route the 208V input connection to a properly rated breaker and supply, following local electrical codes. Use appropriate robust wiring and protective devices as required by your facility standards.
• Connect IT loads: Place servers, storage devices, and networking hardware on the 4x L6-20R and 2x L6-30R outlets. Group critical loads to ensure optimal protection and electrical distribution.
• Configure management: Install the Network Card and any desired SmartSlot expansion, then connect to your management network. Use APC management software or your DCIM tools to configure alerts, shutdown policies, and event logs.
• Power-on and test: Power up the UPS, perform a basic function test, and verify that connected devices receive clean power. Run a battery test and confirm alarms and notifications are functioning as designed.

Frequently asked questions

• Q: What does 10kVA/10kW mean for my system?
• A: It represents the UPS’s apparent power (kVA) and real power (kW) capacity, indicating how much load the UPS can support under normal operating conditions and during startup surges. This model provides substantial headroom for mixed IT loads in a single rack.
• Q: Does this APC Smart-UPS come with remote management features?
• A: Yes. The package includes a Network Card and a SmartSlot for scalable remote management, monitoring, configurable shutdown policies, and alert integration with your network and DCIM solutions.
• Q: Is the rail kit included?
• A: Yes. The rail kit is included to facilitate secure, quick mounting in a standard 19" rack configuration.
• Q: Can I extend the runtime?
• A: The unit supports extended runtime configurations to keep critical devices powered during longer outages; consult APC options to tailor runtime to your environmental and load requirements.
