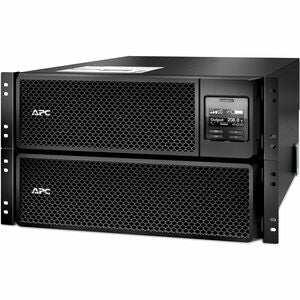

APC Smart-UPS On-Line 10kVA/10kW Rackmount 6U, 208V with 6x L6-30R Outlets, Network Card + SmartSlot, Extended Runtime, Rail Kit

The APC Smart-UPS On-Line 10kVA/10kW is engineered for IT professionals and network administrators who require unwavering uptime and consistent power quality. This 6U rackmount UPS delivers online double-conversion protection with pure sine wave output, ensuring sensitive equipment—from servers and storage to routers and switches—receives clean, stable power even during outages, brownouts, and transient disturbances. Designed for high-demand data centers and edge computing environments, it combines scalable runtime, easy rack integration with the included rail kit, and robust remote management capabilities. With 208V input and six L6-30R NEMA outlets, this UPS is purpose-built to shield critical infrastructure while maximizing operational efficiency and minimizing the risk of data loss.

• Pure sine wave output via online double-conversion topology to protect sensitive IT equipment from voltage sags, surges, and outages, delivering stable voltage and clean power for reliable performance and extended hardware life.
• 208V input and 208V output configuration with 6x L6-30R NEMA outlets, providing high-current protection for racks of servers, storage devices, and network gear in data centers or IT closets.
• 6U rackmount design with an included rail kit for quick, secure installation in standard 19-inch racks, enabling neat cable management and streamlined maintenance in busy data-center environments.
• Network Card + SmartSlot support for remote monitoring, graceful shutdown, and integration with common management software, empowering proactive protection and centralized IT administration.
• Extended runtime capability with modular battery packs, allowing longer uninterrupted operation during extended outages and enabling more time for orderly shutdowns or load shedding as needed.

Technical Details of APC Smart-UPS On-Line 10kVA/10kW

• Power rating: 10 kVA / 10 kW
• Topology: Online double-conversion with pure sine wave output for consistent performance under any load
• Input: 208V AC (auto-sensing), 60 Hz, suitable for data-center distribution and IT racks
• Output: 208V AC nominal, 60 Hz, with regulated voltage to protect connected devices
• Outlets: 6x L6-30R NEMA outlets to support high-current devices and dense rack deployments
• Communications: Network Card + SmartSlot for remote monitoring, alerting, and integration with management software
• Runtime: Extended runtime capabilities via modular battery packs for longer protection times during outages
• Rack compatibility: 6U rackmount enclosure with rail kit included for fast, secure installation

How to install APC Smart-UPS On-Line 10kVA/10kW

• Prepare the rack: Choose a sturdy, level rack with adequate clearance for ventilation, service access, and easy battery replacement.
• Install the rail kit: Attach the included rail kit to the rack rails according to the provided instructions, ensuring alignment for smooth rails and enclosure mounting.
• Mount the UPS: Slide the 6U APC Smart-UPS into the rack rails and secure it with the provided screws or mounting hardware to prevent movement during operation.
• Connect input power: Route the 208V input power through the appropriate L6-30P supply and connect to a suitable circuit with adequate amperage, following local electrical codes and safety procedures.
• Connect loads and outlets: Plug critical devices into the 6x L6-30R outlets, distributing load to prevent overloading any single outlet or phase.
• Install the network card: Insert the Network Card + SmartSlot into the UPS and connect to your network for remote management. Configure via the UPS's web interface or compatible management software.
• Configure runtime and alerts: Set desired runtime extensions, alert thresholds, and shutdown policies; enable PowerChute or equivalent software if applicable, and verify communication with connected devices.
• Perform a self-test: Execute a full self-test to verify battery health, alarm functionality, and correct operation of the transfer switch and output.

Frequently asked questions

• What does 10kVA/10kW mean for my equipment? It indicates the UPS can deliver up to 10 kilowatts of real power to protected devices, with room to spare for startup surges and simultaneous loads. This rating ensures ample margin for critical servers, storage, and networking gear in medium to large IT environments.
• What outlets are included? The unit provides six L6-30R NEMA outlets, designed for high-current loads commonly found in data centers and enterprise networks.
• Can I extend runtime? Yes. The UPS supports extended runtime through modular battery packs, allowing longer protection during outages and more time for orderly shutdowns or load management.
• How does remote monitoring work? The included Network Card + SmartSlot enables remote monitoring, alerting, and integration with standard management software, so you can track health, load, and battery status from a centralized console.
• Is this unit easy to install in a standard rack? Yes. The 6U form factor, along with the included rail kit, is designed for straightforward installation into standard 19-inch IT racks with minimal downtime.
