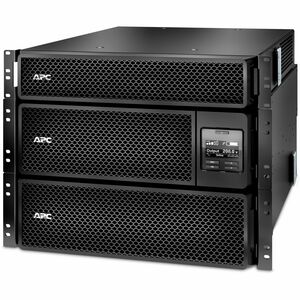

APC Smart-UPS On-Line 8kVA/8kW Rackmount UPS — 208V, 8U with 12x 5-20R, 4x L6-20R, 1x L6-30R, Network Card + SmartSlot, Transformer 208V to 120V, Rail Kit

The APC Smart-UPS On-Line 8kVA/8kW Rackmount is a premium power protection solution engineered for IT professionals, data centers, and enterprise networks that demand highest uptime and pristine power quality. This high-density, 8U rackmount UPS delivers continuous, pure sine wave power through a double-conversion online topology, ensuring sensitive equipment—from rack servers and storage systems to networking gear and virtualization appliances—remains protected during any utility disruption. With a transformer that converts 208V to 120V, integrated Network Card and SmartSlot capabilities, and a versatile outlet configuration that includes 12x 5-20R, 4x L6-20R, and 1x L6-30R NEMA, this UPS offers both reliability and flexibility for demanding IT environments. The included rail kit simplifies rack installation, while a comprehensive management interface enables proactive monitoring and seamless integration with existing IT management workflows.

• Uncompromising power quality: Online double-conversion topology produces a clean, continuous pure sine wave output with tight voltage and frequency regulation, safeguarding sensitive servers, storage devices, switches, and virtualization hardware from brownouts, surges, and outages.
• Robust power capacity and flexible outlet mix: 8kVA / 8kW of scalable protection plus a diverse outlet array—12x 5-20R for general-purpose loads, 4x L6-20R for higher-current equipment, and 1x L6-30R NEMA for essential high-power devices—designed to support mixed IT environments in a single rack.
• 208V to 120V transformer and rack-ready design: Built-in transformer converts 208V input to 120V secondary outputs, enabling compatibility with a broad range of IT gear while maintaining efficient power delivery in data centers and telecom closets. The unit ships with a convenient 19-inch rack footprint and an 8U height, plus a rail kit for straightforward installation.
• Management and expandability: Includes a Network Card and SmartSlot for flexible management and monitoring options, enabling remote visibility, SNMP, email alerts, and integration with existing DCIM or ITSM workflows. Optional accessories and battery extensions provide extended runtime and additional management capabilities as your environment grows.
• Reliability you can count on: Long-life VRLA batteries with hot-swappable options, built-in self-test routines, and protected maintenance features ensure predictable performance and minimized downtime. This UPS is designed for 24/7 operation in mission-critical environments where every minute of uptime matters.

Technical Details of APC Smart-UPS On-Line 8kVA/8kW Rackmount

• Topology: Online double-conversion design delivering continuous pure sine wave power
• Power rating: 8 kVA / 8 kW scalable protection for critical IT loads
• Input: 208V input with compatible hard-wired connections; suitable for data center wiring configurations
• Output: 120V output via internal transformer, with multiple NEMA and L6 connectors to support mixed equipment
• Outlet configuration: 12x 5-20R + 4x L6-20R + 1x L6-30R NEMA
• Rack compatibility: 19-inch rack, 8U height, rails included for quick mounting
• Management: Network Card included; SmartSlot for expandable management; USB and RS-232 compatibility for local management
• Battery system: Sealed VRLA batteries with hot-swappable options and intelligent battery management for longevity
• Battery runtime: Runtime varies by load and battery health; supports external battery modules for extended protection
• Protection and monitoring: Self-test routines, automatic shutdown, alerting, and environmental monitoring support for proactive maintenance
• Enclosure and safety: Rugged rack-mount enclosure designed for continuous operation in IT closets, data centers, and telecom rooms

How to install APC Smart-UPS On-Line 8kVA/8kW

Installing the APC Smart-UPS On-Line 8kVA/8kW in a performance-driven data center or IT rack setup is a straightforward process when you follow these practical steps. The unit ships with a rail kit for 19-inch rack deployment, and the included Network Card and SmartSlot support plug-and-play management integration. Proper installation ensures optimal airflow, accessibility for maintenance, and reliable power delivery to critical equipment.

• Unpack and inspect: Remove packaging and verify that all components are present, including the 19-inch rails, network card, SmartSlot module, and connectors. Check for any visible damage before installation.
• Mount in the rack: Attach the 19-inch rails to your rack’s vertical posts and slide the UPS into position. Secure with appropriate fasteners, ensuring there is adequate clearance for airflow and maintenance access.
• Connect input and output: Connect the 208V input supply to the UPS using the recommended hard-wire configuration or the appropriate transformer interfaces. Connect protected IT loads to the 12x 5-20R outlets, 4x L6-20R outlets, and the 1x L6-30R NEMA outlet as required by your equipment layout.
• Network and management setup: Install the Network Card and SmartSlot module as provided. Connect the UPS to your management network via Ethernet, USB, or RS-232 as supported. Access the UPS management interface to configure IP settings, alerts, shutdown policies, and SNMP credentials.
• Power up and test: Power on the UPS and perform a self-test to verify normal operation. Confirm that all connected devices receive clean, stable power and that the UPS reports healthy battery status. Schedule periodic reviews to monitor runtime, load, and environmental conditions.

Frequently asked questions

• Q: What outlet configuration does this APC Smart-UPS include?
• A: It features 12x 5-20R, 4x L6-20R, and 1x L6-30R NEMA outlets to accommodate a wide range of IT equipment and power needs.
• Q: Does the unit provide true online double-conversion power?
• A: Yes. The APC Smart-UPS On-Line uses online double-conversion to deliver a continuous, clean, surge-free sine wave output regardless of input fluctuations.
• Q: Can I extend runtime if my environment requires longer protection?
• A: Yes. The system supports external battery modules and scalable runtime. Runtime will vary with load, so external modules can provide substantial extension for critical workloads.
• Q: Is network management included?
• A: The package includes a Network Card and a SmartSlot for flexible, scalable management, plus standard USB/RS-232 interfaces for local monitoring and control.
• Q: Does it come with rails and a rack-ready design?
• A: Yes. The unit ships with a rail kit designed for 19-inch racks and a compact 8U footprint, simplifying deployment in data centers, server rooms, and telecom closets.
