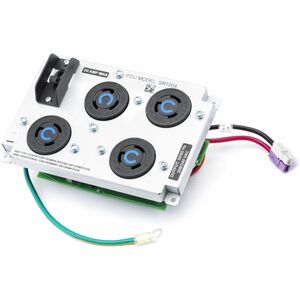

APC Smart-UPS SRT Power Distribution Unit (PDU) – 5kVA, 208V, 4x NEMA L6-20R Outlets

This description highlights the APC Smart-UPS SRT Power Distribution Unit, a purpose-built accessory designed to tailor a Smart-UPS setup to the exact needs of critical IT environments. Built for reliability and efficiency, this 5kVA PDU provides active metering, robust circuit protection, and convenient front-mount installation. With four NEMA L6-20R outlets and a 208V operating profile, it delivers secure, scalable power distribution for servers, networking gear, and other essential equipment in data centers, server rooms, edge locations, and lab environments. By blending advanced power management with flexible mounting options, the APC Smart-UPS SRT PDU helps you optimize energy usage, minimize downtime, and simplify rack-space planning while maintaining peak performance across loads.

• Active metering for energy optimization. Monitor real-time load, voltage, and power quality to make informed decisions that reduce energy costs and extend equipment life.
• 4x NEMA L6-20R outlets. Rugged, locking receptacles provide secure connections and reliable power distribution for critical devices.
• 5kVA capacity at 208V. Scalable power distribution ideal for mid-size IT infrastructures, ensuring headroom for growth and peak demand periods.
• Front-mount design. Simplifies installation in standard racks, keeps outlets accessible, and frees rear space for cabling management and airflow.
• Circuit protection and safety features. Built-in protection against surges, faults, and overloads to safeguard connected equipment and maintain uptime.

Technical Details of APC Smart-UPS SRT Power Distribution Unit

• Get this information from the "specifications" section of the product from https://ec.synnex.com/ using product "UPC" or "SKU" as reference

How to install APC Smart-UPS SRT PDU

Installing the APC Smart-UPS SRT PDU is designed to be straightforward for IT professionals and facility teams. Follow these guidance points to ensure a safe, compliant, and efficient setup that maximizes protection and performance:

• Power down all equipment and verify that the rack and supported devices are within the PDU's electrical ratings before installation. Ensure you have the appropriate safety gear and adhere to local electrical codes.
• Prepare the rack with the correct front-mount orientation. The front-mount design is intended to keep outlets accessible for maintenance and cable management while preserving airflow to surrounding equipment.
• Mount the PDU securely in the rack using the included hardware, aligning the chassis with adjacent units to maintain a clean, organized front face and unobstructed outlets.
• Connect the PDU to the main power source at 208V, respecting polarity and ensuring a stable connection to prevent arcing or loose contacts. Do not exceed the recommended load on any single outlet or limb of the distribution.
• Cable the four NEMA L6-20R outlets to critical devices in a balanced fashion to optimize load distribution across phases. Keep cables tidy and labeled to simplify future maintenance and troubleshooting.
• Enable active metering and protect connected devices by verifying the PDU's indicators or software interface (where applicable). Conduct a controlled power-on test, then monitor load and voltage to confirm proper operation and safety margins.
• Document the installation with rack layout drawings, outlet mappings, and metering configurations to support ongoing energy management and future upgrades.

Frequently asked questions

Q: What outlets are included on the APC Smart-UPS SRT PDU?
A: The unit provides 4x NEMA L6-20R outlets, designed for secure, locking connections that maintain power delivery to critical devices.

Q: What voltage and capacity does this PDU support?
A: It is rated for 208V operation with a 5kVA capacity, suitable for mid-size IT environments and scalable to accommodate growing loads.

Q: How does the active metering benefit my setup?
A: Active metering enables real-time visibility into power usage, load distribution, and voltage quality. This data supports energy optimization, informed capacity planning, and proactive maintenance to reduce waste and downtime.

Q: Can this PDU be mounted in-front of a rack?
A: Yes. The front-mount design is specifically intended to simplify installation, allow easy access to outlets, and improve cable management and airflow within the rack.

Q: Is this PDU compatible with all APC Smart-UPS models?
A: This PDU is designed to work within the APC Smart-UPS ecosystem, particularly where SRT-based configurations are supported. For exact compatibility with your UPS model and rack, consult the official product documentation and specifications.
