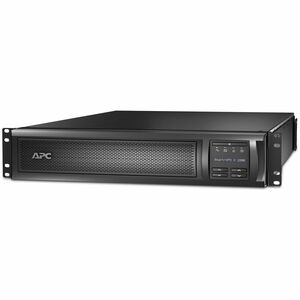

APC Smart-UPS X 2200VA Line-Interactive 2U Rack/Tower UPS with SmartSlot, 100V-127V, 6x 5-15R + 2x 5-20R, Extended Runtime [TAA]

The APC Smart-UPS X 2200VA Line-Interactive UPS is built for IT managers and network administrators who demand reliable uptime, data integrity, and seamless continuity during power disturbances. Designed to protect servers, storage devices, networking gear, and critical telecom equipment, this 2U rack/tower convertible unit delivers pure sine wave power, scalable runtime, and intelligent management features that help you maintain business operations even in prolonged outages. With a compact form factor, flexible mounting options, and SmartSlot modularity, this UPS is ready to adapt to changing data center needs while keeping your most important workloads online and protected.

• Reliable power protection with pure sine wave output: Delivers clean, continuous power to sensitive IT equipment, reducing the risk of data loss and hardware damage during brownouts, surges, and outages.
• Flexible 2U rack/tower design: Mounts in standard 19-inch racks or stands upright as a tower, providing deployment versatility for data centers, edge locations, or office environments.
• SmartSlot for network management: Extend your control with optional management cards for remote monitoring, remote shutdown, and integration with enterprise management workflows.
• Extended runtime ready: Built for longer outages with robust internal battery capacity and the ability to add external battery packs to scale runtime to your business needs.
• Extensive outlet configuration and regional suitability: 100–127V input with 6x 5-15R outlets and 2x 5-20R outlets, sized for common North American IT loads, all protected by a dependable line-interactive design and ENERGY STAR–aligned efficiency in practical use.

Technical Details of APC Smart-UPS X, Line Interactive, 2200VA, Rack/tower convertible 2U, 100V-127V, 6x 5-15R+2x 5-20R NEMA, SmartSlot, Extended runtime [TAA]

• Capacity / Output: 2200 VA / 1980 W (approximate, rated output depends on load and power factor)
• Topology: Line-Interactive with automatic voltage regulation to stabilize incoming voltages and protect attached equipment
• Form Factor: Rack/tower convertible, 2U enclosure for flexible installation in data centers or office environments
• Input Voltage Range: 100–127 V for typical North American power distribution
• Output Waveform: Pure sine wave to ensure compatibility with sensitive servers and networking gear
• Outlet Configuration: 6x 5-15R and 2x 5-20R NEMA receptacles to accommodate a variety of devices and loads
• SmartSlot: Yes, for optional network management card to enable remote monitoring and control
• Connectivity: USB and Serial interfaces for local management and shutdown scripting
• Battery Type: Maintenance-free sealed lead-acid battery designed for reliable performance
• Runtime and Extendability: Internal battery supports outages with potential for extended runtime through external battery packs
• Compliance: TAA-compliant for eligible government and institutional deployments

How to install APC Smart-UPS X

Install this UPS quickly and safely to ensure optimal performance and protection for your IT infrastructure. Start by identifying the mounting option that best fits your environment—whether you plan to rack-mount the unit in a 19-inch cabinet or place it in a secure, elevated workspace as a tower. If rack-mounting, use the appropriate rails and hardware provided or specified by APC for your rack depth. Ensure adequate airflow around the unit and keep it away from heat sources or damp areas to preserve battery life and performance. Once installed, place the UPS on a stable surface or securely in the rack, and connect the UPS to a grounded electrical outlet that matches the 100–127V input specification.

• Connect protected devices to the available outlets (6x 5-15R and 2x 5-20R NEMA) to distribute power to critical servers, network switches, and storage devices.
• Attach the SmartSlot network management card if you need remote monitoring, alerting, or centralized shutdown capabilities across your environment.
• Connect the UPS to your equipment using the appropriate power cables and ensure the load does not exceed the rated 1980 W output.
• Power on the UPS and run a self-test from the front panel or via the management software to verify operation and battery status.
• Configure notification settings, battery alarms, and shutdown scripts to align with your organization’s operational policies.

For ongoing protection, position the UPS so that its front panel is accessible for quick status checks and battery tests. Maintain clear space around the unit to facilitate heat dissipation and to allow easy access to connections. If you anticipate long outages, plan for external battery packs to extend runtime, and verify that the total load remains within the unit’s capacity to avoid overloading the system during power events.

Frequently asked questions

• What kind of power does this UPS provide? It delivers a pure sine wave output, suitable for protecting sensitive IT equipment against power disturbances and outages.
• How many outlets does it have and what are their configurations? It features 6x 5-15R outlets and 2x 5-20R outlets to accommodate a range of devices and power cords commonly used in North American data centers and office environments.
• Can I extend the runtime? Yes. The UPS supports extended runtime through external battery packs in addition to its internal battery, enabling longer outages to be survived without data loss or downtime.
• Is it suitable for 100–127V power regions? Yes. The unit is designed for 100–127V input, making it appropriate for many North American facilities with typical IT loads.
• Does it offer remote management? Yes. The SmartSlot interface enables optional network management cards for remote monitoring, alerting, and graceful shutdown across networks.
