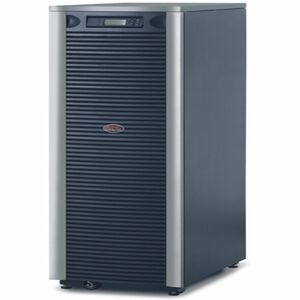

APC Symmetra LX 16kVA Scalable to N+1 Ext. Run Tower UPS

The APC Symmetra LX 16kVA is a high-performance, scalable uninterruptible power supply designed for critical workloads where uptime and power quality are non-negotiable. Built for flexibility, it supports scalable power and redundancy with an N+1 architecture, making it suitable for data centers, server rooms, and telecom environments that demand reliable protection and simple growth. This model combines a tower UPS form factor with a 34U rackmount chassis footprint, offering adaptable deployment in tighter spaces while preserving the robust protection and manageability that APC is known for. With a full load runtime of 33.5 minutes, SNMP manageability, and an included secure management card, it is engineered to keep essential systems running during outages and supply chain disruptions. The design ships with four power modules and nine battery modules and is capable of expanding runtime by adding up to 13 batteries when needed, though those extra batteries are sold separately. This combination of modular power, scalable runtime, and network-managed features makes the Symmetra LX a practical, future-proof solution for growing IT and networking environments.

• Scalable N+1 architecture – Flexible, redundant power configuration that supports growth without compromising uptime. The system is designed to scale while maintaining continuous protection for connected loads.
• Extended runtime options – With 33.5 minutes of full-load runtime and support for up to 13 additional batteries (sold separately), you can tailor runtime to your critical-load window and maintenance schedules.
• Modular power and battery modules – The kit includes 4 Power Modules and 9 Battery Modules, enabling rapid deployment and straightforward serviceability in a 34U chassis or tower configuration.
• SNMP manageability and secure monitoring – Comes with a 1-Year Secure Network Management Card and SNMP-compatible management, simplifying remote monitoring and integration with existing IT management workflows.
• Versatile deployment footprint – 34U rackmount chassis designed for data centers and server rooms, while offering a Tower UPS option to fit spaces where rack mounting is not feasible.

Technical Details of APC Symmetra LX 16kVA

• Capacity: 16 kVA
• Architecture: Scalable to 16kVA N+1 external run configuration
• Runtime at full load: 33.5 minutes
• Management: SNMP manageable with 1-Year Secure Network Management Card included
• Chassis form factor: 34U rackmount UPS chassis (and Tower UPS configuration available)
• Included modules: 4 Power Modules and 9 Battery Modules included
• Battery expansion: Supports up to 13 batteries for extended runtime (sold separately)
• Security and monitoring: 1-Year Secure Network Management Card for secure remote monitoring

How to install APC Symmetra LX 16kVA

• Plan placement and safety: Choose a location with adequate ventilation and access for maintenance. Ensure the installation area complies with local electrical codes and the UPS is placed away from moisture and excessive heat.
• Mounting configuration: Decide between a 34U rackmount setup or a tower orientation based on your space constraints. The Symmetra LX is designed to adapt to both configurations.
• Unpack and inspect: Remove packaging and verify that the unit, power modules, and battery modules are present and undamaged. Confirm the 1-Year Secure Network Management Card is included.
• Connect power modules and batteries: Install the four power modules and nine battery modules as included, following the product’s installation guide. For extended runtime, add up to 13 additional batteries as specified (sold separately).
• Wire input and outputs: Connect the input power cable to a suitable incoming power source and route the protected loads to the UPS outputs. Maintain proper wire sizing and protective devices as per electrical standards.
• Network management setup: Install the Secure Network Management Card if not already installed. Configure SNMP settings and access controls to enable secure remote monitoring and management.
• Initial power-up and testing: Power on the unit, verify alarm indicators, run a self-test, and confirm communication with the management system. Validate that runtimes align with expected values when under load.
• Documentation and ongoing maintenance: Keep a record of serial numbers, module configurations, and battery installation dates. Schedule periodic checks and firmware updates to maintain optimal performance.

Frequently asked questions

• Q: What is the main benefit of the APC Symmetra LX 16kVA? A: It provides a scalable, N+1 capable power protection solution with modular power and battery modules, allowing you to grow capacity and runtime as your IT needs evolve while maintaining high availability.
• Q: How long does it run at full load? A: Up to 33.5 minutes of full-load runtime, with the option to extend by adding additional battery modules (up to 13 batteries, sold separately).
• Q: Is the UPS SNMP manageable? A: Yes. It includes SNMP manageability and a 1-Year Secure Network Management Card to simplify remote monitoring and integration.
• Q: What does the included hardware look like? A: The package includes 4 Power Modules and 9 Battery Modules in a 34U rackmount chassis, designed to be deployed as a scalable, modular UPS system. It also supports an external run configuration for extended protection.
• Q: Can I deploy this as a Tower UPS or a Rackmount UPS? A: Yes. The Symmetra LX is designed to function in a Tower UPS form factor or within a 34U rackmount chassis, offering flexibility for different installation environments.
• Q: Can runtime be expanded? A: Yes. It supports up to 13 additional batteries for extended runtime needs (sold separately).
