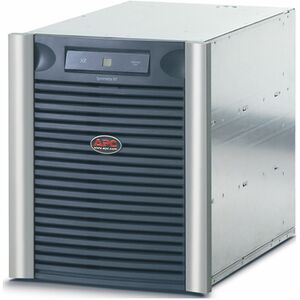

APC SYMMETRA LX 9 BATTERY Rack-Mount XR FRAME, 208V

The APC Symmetra LX 9 Battery Rack-Mount XR Frame in a 208V configuration is designed for data centers, enterprise IT rooms, and telecommunications environments where uptime matters. This ready-to-connect solution extends run power protection for critical servers, storage, networking equipment, and telecom gear, giving you the confidence to operate at peak performance even during extended outages. Built to integrate seamlessly with compatible UPS systems, the XR Frame delivers scalable runtime, flexible installation, and low-maintenance operation that helps your team focus on core workloads rather than emergency power logistics.

• Scalable, modular runtime for uptime that grows with your business. The Symmetra LX architecture is engineered for growth, enabling you to add battery modules as demand increases without replacing the entire power protection system. With the XR Frame design, you can expand runtime while maintaining a compact footprint in standard 19-inch racks. This modular approach means you pay for capacity when you need it and avoid overprovisioning for future requirements. In practice, this translates to a resilient, future-ready power solution that aligns with evolving compute needs, whether you’re hosting virtualized servers, dense blade enclosures, or multi-rack consolidation projects. The ability to scale run time without sacrificing management simplicity makes it ideal for data centers pursuing lean operating costs and high service levels.
• Ready-to-connect installation for fast deployment and minimized downtime. The XR Frame is designed for rapid integration with a compatible APC UPS, reducing project timelines and operational risk. With pre-wired connectors, clearly labeled interfaces, and front-access battery access, technicians can perform installation and maintenance without recourse to heavy disassembly or complex wiring reconfigurations. This streamlined approach is especially valuable in environments where power protection must be brought online quickly during upgrades or new deployments. By combining plug-and-play assembly with robust server-room engineering, you get a turnkey solution that helps you meet uptime targets while keeping change windows short.
• Flexible battery orientation and low self-discharge for dependable readiness. The ability to mount the battery modules in virtually any position adds installation flexibility in constrained rack spaces and unusual room layouts. A low self-discharge characteristic ensures that batteries stay ready for use, reducing the time required to bring protection online after installation or a long idle period. This reliability is critical in environments where continuous protection is essential for maintaining service-level agreements and avoiding data loss. In addition, the sealed or VRLA-style construction (as commonly used in APC solutions) helps minimize maintenance overhead and provides a predictable, maintenance-friendly life cycle for extended protection periods.
• Low-maintenance operation supported by intelligent monitoring and diagnostics. The Symmetra LX XR Frame is designed to reduce ongoing maintenance demands while delivering advanced monitoring capabilities. Built-in health checks, battery status indicators, and remote management interfaces empower IT teams to anticipate issues before they impact uptime. With notifications and dashboards accessible through standard management paths, you can schedule proactive maintenance, plan battery replacements, and optimize run times based on real-world load profiles. This proactive stance translates into fewer emergency service calls and more predictable operating expenses, a key consideration for data centers balancing capex and opex across a growing portfolio of protected workloads.
• Designed for mission-critical workloads across servers, networks, and telecommunications. This 208V-driven XR Frame targets the architectures commonly found in enterprise data centers and network hubs, where demanding workloads rely on uninterrupted power. By delivering extended run protection with a scalable, modular design, the XR Frame helps maintain service levels for critical applications, supports virtualization and cloud readiness, and preserves the integrity of storage, network, and telecom gear during outages. The outcome is a resilient IT environment that supports rapid startup, smooth failover, and consistent performance during unpredictable power events.

Technical Details of APC SYMMETRA LX 9 BATTERY Rack-Mount XR FRAME, 208V

• System Type: Rack-Mount XR Frame for the Symmetra LX family, designed to extend runtime and provide scalable, modular protection.
• Voltage and Interface: 208V configuration with compatible UPS integration; supports seamless communication and management through standard APC interfaces.
• Battery Configuration: Hot-swappable, modular battery cartridges compatible with XR-frame deployment; designed for easy replacement and maintenance without powering down protected loads.
• Mounting and Form Factor: 19-inch rack-mountable XR frame optimized for space efficiency in data center and enterprise environments; front-access battery installation and straightforward rack integration.
• Installation and Maintenance: Ready-to-connect design with rapid deployment in mind; low-maintenance operation aided by battery health monitoring and simplified service procedures.
• Environment and Compliance: Built for reliability in data center conditions, with standard compliance and safety considerations aligned with enterprise-grade power protection gear.

how to install APC SYMMETRA LX 9 BATTERY Rack-Mount XR FRAME, 208V

• Prepare the rack space and verify that the UPS and available electrical feed match the 208V configuration required by the XR Frame. Confirm that the rack is level and that clearances around the equipment meet the manufacturer’s recommendations for airflow and service access.
• Install the XR Frame into the 19-inch rack, aligning mounting rails with standard rack spacing. Secure the frame using the appropriate hardware, ensuring stability to withstand the weight of battery modules and connected equipment.
• Connect the frame to the UPS and to the building power distribution as specified by APC installation guidelines. Use the pre-wired connectors and labeled interfaces to minimize wiring errors and to enable straightforward future expansion.
• Insert the battery modules into the XR Frame, ensuring proper alignment and secure engagement. Position the modules so that any required cooling airflow remains unobstructed and accessible for maintenance checks.
• Power up the system and perform the initial battery test and health checks through the UPS management interface. Review status indicators, verify that runtime and protection features are operating as expected, and configure any alarms or notifications to align with your data center’s monitoring strategy.
• Document the installation with asset tags, serial numbers, and a maintenance schedule. Establish a routine for periodic battery health assessments and firmware updates where applicable to maintain peak performance and reliability over the system’s lifecycle.

Frequently asked questions

• Q: What workloads is the APC Symmetra LX 9 Battery Rack-Mount XR Frame best suited for? A: It is designed for mission-critical environments including servers, storage systems, network devices, and telecommunications equipment where extended run protection and rapid deployment are essential. It suits data centers, enterprise IT rooms, and distributed edge environments that require scalable, reliable power protection and easy integration with a compatible UPS.
• Q: Can I expand runtime after the XR Frame is installed? A: Yes. The modular XR Frame is designed to scale runtime by adding battery cartridges or modules, allowing you to increase protection as load profiles grow without replacing the entire power protection system.
• Q: Is the battery orientation flexible? A: The battery modules are designed for flexible mounting in a variety of positions within the rack, enabling installation in tight or unusual rack layouts while preserving airflow and service access.
• Q: How does installation impact downtime? A: The ready-to-connect design and front-access installation reduce downtime during deployment. With careful planning and adherence to APC’s installation guidelines, you can bring protection online quickly to minimize disruption to critical workloads.
• Q: What maintenance is required after installation? A: Maintenance is typically low, focused on periodic battery health checks, monitoring via the UPS interface, and scheduled firmware or software updates if applicable. Proactive monitoring helps anticipate battery replacements and ensures uninterrupted protection.
