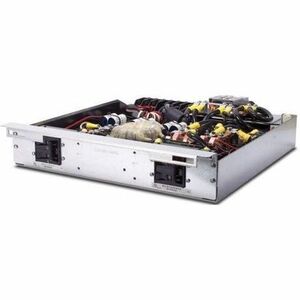

APC Symmetra LX Frame Electronics Module - 200/208V

Protecting critical IT infrastructure demands a highly available power protection solution. The APC Symmetra LX frame electronics module for 200/208V delivers fault-tolerant, scalable, single‑phase power protection with double-conversion online technology. Built for data centers, server rooms, and network closets, this module is designed to maximize uptime while simplifying maintenance and management. The frame electronics module integrates seamlessly with the Symmetra LX family to provide redundant, modular power protection that grows with your environment. Expect clean, uninterrupted power, precise voltage regulation, and dependable performance even under dynamic load conditions.

• The APC Symmetra LX frame electronics module is engineered for high availability, featuring redundant pathways and scalable architecture. This design supports continuous operation during maintenance or partial failures, enabling you to protect your most important workloads without interruption.
• Double-conversion online power protection forms the core of this solution, ensuring that voltage, frequency, and waveform integrity are preserved. With rapid transfer times and negligible anomalies at load changes, your equipment experiences steady power delivery, reducing the risk of data loss or hardware stress during outages or fluctuations.
• Optimized for 200/208V single‑phase input, the module is part of a modular frame that can be expanded as your requirements grow. The hot-swappable, plug-and-play design simplifies maintenance and upgrades, helping you scale capacity without taking the system offline or disrupting critical operations.
• Comprehensive energy management and remote monitoring capabilities help you optimize efficiency and uptime. Real-time status updates, alerts, and integration with power management software enable proactive maintenance, capacity planning, and streamlined incident response across your IT stack.
• Reliability you can trust comes from APC’s engineering heritage, with robust design, rigorous testing, and serviceability built into the Symmetra LX ecosystem. This frame electronics module supports long-term support, spare part availability, and a familiar management interface for data centers and enterprise environments.

Technical Details of APC Symmetra LX frame electronics module- 200/208V

• Model: APC Symmetra LX frame electronics module - 200/208V
• System type: Single‑phase UPS frame electronics module
• Configuration: Redundant, scalable double‑conversion online power protection
• Input voltage: 200–208V AC
• Applications: Data centers, server rooms, network closets requiring high availability
• Management: Supports remote monitoring and management via compatible APC software and interfaces

How to install APC Symmetra LX frame electronics module- 200/208V

• Prepare the installation site: verify that the rack is grounded, the cabinet is clean, and the power distribution environment is compliant with local electrical codes.
• Power down the system and isolate the cabinet to ensure a safe installation window for module insertion and wiring. Follow your facility’s safety procedures before beginning.
• Insert the frame electronics module into the appropriate slot in the Symmetra LX chassis, ensuring proper alignment and secure mounting. Confirm that any hot‑swappable connectors are ready for service without tools or with minimal disruption.
• Connect the input power and load connections as specified by the installation guide for 200/208V single‑phase operation. Double‑check cable routing, strain relief, and labeling to prevent miswiring during future maintenance.
• Power up the unit and run the initial self‑test, then configure the management interfaces and alarms. Verify communication with any network management systems and confirm that monitoring dashboards reflect accurate status and load data.

Frequently asked questions

• Q: What is the APC Symmetra LX frame electronics module designed to protect?
• A: It provides highly available single‑phase power protection with redundant and scalable double‑conversion online technology, suitable for data centers, server rooms, and network environments requiring reliable uptime.
• Q: Is this module compatible with 200/208V systems?
• A: Yes. The module is designed for 200/208V single‑phase operation as part of the Symmetra LX family for modular, scalable protection.
• Q: Can the system be expanded or upgraded easily?
• A: The design emphasizes modularity and hot‑swappable components, enabling scalable growth and easier maintenance without lengthy downtime.
• Q: What management capabilities does it offer?
• A: It supports remote monitoring and management through compatible APC software, providing real‑time status, alerts, and integration with your IT operations.
• Q: How do I install the frame electronics module?
• A: Installation involves preparing the site, safely inserting the module into the Symmetra LX frame, connecting input and load cables, powering on, and configuring management settings and monitoring.
