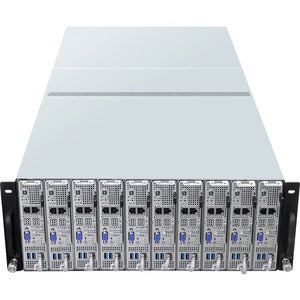

ASRock 4U18N-B550/2T Barebone System: 4U Rack-Mount Ryzen-Ready Server Platform

Engineered for professional workloads and growing data demands, the ASRock 4U18N-B550/2T Barebone System combines a rugged 4U rack-mount chassis with an AMD Ryzen-ready platform. Built around the AMD B550 chipset and Socket AM4 compatibility, this barebone is designed to be the reliable backbone of virtualization hosts, network storage, and high-availability applications. It delivers a balanced blend of CPU-ready performance, memory expansion, and dependable storage connectivity, all in a compact, enterprise-friendly 4U footprint. Whether you are building a compact data center or an edge server for real-time analytics, this barebone system provides the foundational components you need to deploy a robust Ryzen-powered solution with room to scale.

• Powerful Ryzen-ready platform in a 4U rack-mountable chassis. The ASRock 4U18N-B550/2T supports Socket AM4 processors and the AMD B550 chipset, delivering scalable performance for virtualization, media transcoding, and multitasking workloads. It is designed to handle demanding enterprise tasks while keeping energy efficiency in mind, making it a versatile choice for small-to-medium deployments and edge computing needs.
• Expanded memory and speed for memory-intensive workloads. With a maximum of 32 GB DDR4 SDRAM across four DIMM slots and support for DDR4-3200 (PC4-25600), this barebone platform accommodates memory-hungry applications, database caching, and virtualization scenarios that benefit from higher memory bandwidth and capacity. The four-slot design helps maximize density and performance without sacrificing expandability.
• Reliable storage connectivity via Serial ATA/600. The unit includes a Serial ATA controller that supports modern SATA drives, enabling fast data access and reliable storage configuration for NAS, backups, and application data. The combination of 4U form factor and SATA 6Gbps support provides a solid base for data-centric workloads with straightforward expansion options.
• Integrated remote management with ASPEED AST2500 graphics. The ASPEED AST2500 16 MB graphics engine provides enterprise-grade remote management capabilities, enabling out-of-band console access, IPMI features, and streamlined administration. This is a key benefit for data centers and remote sites where hands-off, reliable system management reduces downtime and simplifies operations.
• Versatile use cases and future-ready expansion. This barebone system is ideal for virtualization hosts, file servers, surveillance solutions, and other business-critical deployments. The 4U chassis design supports scalable storage and expansion options, making it easier to tailor the platform to evolving workloads while preserving a compact rack footprint and efficient power consumption.

Technical Details of ASRock 4U18N-B550/2T Barebone System

• Form factor: 4U rack-mountable chassis designed for scalable server deployments.
• Processor support: Socket AM4 compatible with AMD Ryzen processors (Ryzen 9, Ryzen 7, Ryzen 5, Ryzen 3 series) for flexible performance options.
• Chipset: AMD B550 chipset, delivering modern I/O and PCIe support for Ryzen CPUs.
• Memory: Up to 32 GB DDR4 SDRAM across 4 DIMM slots; DDR4-3200/PC4-25600 memory support for balanced speed and capacity.
• Storage controller: Serial ATA/600 controller for reliable SATA storage connectivity.
• Graphics/management: ASPEED AST2500 with 16 MB graphics for robust remote management and console access.
• Expansion and I/O: Rack-mount chassis designed to accommodate additional PCIe expansion as needed; designed for enterprise reliability and scalable configurations.
• Target workloads: Virtualization hosts, network storage, hybrid cloud gateways, and other Ryzen-enabled server workloads that benefit from a 4U form factor.

How to Install ASRock 4U18N-B550/2T Barebone System

The ASRock 4U18N-B550/2T is a barebone system, which means the core chassis and motherboard are provided, but you will need to supply the processor and memory to boot the system. Follow these steps to assemble and deploy a Ryzen-powered server that takes full advantage of the 4U design and remote management capabilities:

First, prepare your components and workspace. Ensure you have a compatible AMD Ryzen processor for Socket AM4,DDR4 memory modules up to 32 GB total, and the storage you plan to use (SATA drives are supported by the built-in controller). Verify that your power supply and rack rails are appropriate for a 4U chassis and that you have the necessary cabling for network, power, and storage connections. If you plan to use the remote management features, have a management network or dedicated IP accessible for IPMI setup.

Install the CPU into the Socket AM4 socket on the motherboard in the barebone chassis. Align the processor correctly according to the socket’s markings and secure the heat sink or cooling solution that accompanies your CPU. Apply thermal interface material as required by your cooler and secure the cooler firmly to ensure proper contact for effective thermal performance. Install the memory modules into the four DIMM slots, ensuring each module is seated completely and in the correct orientation for stability and dual-channel performance.

Next, arrange your storage devices. Connect SATA drives to the Serial ATA/600 controller and mount them in the chassis according to your storage strategy—this could be for OS, data storage, or cache-based configurations. If you plan to boot from an NVMe device through PCIe expansion, install the NVMe drive or add a PCIe adapter in an available expansion slot, keeping in mind power and heat considerations in a 4U environment.

With the components installed, place the motherboard into the chassis and secure it to the rack-mount rails or mounts. Connect the power supply and all required cables for storage, data, network, and management interfaces. Power on the system and enter the BIOS/UEFI to configure basic settings, such as CPU and memory timings, boot order, and NVMe or SATA drive priorities. Update the BIOS if a newer version is available from ASRock to ensure compatibility with the latest Ryzen processors and feature sets.

Configure the ASPEED AST2500-based remote management features by accessing the dedicated management interface. This enables remote console access, sensor monitoring, and out-of-band management for proactive maintenance. Once the OS image is prepared, install your preferred virtualization platform, NAS software, or other server applications. Ensure that your cooling solution maintains safe operating temperatures, especially in a 4U chassis that may house multiple drives and expansion cards.

Finally, verify that all components are operating correctly, run stability and stress tests, and implement appropriate backup and security measures. The Barebone system is designed to be a flexible foundation; plan your expansion path with future needs in mind, such as adding more drives, expanding memory, or integrating additional PCIe cards to support your evolving workloads.

Frequently Asked Questions

• Q: Does this barebone include a CPU or RAM? A: The ASRock 4U18N-B550/2T is a barebone system that requires you to supply a compatible AMD Ryzen processor and memory (up to 32 GB across four DIMMs). It provides the chassis, motherboard, and essential components, plus remote-management capabilities.
• Q: What kind of processors are supported? A: It supports AMD Ryzen processors via the Socket AM4 socket and is built around the AMD B550 chipset, enabling a range of performance levels from entry to high-end Ryzen configurations.
• Q: How much memory can be installed? A: Up to 32 GB of DDR4 memory can be installed across four DIMM slots, with DDR4-3200 (PC4-25600) speed supported for strong bandwidth and responsive multitasking.
• Q: What storage options are available? A: The system includes a Serial ATA/600 controller for SATA drives, providing reliable storage connectivity. Additional storage can be added via expansion slots or PCIe adapters as needed for operating systems and data workloads.
• Q: Is remote management included? A: Yes. The ASRock barebone system includes an ASPEED AST2500 with 16 MB graphics to enable remote management, IPMI, and out-of-band console access, improving reliability and maintainability in data centers and remote sites.
• Q: What are the ideal use cases for this 4U barebone? A: It is well-suited for virtualization hosts, network-attached storage, private cloud gateways, surveillance platforms, and other Ryzen-enabled deployments that benefit from a 4U rack-mount form factor and scalable expansion.
