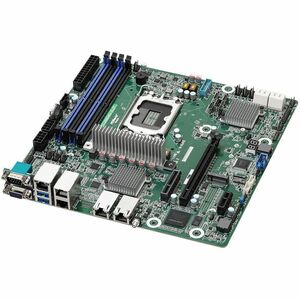

ASRock EC266D4U-2L2T Server Motherboard - Intel C266 Chipset, LGA 1700, Micro ATX

Designed for compact, dependable server deployments, the ASRock EC266D4U-2L2T combines enterprise-ready components with a versatile Micro ATX footprint. Powered by the Intel C266 chipset and the LGA 1700 socket, this motherboard is built to support Intel Xeon E processors and Pentium Gold options, delivering robust performance for small to mid-size business servers, virtualization nodes, and demanding workstations. With 4 memory slots for up to 32 GB of DDR5 SDRAM, a generous assortment of storage options via 8 SATA interfaces, and reliable Gigabit Ethernet, the EC266D4U-2L2T provides a flexible foundation for data-intensive applications, virtualization, backups, and network services. Its compact form factor does not compromise on expandability, making it a smart choice for compact data centers, home lab environments, or rackless server builds that require efficiency, reliability, and straightforward manageability.

• CPU and chipset pairings for scalable performance – Built around the Intel C266 chipset and LGA 1700 socket, this motherboard supports Intel Xeon E processors and Pentium Gold processors, offering dependable performance for server workloads and multi-user environments without sacrificing efficiency.
• DDR5 memory with ample headroom – Four memory slots (DIMM, UDIMM) support up to 32 GB of DDR5 SDRAM, enabling higher bandwidth and improved multitasking for virtualization, databases, and file services while maintaining a compact board footprint.
• Extensive storage capacity – Eight SATA interfaces provide flexible options for data storage, backups, and large media or database arrays, simplifying data management and expanding capacity to fit growing workloads.
• Reliable networking for server tasks – Integrated Gigabit Ethernet delivers steady network connectivity for remote management, file sharing, and data transfers, supporting efficient operation in local networks and data centers.
• Compact, adaptable form factor – Micro ATX form factor with four memory slots and generous connectivity makes it ideal for compact server builds, small data centers, or workstations that need reliable performance in a smaller enclosure.

Technical Details of ASRock EC266D4U-2L2T

• Form factor: Micro ATX
• CPU socket: LGA-1700
• Chipset: Intel C266
• CPU support: Intel Xeon E processors and Pentium Gold processors
• Memory: 32 GB maximum DDR5 SDRAM, 4 DIMM slots, UDIMM
• Memory type: DDR5 SDRAM
• Memory slots: 4 x DIMM slots
• Storage: 8 x SATA interfaces
• Networking: Gigabit Ethernet

How to Install ASRock EC266D4U-2L2T

• 1. Prepare your case or chassis and install the appropriate standoffs for a Micro ATX motherboard, ensuring alignment with the I/O shield.
• 2. Install the processor compatible with the LGA 1700 socket into the CPU socket, following the processor’s orientation indicators and locking mechanism.
• 3. Apply the appropriate amount of thermal paste if your cooling solution requires it, then attach the CPU cooler securely to ensure proper heat dissipation.
• 4. Insert DDR5 memory modules into the 4 DIMM slots, ensuring each module is fully seated and locked in place. Use the recommended memory population order if specified by ASRock’s documentation for optimized performance.
• 5. Mount storage devices to the chassis and connect SATA data cables and power cables to the 8 SATA interfaces on the motherboard, organizing cables for airflow and easy maintenance.
• 6. Install the motherboard into the case, align it with the I/O shield, and secure it with screws through the standoffs to prevent movement.
• 7. Connect power from the power supply to the 24-pin ATX and the 8-pin (or 4-pin) CPU power connectors as required by your PSU and motherboard design.
• 8. Connect network cables, case LEDs, and any additional management or peripheral cables to their respective headers on the motherboard, following the user guide for proper orientation.
• 9. Power on the system and enter the BIOS/UEFI to configure boot order, memory timing, and any server-specific features such as virtualization support or onboard controller settings.
• 10. Install your operating system or hypervisor, update firmware and drivers, and begin deploying virtual machines, storage pools, or other server workloads as needed.
