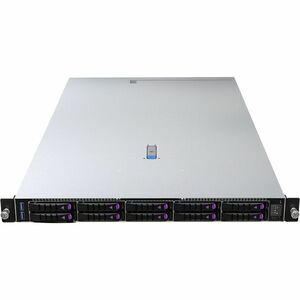

ASRock Rack 1U10E-MILAN2 Barebone System

Engineered for data centers and enterprise workloads, the ASRock Rack 1U10E-MILAN2 Barebone System delivers exceptional density, reliability, and expandability in a compact 1U chassis. Built for dual-processor performance with a socket LGA-4094 platform, this barebone system is designed to support demanding virtualization, high-traffic databases, and compute-intensive workloads while providing flexible storage, fast memory, and robust remote management. With a 1U footprint, it maximizes rack efficiency without compromising processing power, making it an ideal foundation for HPC clusters, private clouds, and enterprise infrastructure.

• Dual-processor architecture: Supports 2 x processors on the LGA-4094 socket, enabling high-core-count performance and parallel processing for virtualization, databases, and multi-workload environments.
• High-capacity memory: DDR4-3200 memory with a total of 256 GB maximum RAM across 32 memory slots, delivering ample headroom for memory-intensive applications and large-scale virtualization.
• Storage versatility: Includes NVMe and Serial ATA/600 controller support with 2 M.2 interfaces, allowing fast OS drives, caching, and data-storage configurations in a compact 1U form factor.
• Remote management and graphics: Features ASPEED AST2500 graphics for robust remote management capabilities and IPMI-based operation, simplifying administration from anywhere in the data center.
• Network-ready and expandable: Equipped with multiple RJ-45 networking options and space for additional expansion, enabling flexible deployment for diverse workloads and data-center networks.

Technical Details of ASRock Rack 1U10E-MILAN2 Barebone System

• Form Factor: 1U Rack-mountable
• CPU Socket: LGA-4094
• Processor Support: 2 x Processors
• Memory Type and Speed: DDR4-3200 / PC4-25600
• Maximum RAM: 256 GB
• Memory Slots: 32
• Storage Controller: NVMe, Serial ATA/600 Controller
• M.2 Interfaces: 2
• Graphics: ASPEED AST2500
• Networking: 2 x RJ-45

How to Install ASRock Rack 1U10E-MILAN2 Barebone System

Installing the ASRock Rack 1U10E-MILAN2 Barebone System involves preparing a compatible data center environment and configuring the chassis for your chosen CPUs, memory, and storage. Follow these general steps to get your barebone system up and running, keeping in mind that this is a chassis platform designed to be populated with CPUs, memory, and drives according to your deployment needs.

• Prepare the environment: Ensure you have a suitable 19-inch rack, a stable power supply, and cooling appropriate for a two-CPU server. Gather standard server installation tools and anti-static precautions before handling components.
• Rack-mount the barebone: Mount the 1U chassis into the rack using the provided rails or mounting hardware. Verify secure attachment and proper rear clearance for cabling and airflow.
• Install processors: Open the CPU sockets LGA-4094 and seat the supported processors according to the manufacturer’s guidance. Apply thermal interface material as required and reseat coolers for optimal heat dissipation. Ensure CPU power connectors are properly seated.
• Populate memory and components: Install DDR4-3200 DIMMs into the 32 memory slots, following the recommended population order for dual-processor configurations. Balance channels per processor to maximize memory bandwidth and stability, up to 256 GB total RAM.
• Configure storage and network: Install NVMe drives and SATA drives on the supported interfaces; insert OS and data drives into the 2 M.2 slots as needed. Connect the two RJ-45 network ports and any management interfaces, then boot to the system BIOS to configure boot order, RAID, and other firmware settings.
• Finalize and test: Save BIOS configurations, install your preferred operating system or hypervisor, and perform validation tests for memory, CPU, and storage performance. Activate IPMI/remote-management features for ongoing monitoring and remote administration.

Frequently asked questions

• Q: What workloads is the ASRock Rack 1U10E-MILAN2 best suited for?
  A: This dual-processor, 1U barebone is designed for virtualization, enterprise databases, HPC, and other demanding workloads that benefit from high core counts, large memory capacity, and flexible storage options.
• Q: How much RAM can it support?
  A: The system supports up to 256 GB of DDR4-3200 memory across 32 slots, providing ample headroom for memory-intensive applications and virtual machines.
• Q: What storage options are available?
  A: It offers NVMe and Serial ATA/600 controllers with 2 M.2 interfaces, enabling fast OS drives, caching, and data storage configurations within a compact 1U footprint.
• Q: Does it include remote management capabilities?
  A: Yes. The ASRock Rack 1U10E-MILAN2 incorporates ASPEED AST2500 graphics for remote management, including IPMI-based administration to monitor and manage the server remotely.
• Q: Is this a complete server or a barebone?
  A: This is a barebone system meant to be populated with compatible CPUs, memory, and storage. It provides the chassis, backplane, and management features; you supply the processors and drives according to your deployment.
