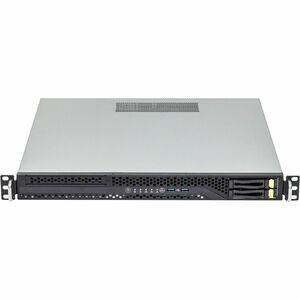

ASRock Rack 1U2E-X570 Barebone System

The ASRock Rack 1U2E-X570 Barebone System delivers a compact, enterprise-grade foundation for modern data centers and edge deployments. Engineered around the AMD X570 chipset with a single Socket AM4 processor, this 1U rack-mountable platform pairs dense rack density with flexible storage and robust remote management. It’s designed for IT teams who want a reliable barebone chassis that they can tailor with their own CPU, memory, and storage to meet virtualization, file serving, or backup workloads. With a focus on reliability, expandability, and easy administration, the 1U2E-X570 is a versatile building block for compact servers, private clouds, or colocation environments. The integrated ASPEED AST2500 management controller supports out-of-band access, remote console, and health monitoring, so administrators can deploy and manage hosts without physical access. Built to handle demanding workloads in a compact footprint, this barebone system blends performance, efficiency, and enterprise-grade features into a scalable 1U solution.

• 1U rack-mountable barebone system designed for dense data center deployments and space-conscious environments.
• CPU and chipset foundation: 1 x Socket AM4 processor support on the AMD X570 chipset, delivering strong performance for virtualization, storage, and multi-service workloads.
• Memory capacity and speed: up to 32 GB DDR4 SDRAM at DDR4-3200/PC4-25600 speeds across 4 memory slots, giving you ample headroom for virtualization, containers, and caching.
• Storage and RAID flexibility: 1 x 3.5" drive bay with Serial ATA/600 RAID support and an NVMe controller for fast boot and data drives, enabling flexible storage configurations for OS, apps, and data.
• Management and graphics: Integrated ASPEED AST2500 graphics/controller for reliable remote management, console access, and system monitoring, complemented by onboard network connectivity suitable for enterprise tasks.

Technical Details of ASRock Rack 1U2E-X570 Barebone System

• Form factor: 1U rack-mountable barebone chassis for space-efficient deployments
• Processor support: 1 x Socket AM4 processor socket (CPU to be supplied by user)
• Chipset: AMD X570
• Memory: 32 GB DDR4 SDRAM maximum, DDR4-3200/PC4-25600, 4 total memory slots
• Storage: 1 x 3.5" drive bay; Serial ATA/600 RAID support; NVMe controller for faster storage options
• Graphics and management: ASPEED AST2500 integrated graphics/management controller for remote access and monitoring
• Networking: onboard network connectivity suitable for standard enterprise networking needs

How to install ASRock Rack 1U2E-X570 Barebone System

• Plan your configuration: Decide on the CPU, memory, and storage you will install in the barebone chassis. Confirm compatibility with the Socket AM4 processor and DDR4 memory supported by the motherboard ecosystem.
• Install the CPU: Power down, remove the access panel, and install your supported AMD Socket AM4 processor into the CPU socket. Apply an appropriate amount of thermal paste and secure the CPU cooler according to your cooling solution’s instructions.
• Populate memory: Insert DDR4 DIMMs into the 4 memory slots, ensuring correct slot population and seating for each module. Confirm the modules are rated for DDR4-3200 speed to achieve the advertised performance.
• Install storage: Place a 3.5" drive into the dedicated bay and connect it to the SATA/RAID controller as required. If using NVMe storage through the motherboard’s NVMe controller, mount and connect the NVMe drive in the proper slot or adapter as supported by the chassis design.
• Connect power and cables: Secure the motherboard inside the 1U chassis, connect the power supply, and route data and management cables (SATA, NVMe, and management interfaces) as appropriate for your rack and cabling standards.
• Configure management and networking: Power on the system and access the ASPEED AST2500 management interface to configure remote management settings, IP address, and monitoring alerts. Ensure network connectivity aligns with your data center routing and security policies.
• Enter BIOS/RAID setup: During boot, enter the system BIOS to configure storage arrays, boot order, and any RAID settings for your desired OS installation. Save changes and reboot to install your operating system.
• Install your operating system: Use your preferred OS installer and complete the installation. After OS installation, install drivers and management software to optimize performance and reliability.

Frequently asked questions

• What does the ASRock Rack 1U2E-X570 Barebone System support?

  The system is a 1U rack-mountable barebone with 1 x Processor Support on the AMD X570 platform. It is designed to be paired with your own CPU, RAM, and storage to fit virtualization, storage, or edge workloads.

• How much memory can I install?

  You can install up to 32 GB of DDR4 SDRAM across four DIMM slots, with memory speeds up to DDR4-3200/PC4-25600, enabling smooth multi-tasking and efficient virtualization workloads.

• What storage options does it offer?

  There is a 3.5" drive bay for traditional HDDs or large-capacity SSDs, along with an NVMe controller for fast NVMe-based storage. The platform also supports Serial ATA/600 RAID configurations for reliable data protection and performance.

• Is remote management available?

  Yes. The integrated ASPEED AST2500 controller provides out-of-band management, remote console access, and health monitoring, which helps administrators deploy and manage the server without direct on-site access.

• What are ideal use cases for this barebone system?

  Because of its compact 1U form factor, AMD X570 platform, and flexible storage, it’s well-suited for virtualization hosts, small-to-mid-size business servers, edge computing nodes, private cloud foundations, and compact file or backup servers in data centers or colocation facilities.
