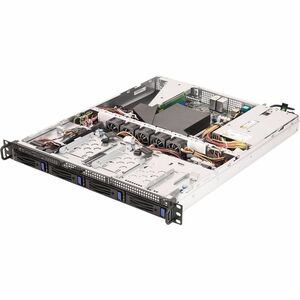

ASRock Rack 1U4LW-X470 Barebone System

Engineered for dense data-center deployments, the ASRock Rack 1U4LW-X470 Barebone System delivers enterprise-grade storage and expandability in a compact 1U form factor. Built to handle virtualization, media streaming, and server workloads with reliability and efficiency, this barebone chassis combines a robust AMD platform with flexible RAM and storage options. Designed for businesses that demand scalable performance in a compact footprint, the 1U4LW-X470 is ready to partner with your choice of drives, operating system, and management tools to deliver consistent performance in rack environments.

• 1U rack-mountable barebone design with 4 x 3.5" drive bays for scalable storage and fast data access across enterprise workloads.
• AMD AM4 Socket with the AMD Promontory X470 chipset powers a compact, efficient platform capable of handling virtualization, database workloads, and file/compute servers.
• Up to 128 GB of DDR4 RAM across 4 DIMM slots with DDR4-3200 speed (PC4-25600) provides ample memory headroom for multiple virtual machines, caching, and memory-intensive applications.
• SATA/600 RAID support combined with an NVMe controller offers flexible storage configurations, high IOPS, and the ability to optimize performance for different workloads, complemented by reliable network connectivity via RJ-45 Ethernet.
• ASPEED AST2500 management controller with 16 MB of video memory enables robust remote management, monitoring, and console access—ideal for unattended rack deployments and data-center operations.

Technical Details of ASRock Rack 1U4LW-X470 Barebone System

• Form factor: 1U rack-mountable
• CPU socket: Socket AM4
• Chipset: AMD Promontory X470
• Memory: 4 x DIMM slots, up to 128 GB DDR4-3200/PC4-25600
• Storage bays: 4 x 3.5" drive bays
• Storage interface: Serial ATA/600 RAID supported; NVMe controller for PCIe-based storage
• Graphics: ASPEED AST2500 with 16 MB VRAM for remote management and console output
• Network: RJ-45 Ethernet port

How to install ASRock Rack 1U4LW-X470 Barebone System

Before you begin, ensure you have compatible components, proper rack installation hardware, and a suitable power supply designed for data-center use. This guide outlines the essential steps to configure a functional rack-ready server using the ASRock Rack 1U4LW-X470 Barebone System.

Step 1: Prepare the chassis and rack. Mount the 1U chassis in your rack using the provided rails and screws. Connect the power supply, network cables, and management connections per your data-center practices. Verify that the rails are secure and that there is adequate clearance for airflow around the chassis.

Step 2: Install the CPU. Access the motherboard inside the barebone, locate the Socket AM4 socket, unlock the lever, and align the processor with the socket markings. Carefully seat the CPU, then secure the lever. If you plan to install a CPU cooler, follow the cooler’s installation instructions to ensure proper contact and clearance within the 1U space. Although this is a barebone, the right processor choice and cooling solution are critical for sustained performance under load.

Step 3: Install memory. Insert DDR4 DIMMs into the four memory slots in the correct seating order. Ensure that modules are fully seated and that the latches are securely engaged. For best stability, use identical memory kits across all slots and adhere to the manufacturer’s guidelines for voltage and timing (DDR4-3200 in this configuration). The 1U4LW-X470 supports up to 128 GB, providing ample headroom for virtualization hosts, caching roles, or small-scale databases.

Step 4: Add storage. Install your 3.5" drives into the four drive bays, securing them with screws as required. If you intend to use NVMe or PCIe-based storage, install the appropriate adapters or add-on cards that are compatible with the NVMe controller and available PCIe slots. For SATA RAID configurations, enter the BIOS/UEFI to configure RAID mode and preferred levels, then connect SATA cables to the drives. Plan your storage topology to balance capacity, performance, and redundancy according to your workload profile.

Step 5: Connect management and networking. Attach the RJ-45 network cable(s) to the system’s Ethernet ports and connect the ASPEED AST2500 management controller to a dedicated management network if you plan remote administration. Power up the system and access the management console to configure IP settings, user accounts, and remote monitoring features. Use the BMC interface provided by the AST2500 to monitor health, temperatures, and fan speeds, and to perform remote console access if required.

Step 6: BIOS/firmware and OS setup. Update the BIOS and BMC firmware if newer versions are available to ensure stability and support for new hardware revisions. Configure boot order, memory profiles, and any RAID or storage controller options you plan to deploy. Install your preferred operating system or virtualization hypervisor, then create and attach your storage resources within the OS. Run basic hardware diagnostics and verify network connectivity to confirm the system is ready for production workloads.

Frequently asked questions

• What is the form factor? 1U rack-mountable barebone system designed for dense server deployments in data centers and edge environments.
• What CPU socket and chipset does it use? It uses an AMD Socket AM4 with the AMD Promontory X470 chipset, delivering a versatile platform compatible with a range of Ryzen-based processors and workloads.
• How much memory can it support? Up to 128 GB of DDR4 RAM across 4 DIMM slots, with support for DDR4-3200 (PC4-25600) configurations to balance performance and efficiency.
• How many storage drives and what RAID options are available? The system provides 4 x 3.5" drive bays and supports Serial ATA/600 RAID configurations. It also includes an NVMe controller for PCIe-based storage acceleration.
• What about management and remote access? The ASPEED AST2500 management controller with 16 MB VRAM enables remote management, monitoring, and console access, making it easier to operate the server from a central management station.
• What network capabilities are included? A built-in RJ-45 network port provides standard Ethernet connectivity for management and data plane traffic, with additional expandability via PCIe as supported by the barebone design.
