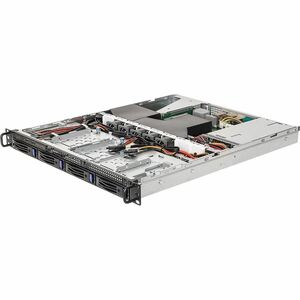

ASRock Rack 1U4LW-X570/2L2T RPSU Barebone System

The ASRock Rack 1U4LW-X570/2L2T RPSU Barebone System is a compact, highly adaptable 1U rack-mountable platform crafted for data centers, edge deployments, and demanding SMB workloads. Built around the AMD X570 chipset with Socket AM4 compatibility, this barebone chassis is designed to host Ryzen processors while providing ample storage, robust remote management, and flexible expansion options. It combines enterprise-grade reliability with a lean form factor, making it a compelling choice for virtualization, file services, media-centric workloads, and lightweight databases that require dependable performance in a space-constrained environment. With four 3.5-inch drive bays, SATA/RAID capabilities, and an integrated management controller, the 1U4LW-X570/2L2T delivers a balanced blend of speed, storage density, and manageability—key for modern server rooms and remote offices where uptime and efficiency matter most.

• Engineered for efficiency and density: A true 1U rack-mountable barebone that fits neatly into standard server rooms and data-center racks, offering a practical balance of storage, performance, and power. Its 1U footprint makes it ideal for multi-node clusters, edge deployments, or compact virtualization hosts, all while preserving room for expansion where needed. The chassis is designed to maximize airflow and thermal efficiency in tight spaces, enabling reliable operation even under sustained workloads.
• Ryzen-ready performance with AMD X570: Powered by the AMD X570 chipset and Socket AM4 compatibility, this barebone system is built to support a range of Ryzen processors. The platform delivers PCIe 4.0 readiness, helping you accelerate storage, networking, and GPU passthrough scenarios. Whether you’re deploying a virtualization host, a performance-focused file server, or a multi-VM lab environment, the 1U4LW-X570/2L2T is structured to deliver responsive performance and scalable headroom as workloads grow.
• Flexible storage and RAID-capable chassis: Equipped with four 3.5-inch drive bays and a SATA/600 RAID-capable controller, the barebone is designed for high-capacity storage configurations. This makes it well-suited for NAS-like services, large media libraries, backups, and data-rich applications that benefit from local disk redundancy and fast SATA performance. The RAID controller supports standard RAID levels, enabling data protection and efficient storage management within a compact 1U enclosure.
• Advanced management and remote access: Featuring an ASPEED AST2500 controller with 16 MB graphics, the system provides robust remote management capabilities. This includes IPMI-based remote console, KVM-over-IP, and other onboard management functions that reduce on-site visits and improve uptime. IT teams gain out-of-band access for monitoring, configuration, and troubleshooting, which is particularly valuable in distributed environments and data-center operations where quick response times matter.
• Networking, RAM, and expandability in a single package: The barebone includes integrated network connectivity via RJ-45 Ethernet and supports DDR4 memory up to 32 GB at DDR4-3200 speeds, enabling responsive multitasking and virtualization workloads. The design also allows for versatile expansion within the 1U form factor, so you can tailor the system to your specific requirements—whether that’s additional storage controllers, network adapters, or other modular components compatible with ASRock Rack platforms.

Technical Details of ASRock Rack 1U4LW-X570/2L2T

• Form Factor: 1U rack-mountable barebone chassis
• CPU Socket: AM4
• Chipset: AMD X570
• Memory: 32 GB DDR4-3200 (PC4-25600) maximum RAM
• Storage Bays: 4 x 3.5" drive bays
• Storage Controller: Serial ATA/600 RAID-supported controller
• Graphics Controller: ASPEED AST2500 with 16 MB graphics
• Networking: RJ-45 Ethernet
• Processor Support: Ryzen processors

How to install ASRock Rack 1U4LW-X570/2L2T

• Step 1 – Prepare your components: Choose a compatible Ryzen processor for Socket AM4 and acquire DDR4 memory up to 32 GB at DDR4-3200. Ensure you have the required power supply, cables, and any preferred RAID or storage hardware ready for installation.
• Step 2 – Install the CPU and memory: Open the CPU socket, install the chosen Ryzen processor securely, and apply thermal interface material as needed. Install the RAM modules into the appropriate DDR4 DIMM slots, ensuring they are fully seated for stable operation. Verify RAM speed settings in the BIOS to match 3200 MT/s if supported by your CPU and motherboard combo.
• Step 3 – Populate storage bays: Insert your 3.5-inch drives into the four drive bays. Attach SATA data cables and power connections to the drives, and connect them to the SATA RAID controller as required. Plan your RAID setup in advance (e.g., RAID 0, 1, or other supported configurations) to optimize redundancy and performance for your workload.
• Step 4 – Assemble and rack-mount: Secure the barebone into your 19-inch rack using appropriate rails or mounting hardware. Route cables neatly to ensure airflow and prevent obstruction of fans or air intakes. Connect power and your management network cables if applicable.
• Step 5 – Configure management and BIOS: Power on the system and access the ASRock Rack BIOS and ASPEED AST2500 management interface. Configure BIOS settings for CPU, memory, and RAID, enable the BMC/IPMI features, and set up remote management preferences. Test the remote console and KVM access to verify that you can monitor hardware health and manage the server without needing physical access.

Frequently asked questions

• Q: Is this a complete server or a barebones chassis? A: This is a barebone system. You will need to add your own Ryzen-compatible CPU, RAM, and storage drives (as well as any preferred power supply, if not included) to complete a functional server.
• Q: What processors are supported? A: The system supports Ryzen processors compatible with the Socket AM4 platform and the AMD X570 chipset. Check CPU compatibility with your BIOS version and ensure cooling solutions meet your thermal design power (TDP) requirements.
• Q: How much memory can I install? A: The chassis supports up to 32 GB of DDR4-3200 memory, allowing for solid multitasking and virtualization workloads within this barebone platform.
• Q: Can I use RAID with the installed drives? A: Yes. The system includes a Serial ATA/600 RAID-capable controller, enabling data protection through RAID configurations according to your storage strategy.
• Q: Does it include remote management? A: Yes. The ASRock Rack 1U4LW-X570/2L2T comes with an ASPEED AST2500 management controller (16 MB) to support remote management, IPMI, and remote console access for hands-off administration and faster troubleshooting in data-center environments.
