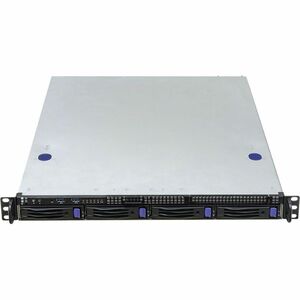

ASRock Rack 1U4LW-X570 RPSU Barebone System - 1U Rack-mountable - Socket AM4
Engineered for flexible, compact data-center deployments and demanding home-lab environments, the ASRock Rack 1U4LW-X570 RPSU Barebone System delivers dependable AMD X570 performance in a space-saving 1U chassis. This barebone server backbone is designed to let system builders tailor CPU, memory, storage, and I/O to exact workloads, from virtualization and media streaming to data-intensive applications. With a robust feature set that includes multiple 3.5" drive bays, PCIe-ready expansion, and enterprise-grade management options, this barebone system helps you deploy powerful servers with precision, reliability, and efficiency.
- Compact 1U rack-mountable chassis with four 3.5" drive bays, delivering versatile storage expansion for databases, backups, and high-availability applications while retaining a slim footprint suitable for dense data centers or dedicated lab racks.
- AMD X570 chipset paired with Socket AM4 support, enabling PCIe 4.0 bandwidth for fast NVMe SSDs and high-speed peripherals, making it ideal for performance-centric workloads and modern single-socket servers.
- DDR4 memory support up to 32 GB across 4 DIMM slots at DDR4-3200 (PC4-25600) speeds, offering ample headroom for virtualization, containers, and memory-intensive services while optimizing read/write performance and server responsiveness.
- Serial ATA/600 RAID-capable storage controller, providing reliable data protection and flexible array configurations to suit backups, archiving, and business continuity requirements in a compact barebone system.
- Integrated ASPEED AST2500 16 MB graphics with remote management capabilities, plus HDMI video output and RJ-45 network connectivity, enabling out-of-band management, monitoring, and easy deployment in rack environments without extra peripherals.
Technical Details of ASRock Rack 1U4LW-X570 RPSU Barebone System
- Form Factor: 1U rack-mountable barebone server chassis designed for tight data-center racks and professional environments.
- CPU Socket: Socket AM4 compatibility, enabling a range of AMD Ryzen-based processors to suit various performance and efficiency targets.
- Chipset: AMD X570 chipset, delivering PCIe 4.0 support and modern I/O capabilities for higher bandwidth storage and faster expansion options.
- Memory: DDR4-3200/PC4-25600 memory support across 4 DIMM slots, with a maximum of 32 GB RAM to balance performance and cost for typical virtualization, database, and file-serving workloads.
- Memory Slots: 4 total memory slots, enabling flexible memory configurations and easy upgrades to meet growing workloads.
- Storage Bays: 4 x 3.5" drive bays for SATA or SAS drives, enabling capacity-rich storage configurations and straightforward RAID planning.
- Storage Controller: Serial ATA/600 RAID supported controller for data protection, drive reliability, and configurable RAID levels suitable for backups and data-intensive applications.
- Graphics/Management: ASPEED AST2500 with 16 MB graphics memory for out-of-band management and remote console functionality, simplifying initial setup and ongoing maintenance.
- Video Output: HDMI available for local console access, enabling quick BIOS access or management display in a maintenance or lab setting.
- Networking: RJ-45 network interface for reliable, standard Ethernet connectivity suitable for data centers, offices, and lab environments.
- Intended Use: Barebone system designed for professional deployments where users supply CPU, memory, and storage to tailor the build to specific workloads and budgets.
How to install ASRock Rack 1U4LW-X570 RPSU Barebone System
- Plan your build by selecting an AMD Ryzen-based CPU compatible with the AM4 socket and the X570 platform, ensuring CPU cooler clearance and motherboard mounting align with the 1U chassis.
- Install the CPU into the AM4 socket, apply thermal paste as needed, and attach an appropriate heatsink or air cooler designed for 1U deployments to maintain stable temperatures in dense racks.
- Install memory modules into the 4 DIMM slots, following the motherboard’s dual/quad-channel population recommendations to maximize memory bandwidth and performance.
- Organize storage by placing SATA or SATA/SAS drives into the four 3.5" bays, then connect the SATA data and power cables, and configure the RAID controller for the desired redundancy and performance profile.
- Connect the barebone system to power, attach network cables to the RJ-45 port, and utilize the ASPEED AST2500 remote management features for initial BIOS configuration, remote console access, and firmware updates.
- Power on the system, enter the BIOS/UEFI to configure boot devices, RAID settings, and memory timings if needed, then install your preferred operating system or hypervisor to finalize the server deployment.
- During setup, use the HDMI output for local console access if required, and leverage out-of-band management to monitor hardware health, drive statuses, and thermals as you scale the deployment.
Frequently asked questions
- Q: Is this a complete server or a barebone kit? A: This is a barebone system. CPU, RAM, and drives must be provided by the user to complete the build according to workload requirements.
- Q: What kind of CPU is supported? A: It supports AMD Ryzen-based processors that match the Socket AM4 interface on the AMD X570 platform, allowing for a range of performance choices from efficiency-oriented to high-core-count configurations depending on the chosen CPU.
- Q: How much memory can I install? A: Up to 32 GB of DDR4 RAM across 4 DIMM slots, with DDR4-3200 (PC4-25600) speed to ensure good memory bandwidth for virtualization and data-intensive tasks.
- Q: How many drives can I install? A: The system provides 4 x 3.5" drive bays, enabling rich storage capacity and flexible RAID configurations suitable for backups, archives, and large databases.
- Q: Does it include remote management features? A: Yes, the ASPEED AST2500 controller provides out-of-band management, with HDMI for local console access and a reliable RJ-45 network interface for remote monitoring and administration.
- Q: Is PCIe 4.0 supported? A: With the AMD X570 chipset, PCIe 4.0 support is available for compatible devices, delivering higher bandwidth for NVMe storage and expansion cards.
