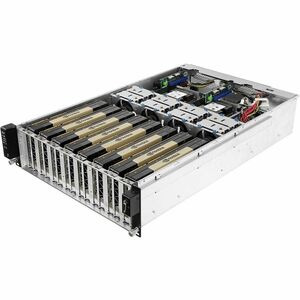

ASRock Rack 3U8G+/C621 Barebone System

The ASRock Rack 3U8G+/C621 Barebone System is a high-density 3U server chassis engineered for data centers, virtualization hubs, and enterprise storage deployments. Featuring dual processor support and a robust Intel C621 chipset, this barebone chassis delivers scalable compute, flexible storage options, and enterprise-grade remote management in a compact, rack-mountable design. Built to integrate seamlessly with existing server ecosystems, it is a reliable foundation for virtualization clusters, private clouds, media services, and data-intensive applications.

• Dual-processor capability: Supports 2 processors to handle multi-threaded workloads, virtualization, and high-availability configurations, backed by the Intel C621 chipset for solid reliability and scalability.
• 3U rack-mountable design: A space-efficient chassis that fits standard 19-inch data-center racks, enabling dense deployments and straightforward cabling for streamlined administration.
• Memory architecture: DDR4 SDRAM DDR4-2666/PC4-21300 with 16 total memory slots, allowing expansive memory configurations to accelerate virtualization, databases, and memory-intensive applications.
• Comprehensive storage options: Serial ATA/600 plus a 12Gb/s SAS controller provide flexible connectivity for HDDs and SSDs, supporting performance-tuned storage pools and scalable data access.
• Management and onboard graphics: ASPEED AST2500 4 GB graphics engine enables robust remote management and console redirection, while an RJ-45 network interface ensures dependable connectivity for administration and data transfer.

Technical Details of ASRock Rack 3U8G+/C621 Barebone System

• Form factor: 3U rack-mountable chassis designed for standard data-center racks.
• CPU support: 2 processor sockets (2 x Processor) compatible with enterprise-grade CPUs via the Intel C621 chipset.
• Chipset: Intel C621, engineered to support dual-socket server configurations and demanding workloads.
• Memory: DDR4 SDRAM DDR4-2666/PC4-21300 across 16 memory slots, enabling expansive memory configurations and high bandwidth for virtualization and databases.
• Storage controller: Serial ATA/600 and 12Gb/s SAS controller for flexible drive configurations and rapid data access.
• Graphics: ASPEED AST2500 4 GB graphics for remote management, console rendering, and IPMI-based administration.
• Networking: RJ-45 onboard network interface for reliable data and management connectivity.
• Expansion/storage interface: 1 x M.2 interface for OS drive, caching, or acceleration purposes.

How to Install ASRock Rack 3U8G+/C621 Barebone System

Preparing for installation requires a compatible 3U rack enclosure, appropriate cooling, and the server components that will populate the chassis. This guide provides a high-level process to help you assemble and configure the barebone system for a production environment. Always refer to the official motherboard and chassis manuals for specific tolerances and procedures.

Step 1 — Rack alignment and chassis preparation: Position the ASRock Rack 3U8G+/C621 barebone into a standard 19-inch rack. Align mounting rails and secure the chassis to maintain stable airflow and ease of access for maintenance tasks.

Step 2 — Install processors: Insert the two supported processors into the CPU sockets according to the motherboard’s installation method. Apply thermal interface material as required and attach the cooling solution specified for your CPUs. Ensure that power and data traces are oriented correctly and that heatsinks are firmly seated to prevent thermal throttling.

Step 3 — Populate memory: Install DDR4 memory modules into the 16 memory slots as recommended by the platform’s memory population guidelines. Use modules of compatible speed and type to maximize memory bandwidth and stability. Verify that all modules are properly seated and recognized in the BIOS/UEFI during POST.

Step 4 — Configure storage: Connect available SATA and SAS drives to the onboard controllers. If you plan to boot from an OS drive, insert an NVMe or SATA SSD into the M.2 slot and configure boot priority in the BIOS. Set up any required RAID or storage pools using the system’s management tools or your preferred operating system’s storage utility.

Step 5 — Networking and management setup: Attach network cables to the onboard RJ-45 ports for data and management traffic. Power on the system and enter the BIOS/UEFI to configure core settings, including boot order, memory timings, and processor performance profiles. Initialize the remote management features provided by the ASPEED AST2500, enabling IPMI access and console redirection as needed. Update firmware to the latest versions to ensure security and compatibility with your software stack.

Step 6 — Operating system installation: Install your preferred operating system or hypervisor onto the OS drive (via M.2 or a boot drive connected to SATA/SAS). Install essential drivers and guest virtualization tools if applicable. Configure networking, storage, and security settings for a production-ready environment. After OS installation, apply standard hardening steps and set up monitoring to track temperatures, fan speeds, and system health metrics.

Step 7 — Validation and maintenance planning: Run POST diagnostics and verify that all components are detected by the system. Validate network connectivity, storage performance, and remote-management functionality. Establish a routine maintenance plan, including firmware updates, driver patches, and backup strategies, to sustain reliability in a production datacenter setting.

Frequently asked questions

• Q: How many CPUs does the ASRock Rack 3U8G+/C621 Barebone System support? A: It supports 2 processors (dual-processor configuration) using the Intel C621 chipset for scalable computing power.
• Q: How many memory slots does it have and what memory type is used? A: It includes 16 memory slots for DDR4 SDRAM, supporting DDR4-2666/PC4-21300 memory modules to deliver ample bandwidth for virtualization and data-intensive workloads.
• Q: What storage options are available? A: The system provides Serial ATA/600 connections and a 12Gb/s SAS controller for flexible drives, plus 1 x M.2 interface for OS boot drives or acceleration use.
• Q: Does this barebone include remote management capabilities? A: Yes. The ASPEED AST2500 graphics processor enables remote management and console access, which supports monitoring, IPMI, and remote administration tasks.
• Q: Is this system suitable for data-center virtualization and storage workloads? A: Yes. The dual-processor design, 16 memory slots, and flexible storage support make it well-suited for virtualization clusters, database workloads, and scalable storage deployments in enterprise environments.
