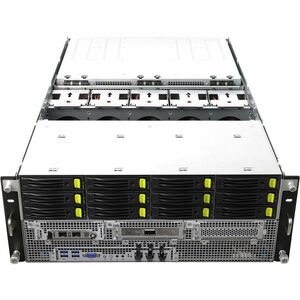

ASRock Rack 4U10G-ROME2/2T Barebone System – 4U Rack-Mountable Dual Processor Server

Engineered for data centers, virtualization, and large-scale storage deployments, the ASRock Rack 4U10G-ROME2/2T Barebone System delivers a robust foundation for enterprise workloads. This 4U rack-mountable barebone chassis is designed to maximize density, performance, and reliability while offering expansive I/O and flexible storage options. It’s the ideal platform for building high-capacity NAS/NAS-style storage servers, virtualization hosts, media servers, or edge-to-core deployments that demand both compute power and storage scalability. With dual CPU support, a generous memory footprint, and extensive drive bays, this barebone system grows with your infrastructure needs, allowing you to scale without frequent hardware refreshes.

• 4U rack-mountable chassis with 14 x 3.5" drive bays provides enormous storage capacity and straightforward expansion for HDDs and enterprise SSDs, making it perfect for large NAS, video surveillance, or data-center storage arrays.
• Supports 2 processors in the Socket LGA-4094 configuration, enabling powerful multi-threaded workloads, virtualization, and heavy compute tasks in a compact rack unit footprint.
• DDR4 SDRAM support with DDR4-3200 (PC4-25600) memory and up to a total of 32 memory slots, delivering ample RAM headroom for memory-intensive applications, virtualization, and large databases.
• Storage versatility includes NVMe RAID support and a Serial ATA controller, combining fast NVMe performance with reliable SATA storage options for tiered storage architectures and data protection strategies.
• Integrated management and graphics provided by the ASPEED AST2500 4 GB graphics engine, enabling robust out-of-band management, remote administration, and smooth management of the server from a console or IPMI-enabled interface for uptime and ease of maintenance.

Technical Details of ASRock Rack 4U10G-ROME2/2T Barebone System

• Chassis form factor: 4U rack-mountable barebone system designed for dense data-center deployments
• CPU support: 2 x Processor (Socket LGA-4094)
• Memory: DDR4 SDRAM DDR4-3200/PC4-25600; Maximum RAM Support as specified by the platform; 32.0 Total Memory Slots
• Storage controller: NVMe RAID Supported, Serial ATA Controller for SATA devices
• Graphics and management: ASPEED AST2500 4 GB Graphics for remote management and console output
• Drive bays: 14 x 3.5" bays for high-capacity storage configurations
• Networking: Integrated networking features suitable for demanding data-center workloads

how to install ASRock Rack 4U10G-ROME2/2T Barebone System

• Plan your hardware configuration: Decide on the CPU options, memory allotment, and drive layout based on your workload. Ensure cooling and power supply requirements align with your rack environment.
• Install processors: Open the chassis, locate the LGA-4094 socket(s), apply thermal interface material as required, and securely seat both processors. Follow static-safe handling procedures throughout the installation.
• Populate memory: Install DDR4 DIMMs in the appropriate channels and slots to maximize performance and RAM capacity. Verify proper seating and balance across channels to achieve optimal memory interleaving for dual-CPU operation.
• Configure storage: Install 3.5" drives into the 14 bays, or populate NVMe devices where supported by the backplane or PCIe slots. Connect SATA cables to the SATA controller if you’re using SSD/HDD hybrids, and plan your RAID configuration as needed.
• Connect management and power: Attach the system to a power source with appropriate rails, connect network cables, and power up. Use the ASPEED AST2500 management interface to configure IPMI, remote access, and monitoring settings, then install your operating system or hypervisor via remote console or local boot media.
• Install and bootstrap OS: Boot from your chosen installer media, follow the platform-specific guidance for OS deployment, and apply any required drivers or firmware updates to ensure full compatibility with processors, memory, and storage.

Frequently asked questions

• Q: What is the primary use case for the ASRock Rack 4U10G-ROME2/2T Barebone System?

  A: It is designed as a high-density, dual-processor 4U server chassis ideal for storage-centric workloads, virtualization hosts, and data-center applications that require substantial expandability and robust management capabilities.

• Q: How many processors can it accommodate?

  A: The system supports 2 processors in the Socket LGA-4094 configuration, enabling strong multi-core performance for demanding workloads.

• Q: How many drive bays are available, and what storage options are supported?

  A: The chassis provides 14 x 3.5" drive bays. It supports NVMe RAID configurations for high-speed storage and includes a Serial ATA controller for SATA devices, offering flexible storage tiering and capacity.

• Q: What kind of memory does this barebone system support?

  A: It uses DDR4 SDRAM with support for DDR4-3200 (PC4-25600) memory and up to 32 total memory slots, allowing large RAM configurations for virtualization, in-memory databases, and memory-intensive workloads.

• Q: Does the system include remote management capabilities?

  A: Yes. The ASRock Rack barebone includes an ASPEED AST2500 graphics engine (4 GB) for out-of-band management, enabling remote access, monitoring, and maintenance even when the primary OS is offline.
