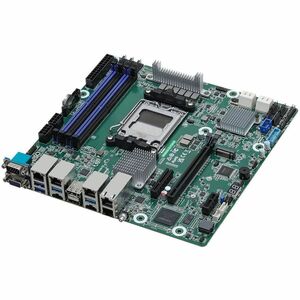

ASRock Rack B650D4U-2L2T/BCM Server Motherboard

Designed for compact, high-demand server deployments, the ASRock Rack B650D4U-2L2T/BCM combines enterprise-grade reliability with the latest AMD platform. Built around the AMD B650E chipset and Socket AM5, this Micro ATX motherboard supports a range of processors from Ryzen 5 to Ryzen 9 and is compatible with select EPYC configurations. It’s an ideal foundation for virtualization, storage servers, small business applications, and robust home labs, delivering solid performance in a compact 9.6" x 9.6" form factor. With four DDR5 memory slots offering up to 48 GB of high-speed RAM, four SATA interfaces for flexible storage, and a versatile set of display and networking options, this board brings scalable, enterprise-grade features to compact chassis.

• Compact, enterprise-ready motherboard: Micro-ATX form factor (9.6" x 9.6") fits in compact server chassis and rack-friendly enclosures while delivering robust features for dependable operation.
• Advanced AMD platform: AMD B650E chipset with Socket AM5 supports a range of processors from Ryzen 5 through Ryzen 9, and compatibility with select EPYC configurations for demanding workloads.
• Memory capacity and speed: Four DDR5 SDRAM DIMM slots support up to 48 GB of RAM, enabling faster caching, virtualization, and memory-intensive tasks with improved bandwidth and efficiency.
• Flexible storage and I/O: Four SATA interfaces provide flexible storage options for OS drives, data drives, and backups, complemented by onboard HDMI and DisplayPort for easy console access during setup and maintenance.
• Reliable connectivity: Gigabit Ethernet delivers stable network access for servers and workstations, with onboard video outputs simplifying initial setup and local diagnostics.

Technical Details of ASRock Rack B650D4U-2L2T/BCM

• Form Factor: Micro-ATX (9.6" x 9.6")
• CPU Socket: Socket AM5
• Chipset: AMD B650E
• Processor Support: EPYC, Ryzen 5, Ryzen 7, Ryzen 9
• Memory: 4 x DDR5 SDRAM DIMM slots; maximum total 48 GB
• Memory Type: DDR5 SDRAM; supports DIMM/UDIMM configurations
• Storage: 4 x SATA interfaces
• Networking: Gigabit Ethernet
• Video Output: HDMI and DisplayPort

How to install ASRock Rack B650D4U-2L2T/BCM

• Power down and unplug the system; remove the chassis cover and install the motherboard into a compatible Micro-ATX case, ensuring standoffs match the board holes.
• Install the CPU into the AM5 socket, apply appropriate thermal paste, and attach the CPU cooler; verify the CPU is seated correctly and fans are oriented for airflow.
• Insert DDR5 memory modules into the 4 DIMM slots, following recommended slots per module for optimal dual-channel operation; ensure modules click securely into place.
• Attach SATA drives or expansion storage as required using the four SATA ports; configure RAID or storage modes in the BIOS if needed.
• Connect power supply cables to the motherboard, including 24-Pin ATX and 8-Pin CPU power connectors; attach case fans, chassis LEDs, and front panel connectors as directed by your case manual.
• Power on and enter BIOS to configure boot order, enable virtualization features if needed, and update BIOS/firmware to the latest version for compatibility and security.

Frequently asked questions

• Q: What processors does the ASRock Rack B650D4U-2L2T/BCM support? A: It supports EPYC, Ryzen 5, Ryzen 7, and Ryzen 9 processors on the AM5 socket with the AMD B650E chipset.
• Q: How much RAM does this motherboard support? A: Up to 48 GB of DDR5 SDRAM across four DIMM slots (DIMMs can be configured as UDIMM where applicable).
• Q: How many SATA ports are available? A: Four SATA interfaces for OS drives, data storage, backups, and expansion needs.
• Q: What video outputs does it provide? A: Onboard HDMI and DisplayPort outputs for local display, maintenance, and console access.
• Q: What is the form factor of this board? A: Micro-ATX, measuring 9.6" x 9.6", suitable for compact server chassis and rack-mount setups.
