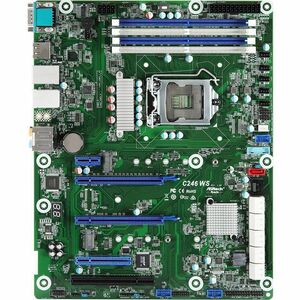

ASRock Rack C246 WS Server Motherboard

Designed for high-demand server workloads and enterprise-grade deployments, the ASRock Rack C246 WS is a feature-rich motherboard built around the Intel C246 chipset. With a Socket H4 LGA-1151 CPU interface, this ATX board supports Intel Xeon E-2100/E-2200 series processors to deliver dependable performance for data-centric tasks, virtualization, and multi-drive storage arrays. It combines robust memory capacity, expansive storage options, and flexible I/O to create a reliable foundation for small to medium-sized servers, workstations, and rack installations. Whether you’re building a compact home lab or a compact data center node, the C246 WS provides a proven platform built to handle demanding workloads while maintaining efficiency and manageability.

• Server-grade performance with Intel C246 chipset and Xeon E-series support. Designed for reliability in professional environments, the C246 WS leverages the Intel C246 chipset to optimize I/O, storage, and power efficiency while supporting Intel Xeon E-2100/E-2200 processors for dependable compute power.
• Memory capacity and layout that's ready for business. It offers up to 32 GB of DDR4 SDRAM across four DIMM/SoDIMM slots, delivering solid multitasking performance for virtualization, databases, and heavy workloads without sacrificing stability.
• Extensive storage options for large-scale data needs. With 12 SATA interfaces, you can configure sizable storage arrays, implement RAID configurations, and scale storage capacity to meet growing data demands.
• Flexible video and networking options for versatile deployments. Onboard HDMI and DisplayPort provide video output for local administration or low-profile display needs, while Gigabit Ethernet ensures reliable network connectivity for management and data transfer.
• Compact ATX form factor with enterprise-class reliability. The ATX design integrates easily into standard chassis and server racks, offering expandability and a solid foundation for enterprise workloads with a focus on durability and long-term support.

Technical Details of ASRock Rack C246 WS Server Motherboard

• Chipset: Intel C246
• CPU Socket: LGA 1151 (Socket H4)
• Form Factor: ATX
• Processor Support: Intel Xeon E-2100/E-2200 Series Processors
• Memory: Up to 32 GB DDR4 SDRAM across 4 DIMM/SoDIMM slots
• Memory Type: DDR4 SDRAM
• Storage: 12 x SATA Interfaces
• Video Outputs: HDMI and DisplayPort
• Networking: Gigabit Ethernet
• Notes: Specifications reflect general capabilities; check the official manual for exact memory population guidelines and BIOS/firmware requirements.

how to install ASRock Rack C246 WS Server Motherboard

• Prepare your workspace: Clear a static-free area and gather necessary tools. Ground yourself with an anti-static wrist strap before handling any motherboard components.
• Check compatibility: Verify that your chosen Intel Xeon E-2100/E-2200 series processor is compatible with the LGA 1151 socket and that your power supply and chassis support this ATX board.
• Install the CPU: Open the socket, align the processor with the designated orientation, insert gently, secure the retention mechanism, and apply appropriate thermal paste if your cooler requires it.
• Install memory modules: Insert up to four DDR4 modules into the DIMM/SoDIMM slots, following the motherboard’s recommended population order to maximize performance and stability.
• Mount the motherboard: Place the board into your ATX chassis, align with I/O shield, and secure with standoffs and screws. Route power, data, and cooling cables carefully to avoid obstructing fans or components.
• Connect storage and I/O: Attach SATA drives to the 12 SATA ports according to your storage plan. Connect display, USB, and network cables as needed for initial setup and management.
• Power on and configure: Power up the system and enter BIOS/UEFI. Configure boot order, storage mode (RAID/non-RAID), and memory timings if necessary. Update BIOS/firmware to the latest version supported by ASRock Rack to ensure compatibility with Xeon E-series CPUs.
• Install operating system and drivers: Install your chosen OS, then apply the required drivers for the Intel C246 chipset and any onboard components to ensure full functionality.

Frequently asked questions

• Q: What CPUs does this board support? A: Intel Xeon E-2100/E-2200 series processors, using the LGA 1151 (Socket H4) socket.
• Q: How much memory can I install? A: Up to 32 GB of DDR4 SDRAM across four DIMM/SoDIMM slots.
• Q: How many SATA ports are available? A: 12 SATA interfaces for storage and RAID configurations.
• Q: Which video outputs are provided? A: Onboard HDMI and DisplayPort outputs for local display and management tasks.
• Q: What is the form factor? A: ATX, suitable for standard towers, mini-tower, and many rack-mounted chassis with appropriate mounting hardware.
• Q: Is ECC memory supported? A: ECC support is not specified in the available specifications; verify with your memory vendors and BIOS documentation.
