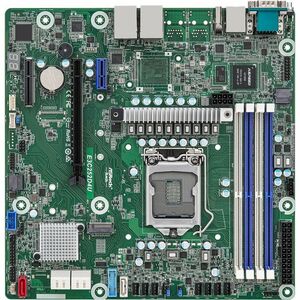

ASRock Rack E3C252D4U Server Motherboard - Intel C252 Chipset, LGA-1200, Micro ATX

Designed for compact, reliable, and scalable server builds, the ASRock Rack E3C252D4U combines enterprise-grade features with the versatility of a micro ATX form factor. Built around the Intel C252 chipset and LGA-1200 socket, this motherboard is optimized for Xeon E-2300 series CPUs and compatible Pentium processors, delivering solid performance for small data centers, home labs, and remote office deployments. It balances robust I/O, ample storage options, and efficient power management in a compact footprint, making it an ideal foundation for compact rack and mini-tower servers that demand uptime, expandability, and straightforward maintenance.

• High-density compact server platform: Micro ATX form factor (9.6" x 9.6") provides a space-saving footprint without sacrificing essential server-grade capabilities. Perfect for 1U and small-form-factor deployments where rack space is at a premium, yet performance remains critical.
• Powerful processor compatibility: Supports Intel Xeon E-2300 series processors and selected Pentium processors, leveraging the Intel C252 chipset for enterprise reliability and improved I/O throughput. This combination enables strong multi-core performance for virtualization, file services, and small business applications.
• Ample memory with essential speed: Four DIMM slots support DDR4 SDRAM up to 32 GB, enabling enough memory headroom for everyday server workloads, light virtualization, and database tasks. The use of UDIMM memory keeps a balance between cost, compatibility, and reliability.
• Extensive storage and I/O options: Six SATA interfaces provide flexible storage expansion for data, backups, and archival needs. Built-in HDMI offers convenient onboard video output for system setup and management in headless or local environments, while Gigabit Ethernet ensures reliable network connectivity.
• Built for reliability and easy maintenance: The E3C252D4U is designed with server-grade features to support continuous operation, straightforward installation, and durable performance in demanding environments. Its rugged design and chipset-focused architecture help reduce downtime and simplify management in small to mid-size deployments.

Technical Details of ASRock Rack E3C252D4U

• Chipset: Intel C252
• Socket: LGA-1200
• Form Factor: Micro ATX (9.6" x 9.6")
• Memory: 32 GB maximum DDR4 SDRAM, 4 x UDIMM slots
• Storage: 6 x SATA interfaces
• Networking: Gigabit Ethernet
• Video Output: HDMI
• Processor Support: Supports Intel Xeon E-2300 series and selected Pentium processors

How to install ASRock Rack E3C252D4U

Installing the ASRock Rack E3C252D4U is a straightforward process designed for reliability and ease of maintenance. Follow these high-level steps to build a solid server foundation in a compact chassis:

• Prepare the chassis: Ensure your chassis is clean, grounded, and compatible with a Micro ATX motherboard. Install standoffs aligned with the board’s mounting holes and verify that clearance around the processor, memory slots, and storage bays is sufficient for cooling and cabling.
• Install the CPU and cooler: Open the CPU socket latch, align the LGA-1200 CPU with the socket, and secure it. Apply an appropriate amount of thermal paste if your cooler requires it, then mount the heatsink or liquid cooling solution, ensuring firm, even contact for optimal cooling performance.
• Populate memory: Insert DDR4 UDIMMs into the four memory slots, ensuring they are fully seated. Consult supported memory configurations to maximize stability and utilize dual-channel or multi-channel modes as recommended by ASRock.
• Mount the motherboard and connect power: Place the motherboard into the chassis, align the I/O shield, and fasten it with screws. Connect the 24-pin ATX power connector and the appropriate CPU power connectors. If your board includes additional power rails or fan headers, connect those as well.
• Connect storage, graphics, and networking: Attach SATA drives to the six interfaces as required, connect the HDMI display for local management if needed, and link the network cable to the Gigabit Ethernet port. Route cables neatly to maintain airflow and reduce wear on connectors.
• Configure BIOS and install OS: Power on and enter the BIOS/UEFI to set boot order, enable any required virtualization features, and configure memory timings if necessary. Save settings, install your preferred operating system or server software, and apply any firmware updates provided by ASRock for this model.

Frequently asked questions

• What processors are supported? The ASRock Rack E3C252D4U supports Intel Xeon E-2300 series processors and selected Pentium processors, all leveraging the LGA-1200 socket and Intel C252 chipset for server-oriented performance.
• How much memory can I install? Up to 32 GB of DDR4 SDRAM across four UDIMM slots. This configuration is suitable for standard server workloads, light virtualization, and reliable file services.
• How many SATA drives can I attach? The motherboard provides six SATA interfaces, offering flexible storage configurations for OS, data, backups, and archival needs.
• Does it have built-in video output? Yes, the board includes an HDMI port for onboard display during setup or local management in headless environments.
• What is the form factor? The E3C252D4U is a Micro ATX motherboard, designed for compact servers and small form factor builds while delivering enterprise-ready capabilities.
